All-City

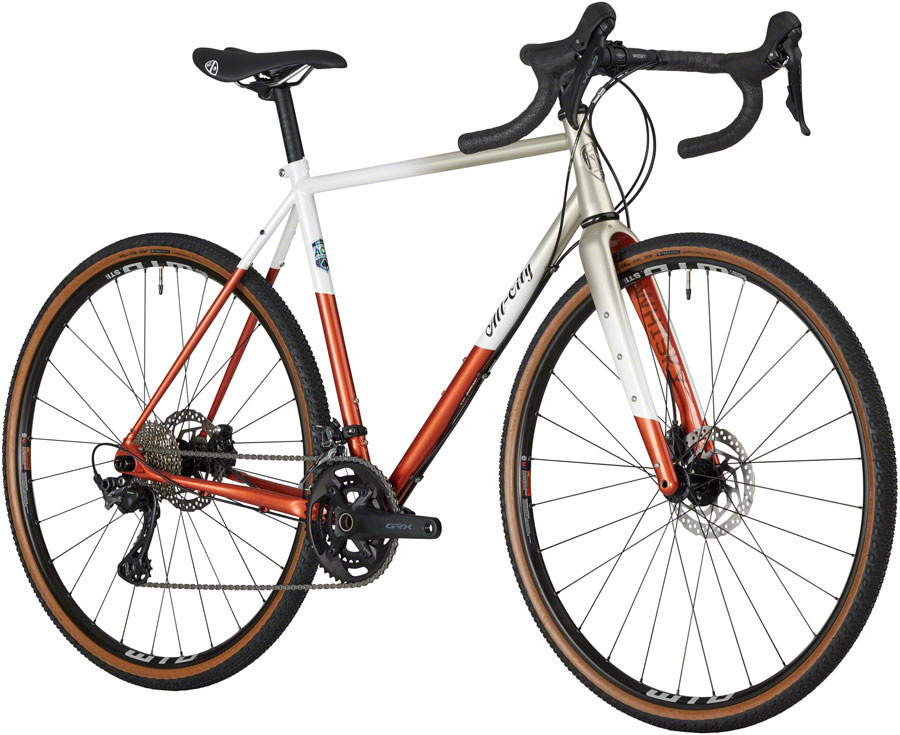

All-City Cosmic Stallion GRX

$4,299.00

In stock (1)

Could be called one of Bike and Brew's ultimate gravel bikes for chasing PRs and podiums on race day, and all the training rides that get you there.

Color:

Size:

Add to compare Add to wishlist

All-City Cosmic Stallion GRX — "Color: Toasted Marshmallow","Size: 46"

Description

LIVELY, SPIRITED, STABLE

The All-City Cosmic Stallion GRX is thoroughly modern and classically styled – all on a lightweight disc-brake frameset. With the latest development of fork-mounted cargo solutions, the Cosmic Stallion GRX brings uncluttered potential to gravel riders and beyond. From fast sprints to all-day epics, this race-ready steel machine sets a new standard for beauty and functionality.

Component	Specification
Frame	All-City A.C.E. Air-Hardened, Custom, Extruded steel
Fork	Whisky No. 9 CXLR
Crankset	Shimano FC-RX600, 46-30t
Bottom Bracket	Shimano BSA
Front Derailleur	Shimano FD-RX810
Rear Derailleur	Shimano RD-RX810
Cassette	Shimano CS-R7000, 11-spd, 11-32t
Chain	Shimano HG601-11
Headset	Cane Creek 40 Series
Brake Calipers	Shimano BR-RX400
Brake Levers	Shimano ST-RX600
Rotors	Shimano RT26, 160mm, 6-bolt, front and rear
Shifters	Shimano ST-RX600
Stem	Whisky No.7
Handlebar	Whisky No.7, 12° Flair
Grip	All-City Super-Cush with Locking Alloy All-City End Plugs
Saddle	DDK-5255
Seatpost	Whisky No.7
Front Hub	Novatec D791, 12x100mm, 28h
Rear Hub	Novatec D792, 12x142mm, 28h
Rims	WTB ST Light i23, 700c, 28h, Tubeless Ready
Tires	Teravail Cannonball 700 x 38 60tpi Light and Supple - Tan Sidewalls

*Specifications subject to change from manufacturer

Size	46cm	49cm	52cm	55cm	58cm	61cm
Head Tube Angle	70	71	71.3	72.2	72.2	72.2
Seat Tube Angle)	75	74.5	73.7	73.5	73.0	72.5
Top Tube Length)	510	530	545	560	580	610
Seat Tube Length	450	480	510	540	570	600
Chainstay Length	436	441	446	446	446	446
Bottom Bracket Drop	73	73	73	73	73	73
Fork Offset	45	45	45	45	45	45
Total Fork Length	395	395	395	395	395	395
Head Tube Length	95	110	124	149	173	198
Standover	744	767	790	818	844	872
Wheelbase	1005	1017	1028	1032	1047	1071
Stack	518	536	550	577	600	624
Reach	371	381	384	389	397	413
Handlebar Width	400	420	420	440	460	460
Stem Length	60	70	80	90	100	110
Crank Arm Length	165	165	170	170	175	175

Frame Specs

Frame Construction All-City A.C.E. Air-Hardened, Custom, Extruded steel
Fork Construction Whisky No.9 thru-axle, carbon blades, tapered carbon steerer tube, flat-mount disc brake
Rear Dropout Configuration All-City Signature Sliding 2-For-1 Dropout
Derailleur Hanger Replaceable derailleur hanger; '687' (FS2339)
Rear Hub Spacing 142 x 12mm; thru-axle; Ø12 x 167mm , TP=1.5, TL=12
Front Hub Spacing 100 x 12mm; thru-axle; Ø12 x 120mm , TP=1.5, TL=12
Rear Brake Flat Mount, 140mm to 160mm
Front Brake Flat Mount
Headtube 1 1/8" - 1 1/2" tapered
Steerer Tube Ø28.6mm
Crown Race Ø40mm
Stock Headset Upper (S.H.I.S) EC34
Stock Headset Lower (S.H.I.S) EC44
Seat Collar All-City Signature Brazed-On
Seatpost 27.2mm
Front Derailleur (Clamp) 28.6 Band Clamp
Max Chainring 1x: 52t max // 2x: 53/39t max // 3x: 52/39/30t max
Bottom Bracket 68mm English Threaded
Tire Clearance - Frame 700c x 42mm / 650b x 47mm
Tire Clearance - Fork 700c x 42mm / 650b x 50mm
Rigid Fork Spec 395mm Axle to Crown; 45mm offset
Bottle Mounts Frame Thee mounts, two inside front triangle, one under downtube
Rack Mounts Frame Yes
Rack Mounts Fork Yes
Fender Mounts Frame Yes
Fender Mounts Fork Yes
Other Features E.D. coated for durability and rust prevention
