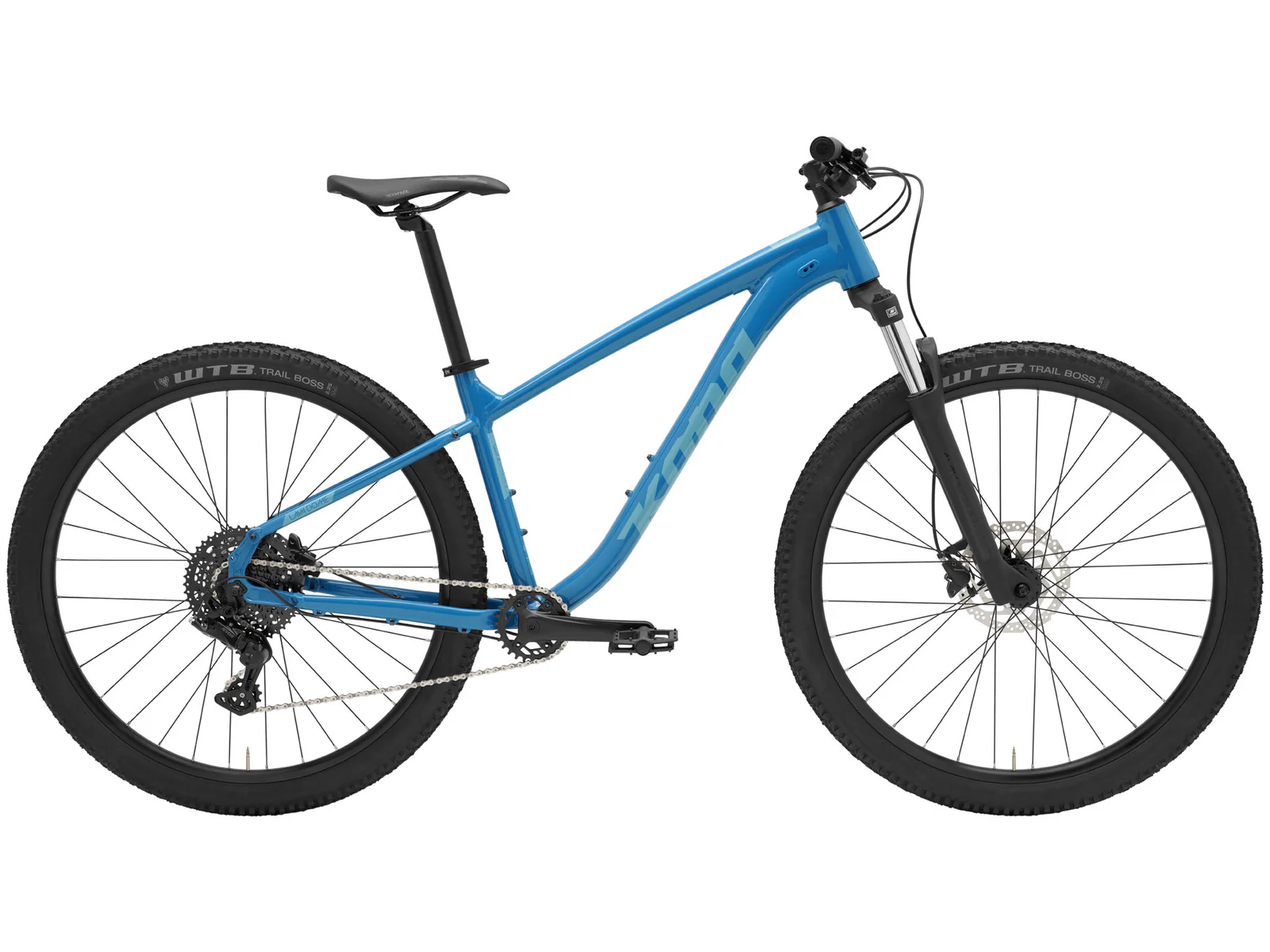

The all new Lava Dome is kind of like your best friend, but in bike form. It’s awesome in the dirt. It’s awesome to rally around town. It’s awesome poking around neighborhood singletrack, and it does it all in a dependable way. The all new Lava Dome features an easy-to-use 9-speed drivetrain with a clutch rear derailleur as well as sleek internal cable routing and dropouts. Available for smaller riders in a 26” wheeled XS version, a 27.5” wheel for size S, and 29” wheel for sizes M-XL. These strong wheels can accept up to a 2.6” tires–this bike is ready for everything in its path!

SPECS

FRAME: Kona 6061 Aluminum Butted
SIZES: XS, S, M, L, XL
REAR SHOCK: n/a
FORK: SR/Suntour XCM32 Coil 100mm
CRANKSET: Prowheel CHARM 30t 4-bolt 104mm / Length XS-S 165mm / M-XL 170mm
BOTTOM BRACKET: Feimin BSA 73
PEDALS: Kona JS2
CHAIN: KMC X9
CASSETTE: Microshift Advent 11-46t 9spd HG
CHAINGUIDE: n/a
FRONT DERAILLEUR: n/a
REAR DERAILLEUR: Microshift Advent
SHIFTERS: Microshift Advent
BRAKE CALIPERS: Shimano MT200
FRONT BRAKE ROTOR: Shimano 180mm 6B
REAR BRAKE ROTOR: Shimano 160mm 6B
BRAKE LEVERS: Shimano MT200
HEADSET: Feimin ZS44/ZS56
HANDLEBAR: Kona 31.8mm / Back 6º / Rise 20mm / Width XS-S 740mm / M-XL 780mm
STEM: Kona 31.8mm / Rise 7º / Length XS-M 40mm / L-XL 50mm
SEATPOST: Kona w/Offset 31.6mm / Length XS-M 350mm / L-XL 400mm
SEAT CLAMP: Kona Clamp 34.9mm
GRIPS: Kona Key Grip
SADDLE: Kona MTB
FRONT HUB: Joytech 9x100mm
REAR HUB: Joytech 10x135mm
SPOKES: Stainless 2.0mm Black
RIMS: Double Wall Aluminum
FRONT TIRE: WTB Trail Boss 2.25” (XS=26” WTB Ranger, S=27.5”, M-XL=29”)
REAR TIRE: WTB Trail Boss 2.25” (XS=26” WTB Ranger, S=27.5”, M-XL=29”)
PAINT COLOR: Gloss Prism Dragonfly w/ Putty Decals
All specifications are subject to change without notice.
