New

SURLY

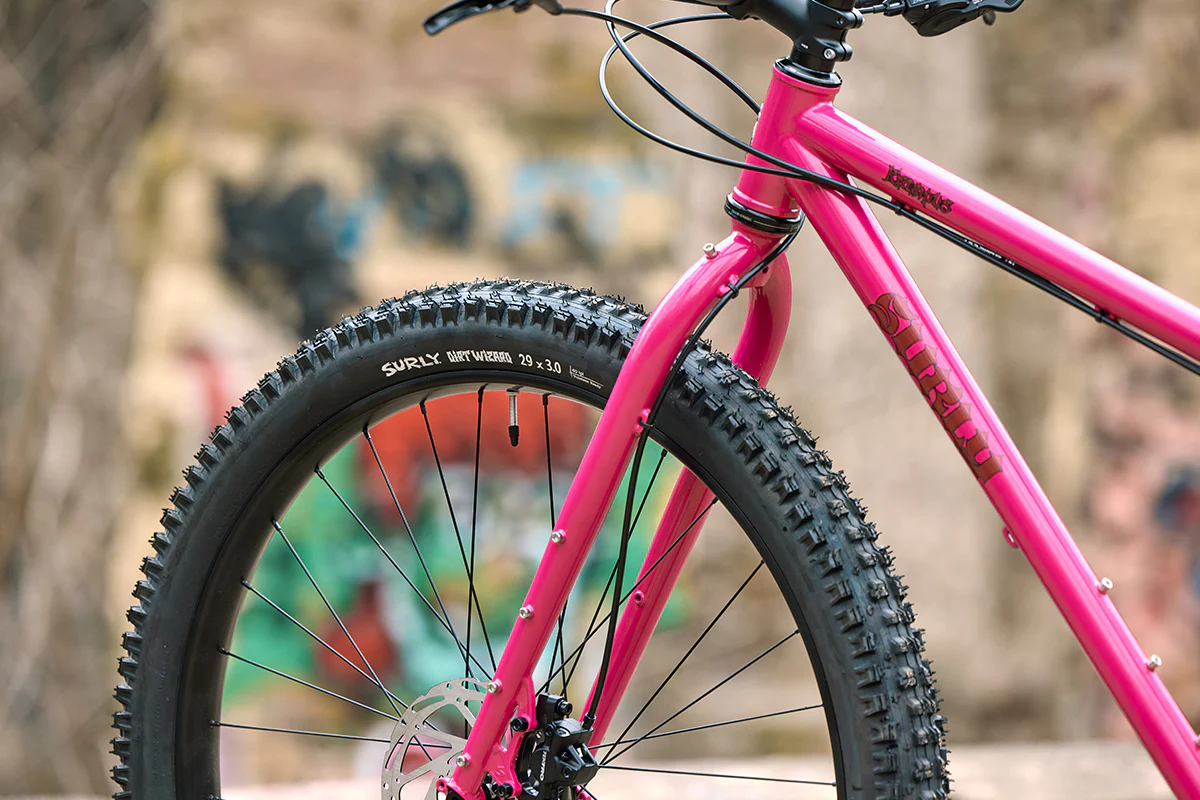

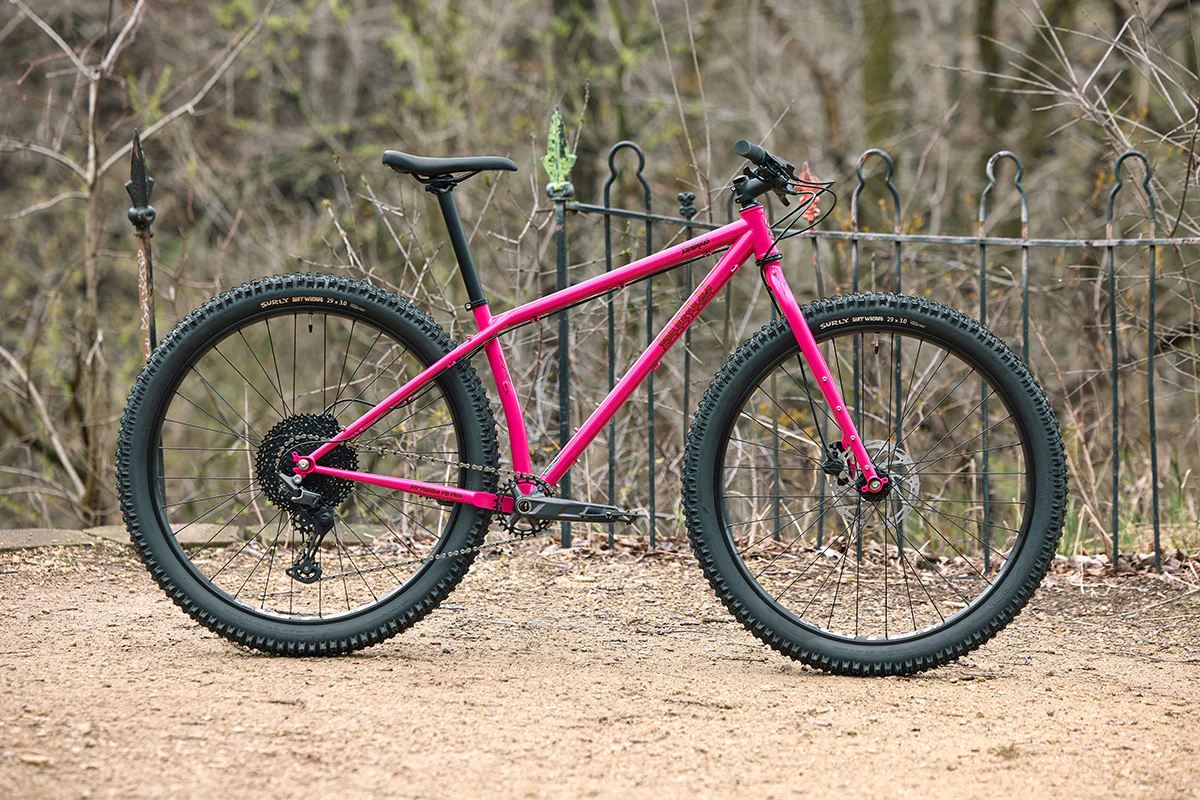

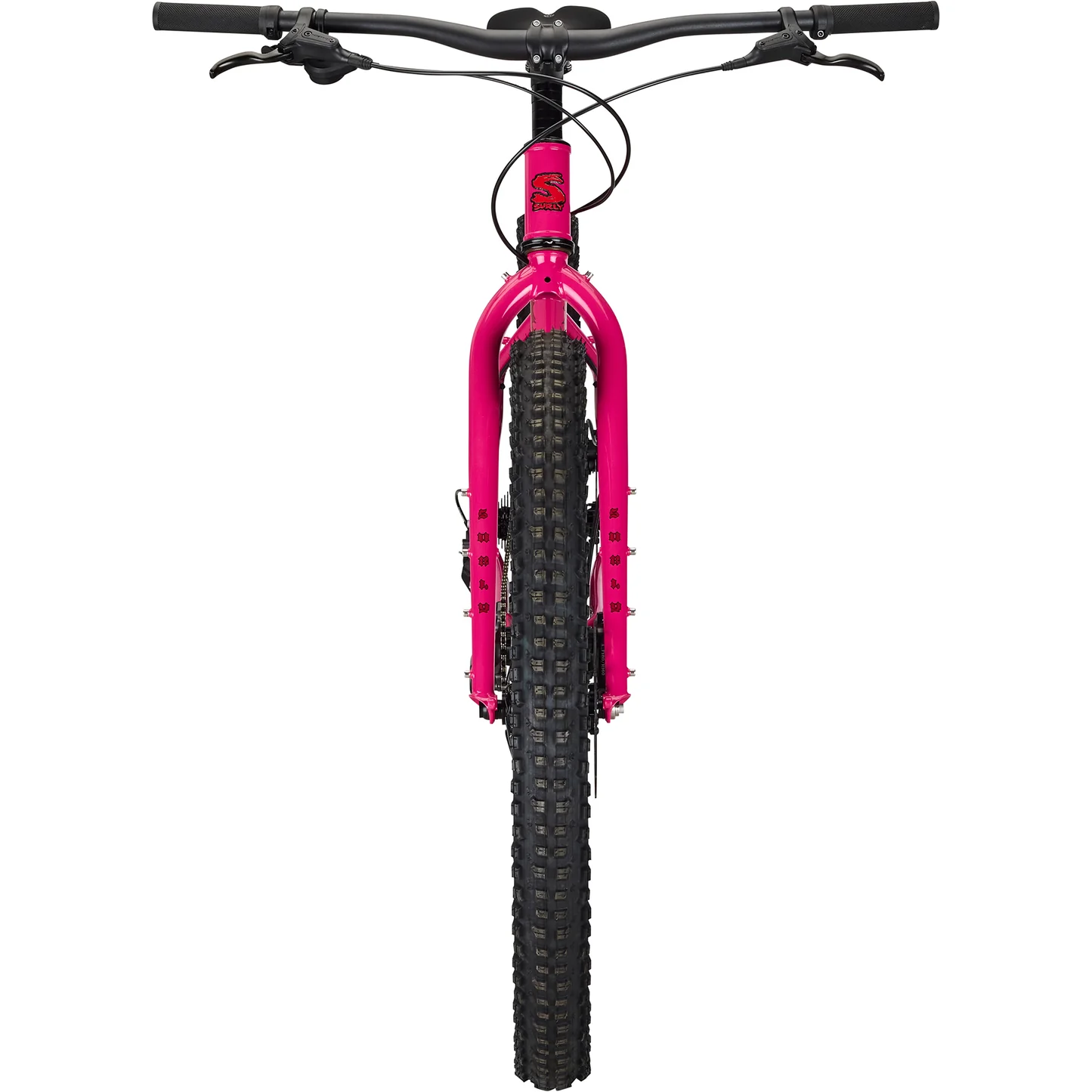

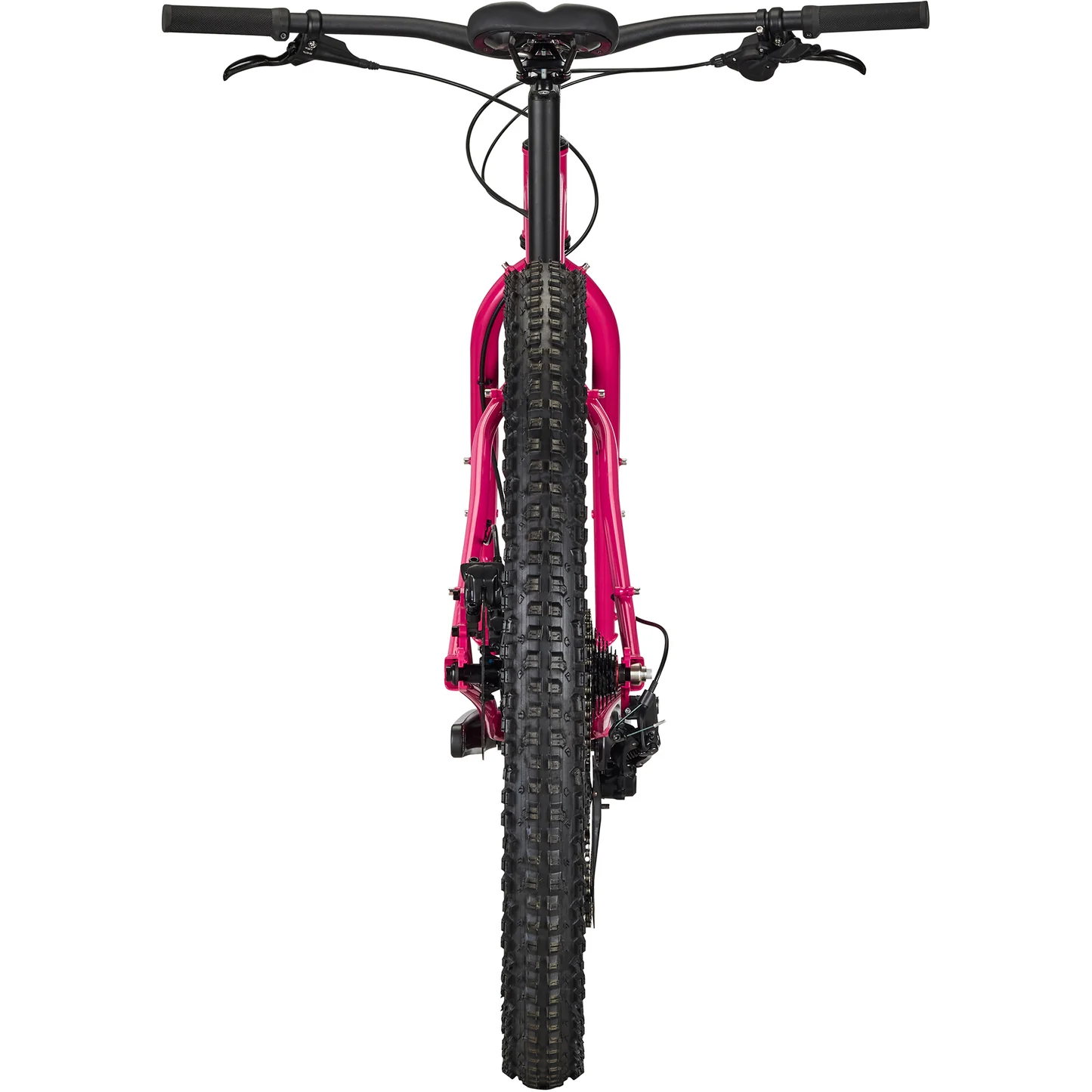

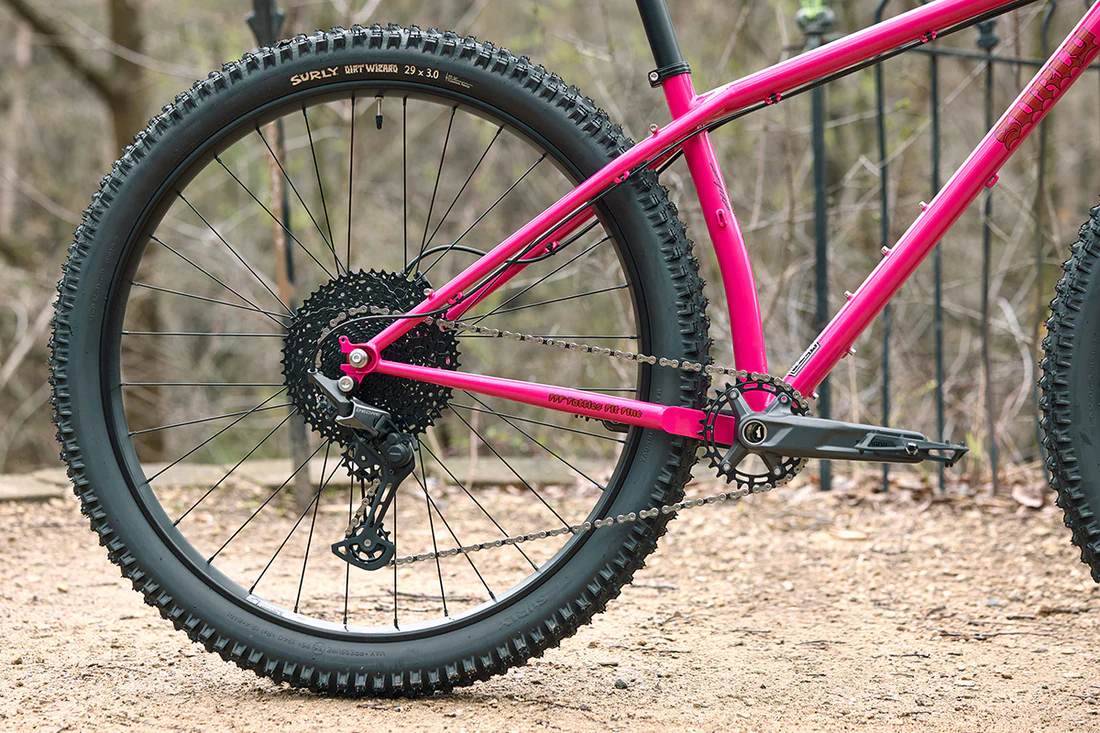

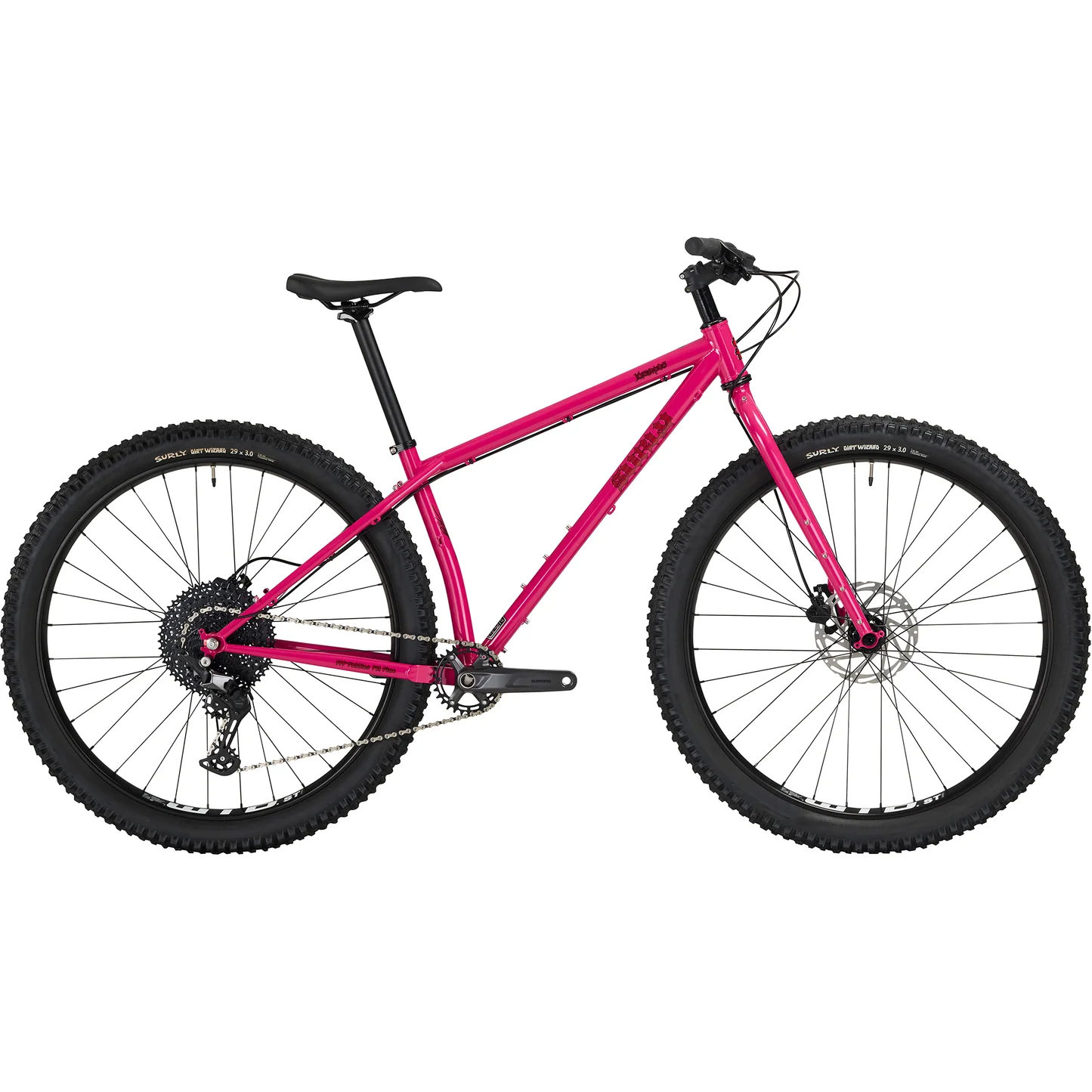

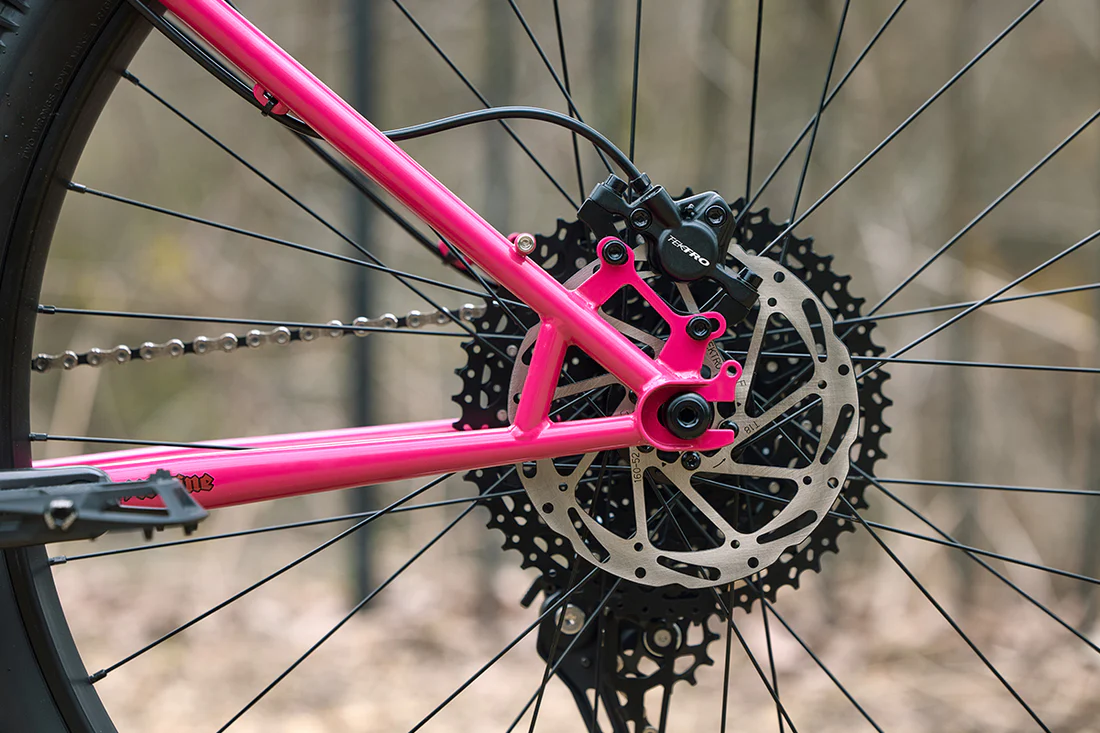

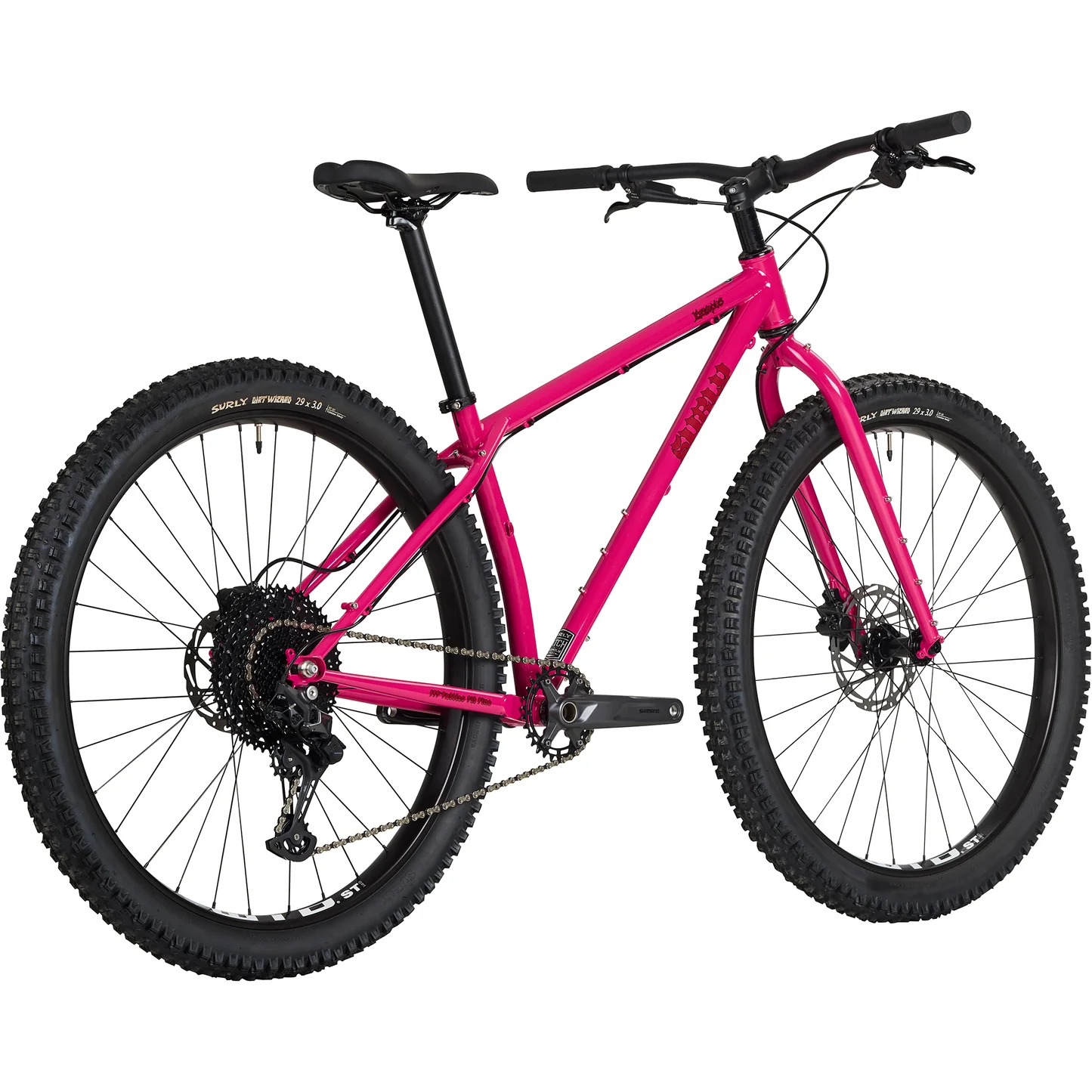

Krampus - Prickly Pear

$2,899.00

Out of stock online

In store: Check availability

SKU: 04-002342

The Krampus Rigid in Prickly Pear uses Surly’s durable Chromoly frame and 29+ tires to stay steady on rough trails. Its modern geometry, versatile hub spacing, and rigid, suspension‑corrected fork make it "choice" for trail rides and off‑road trips.

Description

The Krampus Rigid brings Surly’s signature steel construction together with high‑volume 29+ tires to create a trail bike that feels planted, playful, and ready for long days in the woods. Its long front end, short rear, and modern standards give it a lively, capable character on singletrack and bikepacking routes alike, while the Chromoly frame and suspension‑corrected fork offer durability and versatility for riders who like to tinker with setups or build from the parts bin.

Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
Clearance for 29" x 3" tires

Specs

Frameset

Frame: Surly Krampus - 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated

Color: Prickly Pear

Fork: Surly Krampus - 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated

Components

Seatpost Clamp: Surly Stainless, 33.1mm

Seatpost: Promax 30.9mm, 400mm

Stem: Promax DA-296, 31.8mm

Grips/Bar Tape: Velo Black

Saddle: WTB Volt Medium

Handlebar: Salsa Rustler

Drivetrain

Front Derailleur: N/A

Rear Derailleur: Shimano Deore M6100 SGS

Cassette: SunRace CSMZ800, 11-51t, 12spd

Chain: KMC X12 Anti-Rust

Crankset: Shimano MT511, 30T

Shifter: Shimano M6100 Deore

Brake Levers: Tektro HD-M275

Brake Calipers: Tektro HD-M275, 2 Piston

Bottom Bracket: Shimano MT501, BSA

Rotors: Tektro 180/160, 6-Bolt

Wheels

Front Tire: Surly Dirt Wizard 29 x 3", 60tpi, Tubeless Ready

Rear Tire: Surly Dirt Wizard 29 x 3", 60tpi, Tubeless Ready

Front Hub: Novatec 15x110mm, 32h

Rear Hub: Novatec 12x148mm, 32h

Spoke: 14G

Rim: WTB ST i40 TCS 2.0 29"

Weight: Complete Bike: 32 lb. 4 oz. for Medium

*Specifications are subject to change without notice

Geometry

Surly Geometry Chart

Size	Small	Medium	Large	X-Large
A. Effective Top Tube	585.0	610.0	635.0	660.0
B. Stand Over	770.0	797.0	825.0	853.0
C. Reach	404.0	426.0	448.0	470.0
D. Stack	593.0	602.0	612.0	621.0
E. Total Seat Tube Length	368.0	419.0	470.0	521.0
F. Headtube Length	90.0	100.0	110.0	120.0
G. Headtube Angle	69.0	69.0	69.0	69.0
H. Seat Tube Angle	73.0	73.0	73.0	73.0
I. BB Drop	65.0	65.0	65.0	65.0
K. Chainstay Length	435.0	435.0	435.0	435.0
L. Fork Length Axle to Crown	483.0	483.0	483.0	483.0
M. Fork Offset	47.0	47.0	47.0	47.0
N. Wheelbase	1087.0	1113.0	1138.0	1164.0
Crank Arm Length	165.0	170.0	170.0	175.0
Handlebar Width	750.0	800.0	800.0	800.0
Recommended Rider Height	162.0 - 173.0	170.0 - 183.0	180.0 - 190.0	188.0 - 198.0
Stem Length	70.0	70.0	70.0	80.0

Frame Specs

Wheel/Tire Sizes: 29 x 3.0"
Max Tire Outer Diameter: 29 x 3.0" (Different tire and rim combinations will result in different clearances. Depending on drivetrain configuration, tire clearance may be limited by the chain and not the frame. For suspension fork tire clearance, please reference the fork manufacturer's website.)
Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Suspension Fork Length (Travel): Max. Suspension fork length: 550 x 51mm (29+ 120mm) (Suspension fork length listed at full extension, not at sag)
Rigid Fork Length: 483mm
Fork Offset: 47mm
Axle to Crown: 483mm
Rear Spacing: "Gnot-Boost" 145mm; 12 x 142mm or 12 x 148mm (Surly axle included) / 10 x 135mm with Surly 10/12 Adapter Washers (not included)
Rear Brake (Rotor): Disc - 51mm I.S. (203mm max rotor)
Front Brake (Rotor): Disc - 51mm I.S. (203mm max rotor)
Headset - Upper: ZS44/28.6
Headset - Lower: EC44/30
Front Spacing: 15 x 110mm
Steerer Tube: Ø28.6mm (1-1/8")
Crown Race: Ø30mm (1-1/8")
Stem Clamp: Ø28.6mm (1-1/8")
Seatpost: Ø30.9mm
Dropper Post Compatible: Yes
Seatpost Clamp: Ø33.1mm
Front Derailleur Clamp: (Ø34.9mm)
Front Derailleur Type: High direct mount top-pull (Ø34.9mm); 26mm offset adapter (not included) for 142 or 135mm rear hub spacing; 29mm offset adapter (not included) for 148mm rear hub spacing
Bottom Bracket: 73mm threaded (1.37" x 24TPI)
Crankset (Max Ring): 1x (Mtn): 28T / 1x (Boost): 30T / 2x (Boost): 24/36T (Listed chainring clearance is worst-case scenario. Clearances vary widely depending on components and configurations)
Bottle Mounts: 1 Standard + 1 Three-Pack
Rear Fender Mounts: Yes
