Special order any Bassi Frameset at Bike and Brew. Get in touch, HERE.

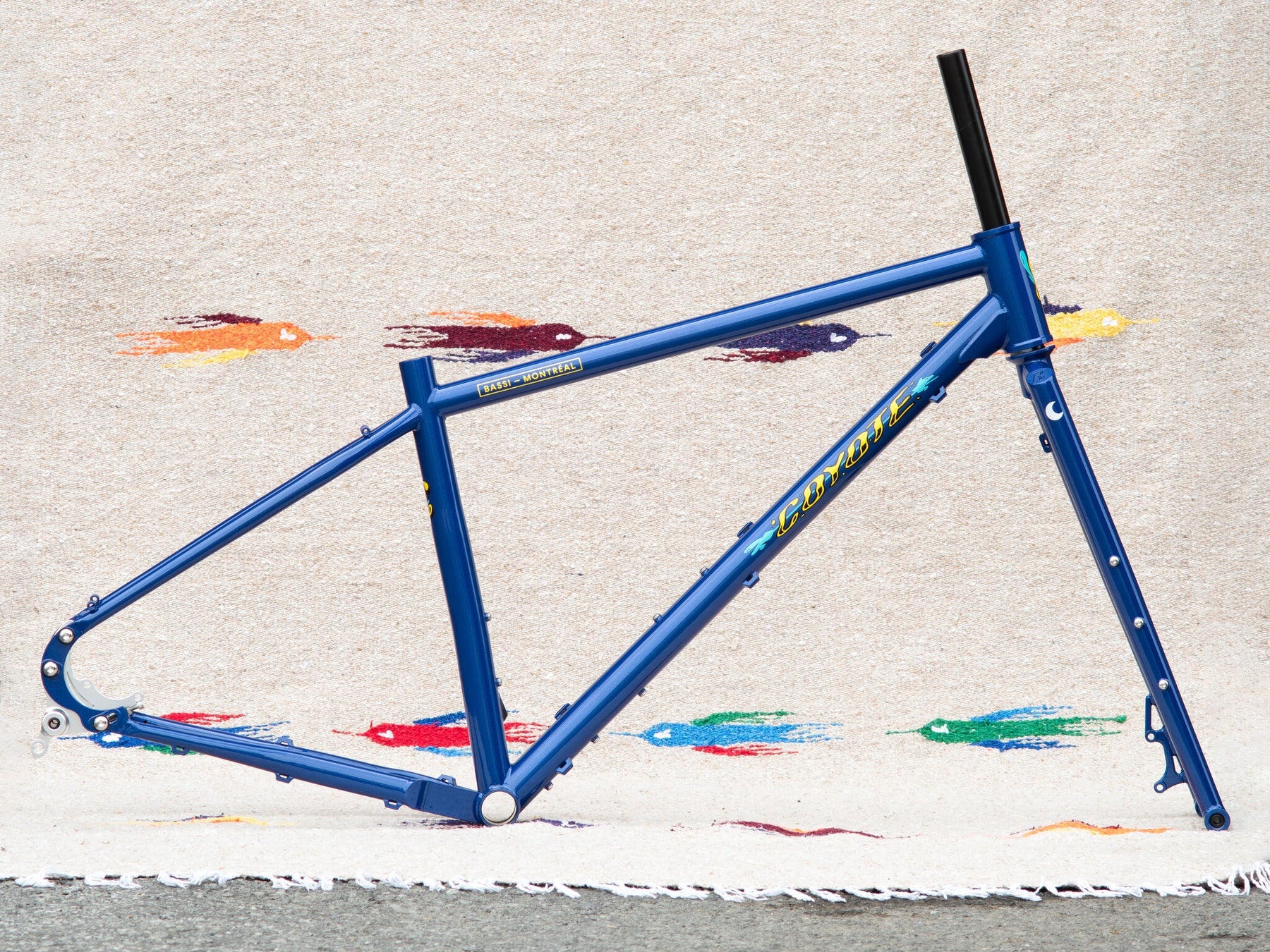

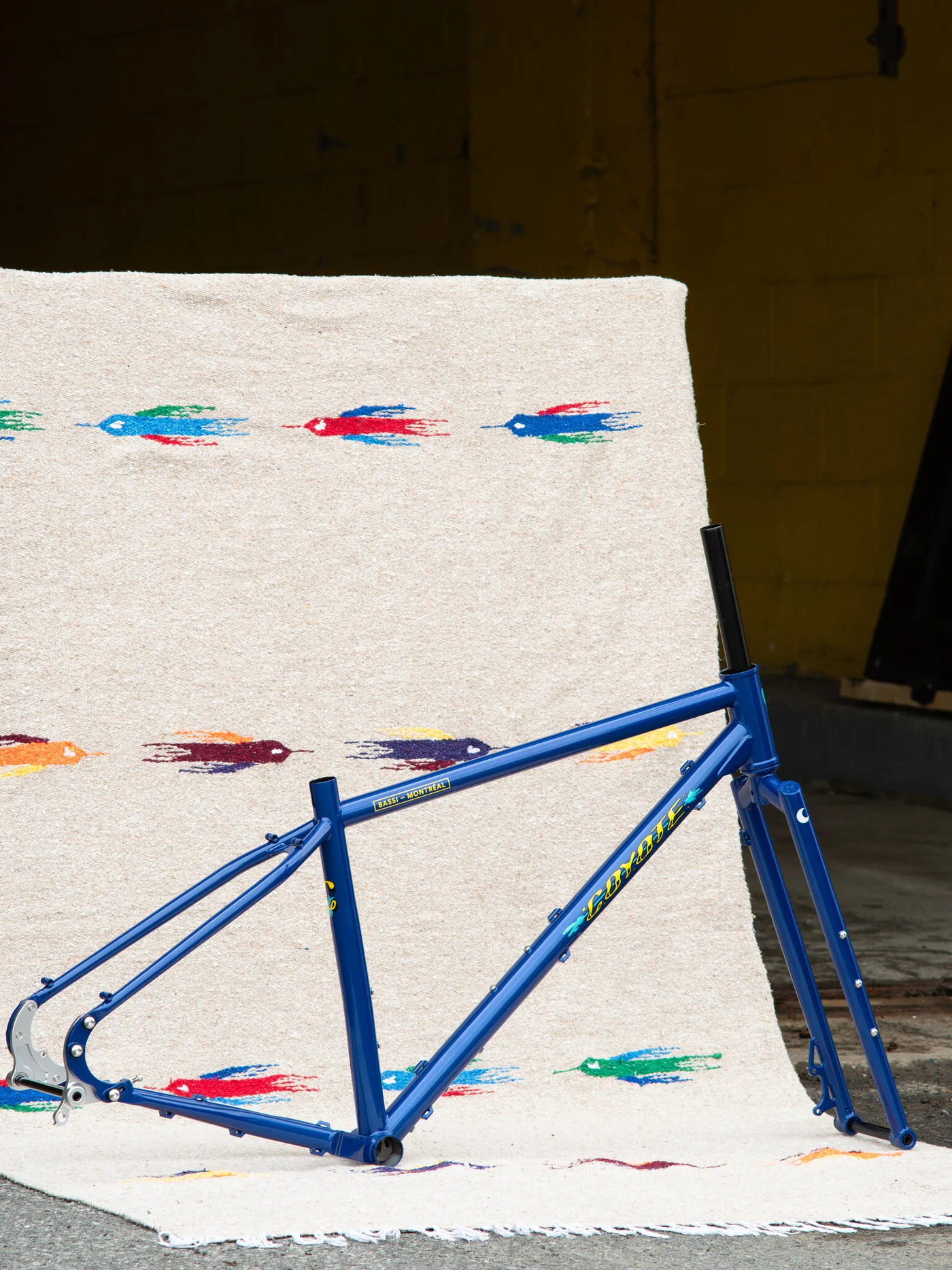

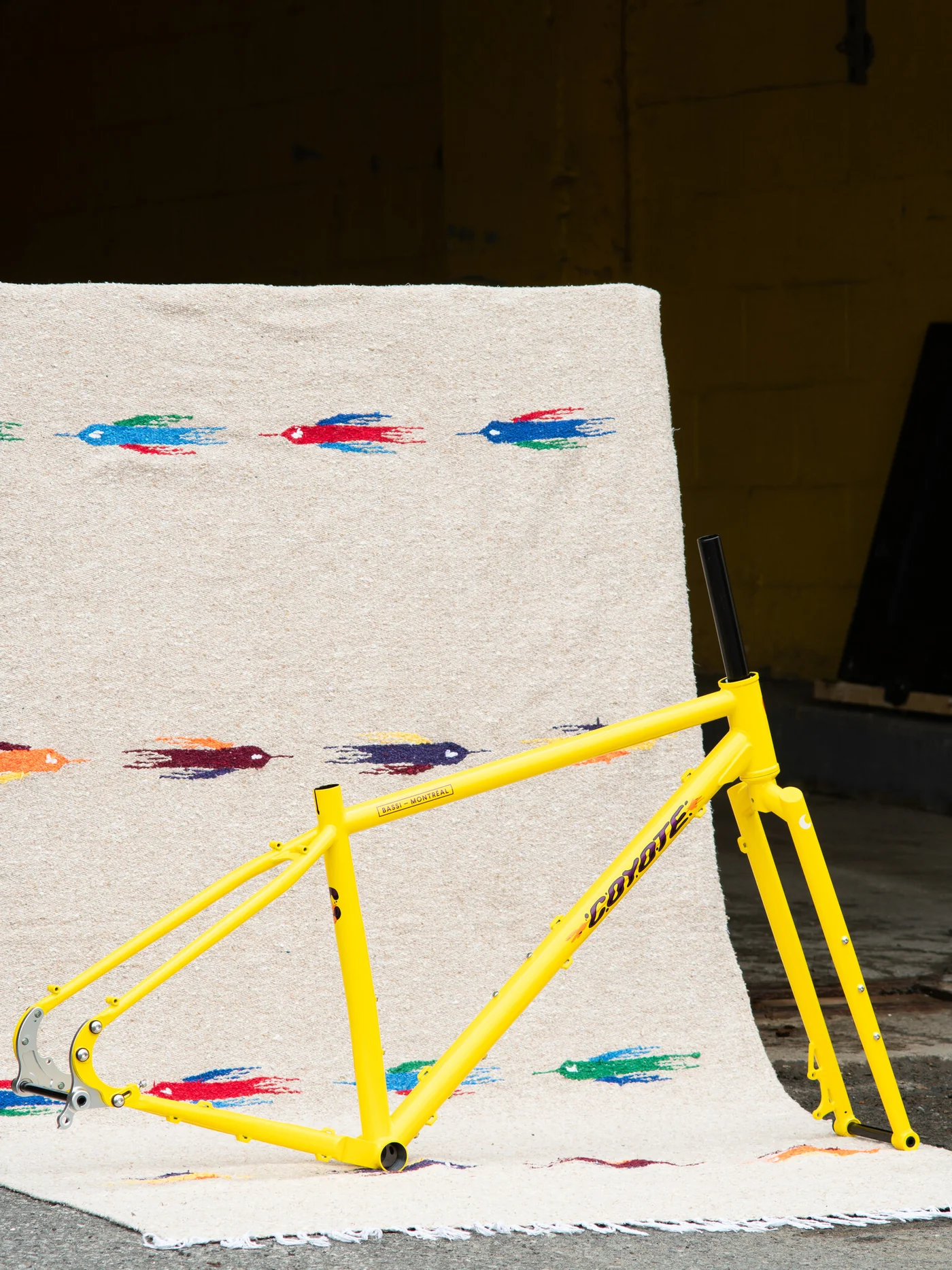

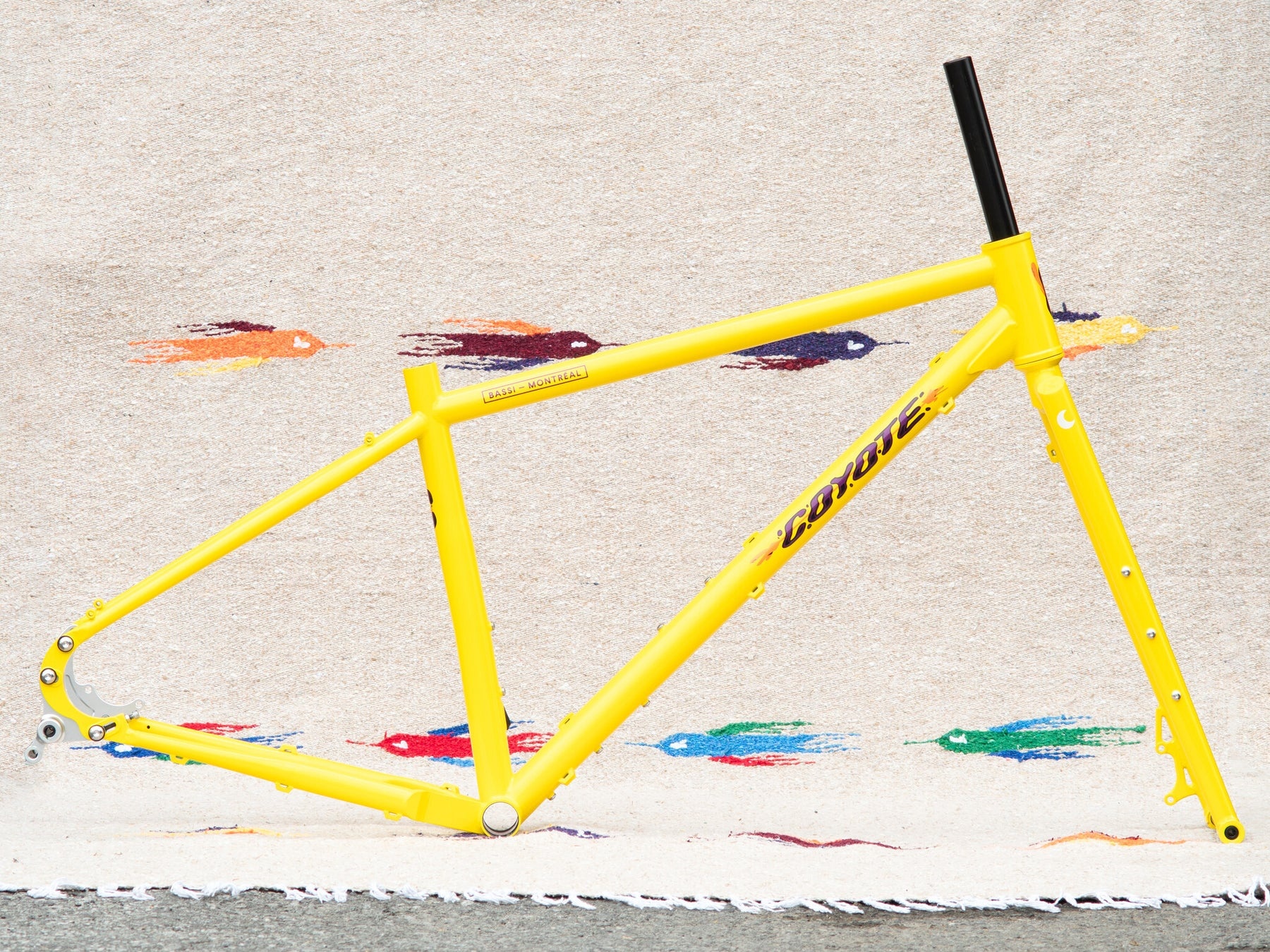

Built for everything from remote bikepacking routes to local singletrack adventures, the Bassi Coyote is a versatile steel all-terrain frameset designed to balance stability, climbing efficiency, and responsive trail handling. Whether set up with the included rigid fork or a 120mm suspension fork, it adapts easily to a wide range of riding styles, making it an excellent choice for riders who want one bike for exploration, touring, and everyday off-road fun.
Features
- Durable 4130 chromoly steel frame and fork construction.
- Designed for off-road touring, bikepacking, trail riding, and backcountry exploration (not MTB rated).
- Compatible with either the included rigid fork or a 120mm front suspension fork.
- Flexible drivetrain options, including single-speed or wide-range geared setups.
- Agile, balanced geometry that performs well on climbs, rough terrain, and technical descents.
- Generous cargo-carrying capability with multiple bottle, rack, and fork-mount eyelets.
- Boost spacing front and rear for modern wheel compatibility.
- Includes front and rear thru-axles.
- Clearance for up to 27.5 x 3.0" tires.
Specs
- Frame Material: 4130 Chromoly steel
- Fork Included: Yes, rigid steel fork
- Headset Standard: ZS44/EC44 (headset not included)
- Fork Spacing: 110mm Boost, 15mm thru-axle
- Rear Spacing: 148mm Boost, 12mm thru-axle
- Brake Mount: I.S. disc

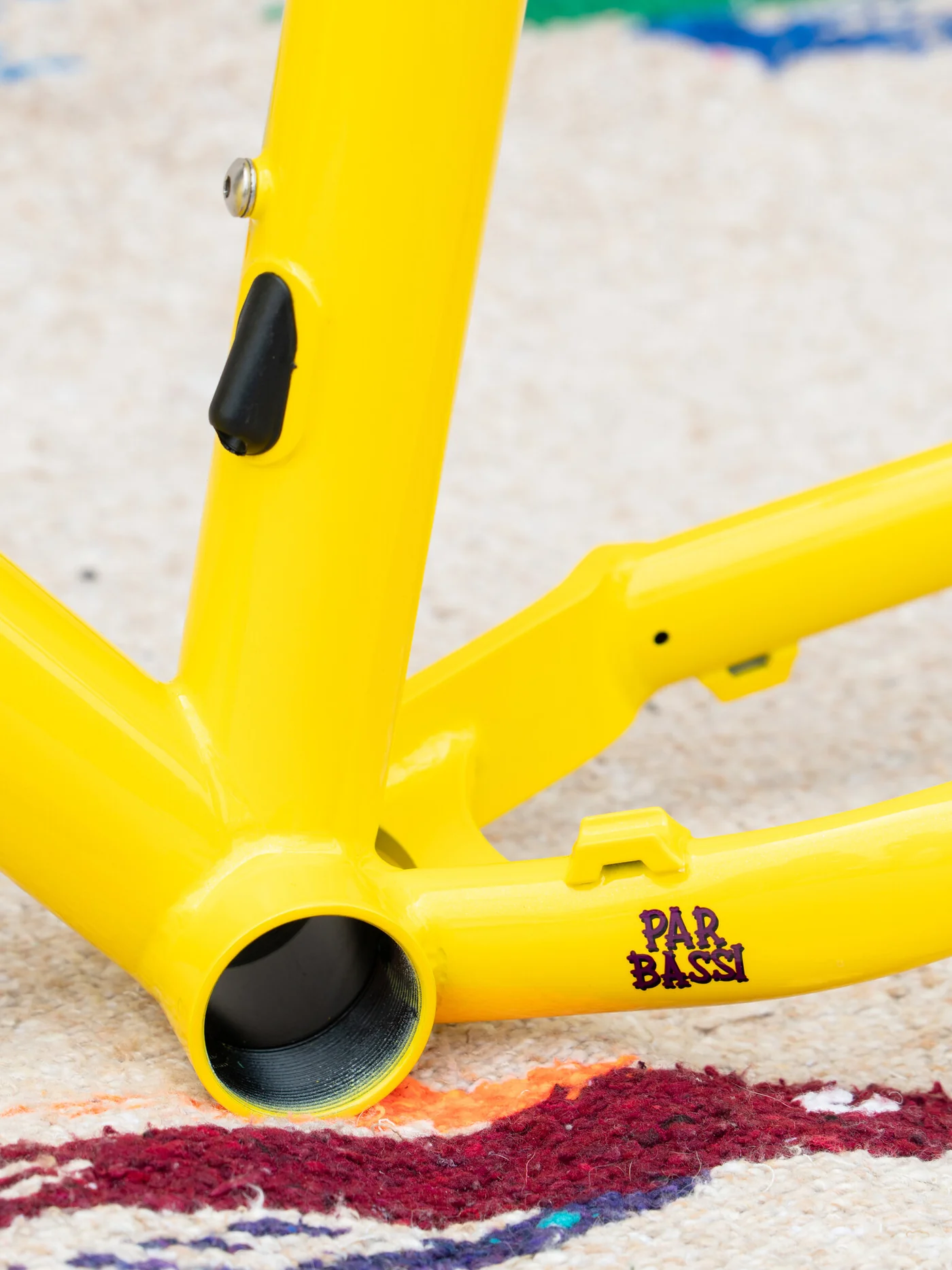

- Bottom Bracket: 73mm BSC threaded
- Maximum Chainring Size: 32T (1x drivetrain)
- Seatpost Diameter: 30.9mm
- Seatpost Collar Diameter: 33.1mm
- Bottle Mounts: Two double mounts and one triple mount on frame; two triple mounts on fork
- Rack Mounts: Rear rack eyelets included
- Suspension Compatibility: Rigid or 120mm front suspension fork
- Maximum Tire Clearance: 27.5 x 3.0"
- Available Sizes: Small (14.5"), Medium (17.5"), Large (19.5")
Geometry
| SIZE |
Small |
Medium |
Large |
| Seat tube (c-t) |
14.5" |
17.5" |
19.5" |
| Effective top tube |
574 |
603 |
635 |
| Head tube angle |
68.5 |
68.5 |
68.5 |
| Seat tube angle |
74 |
74 |
74 |
| Chainstay |
425 |
425 |
425 |
| BB drop |
50 |
50 |
50 |
| Stack |
588 |
603 |
612 |
| Reach |
405 |
430 |
460 |
| Wheelbase |
1094 |
1125 |
1158 |
| Rake |
51 |
51 |
51 |
| Fork length |
483 |
483 |
483 |
| Tire clearance |
27.5 x 3" |
27.5 x 3" |
27.5 x 3" |
