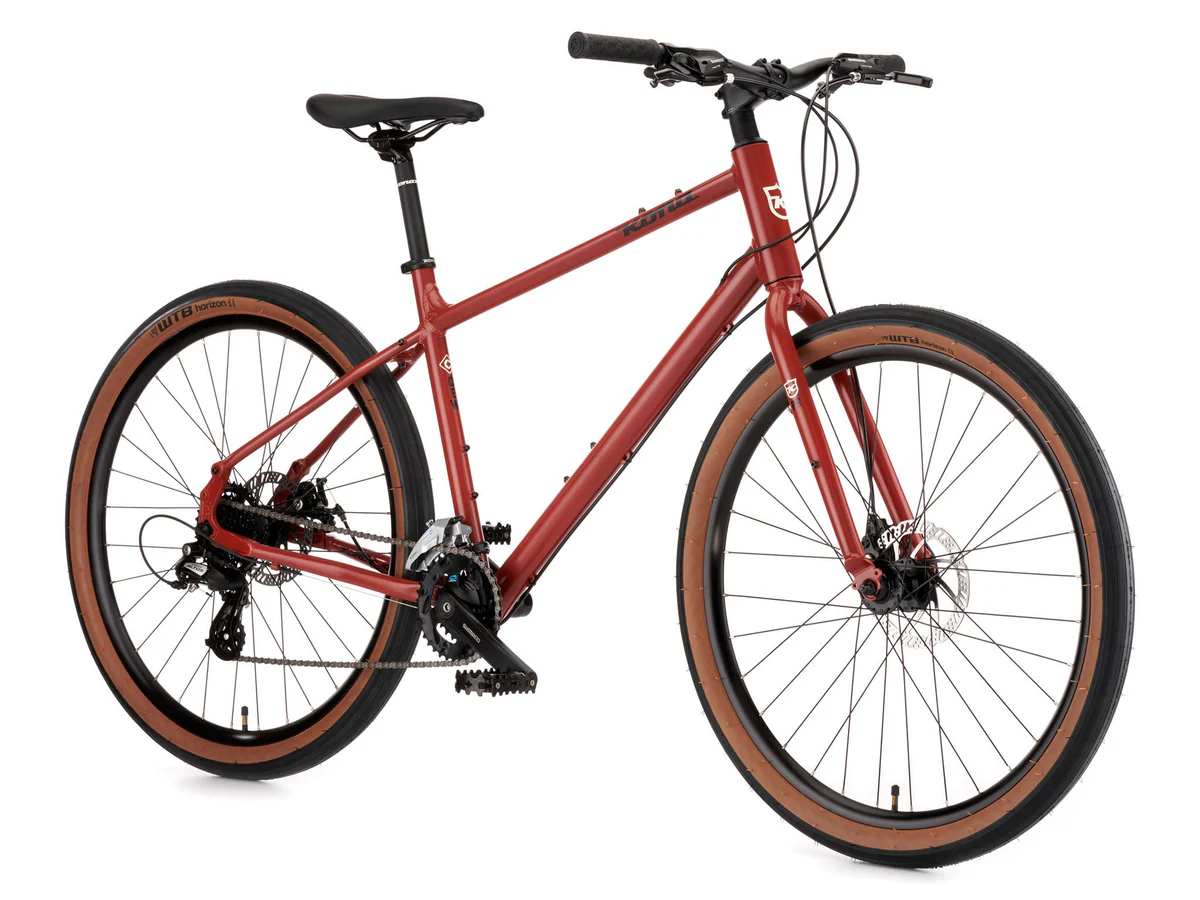

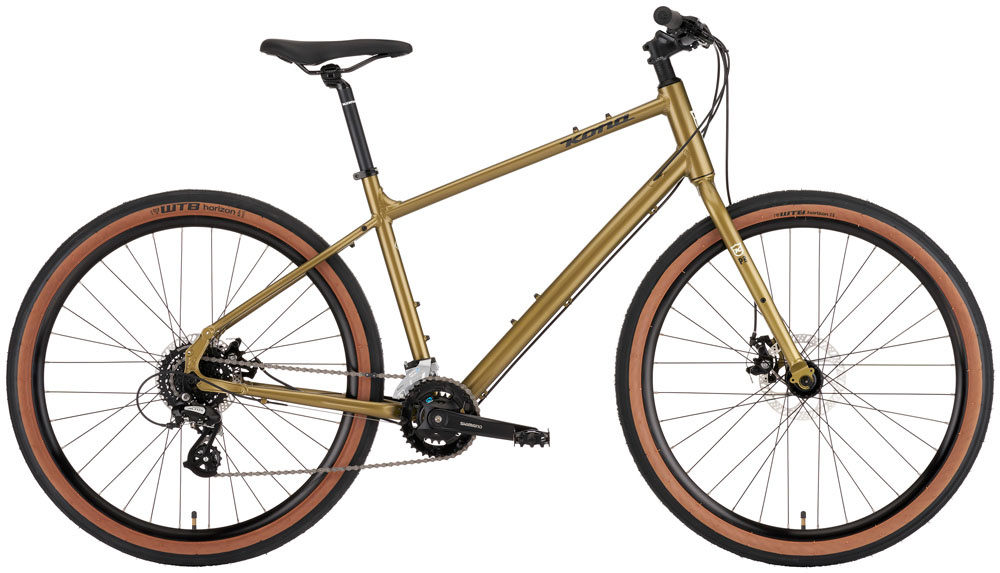

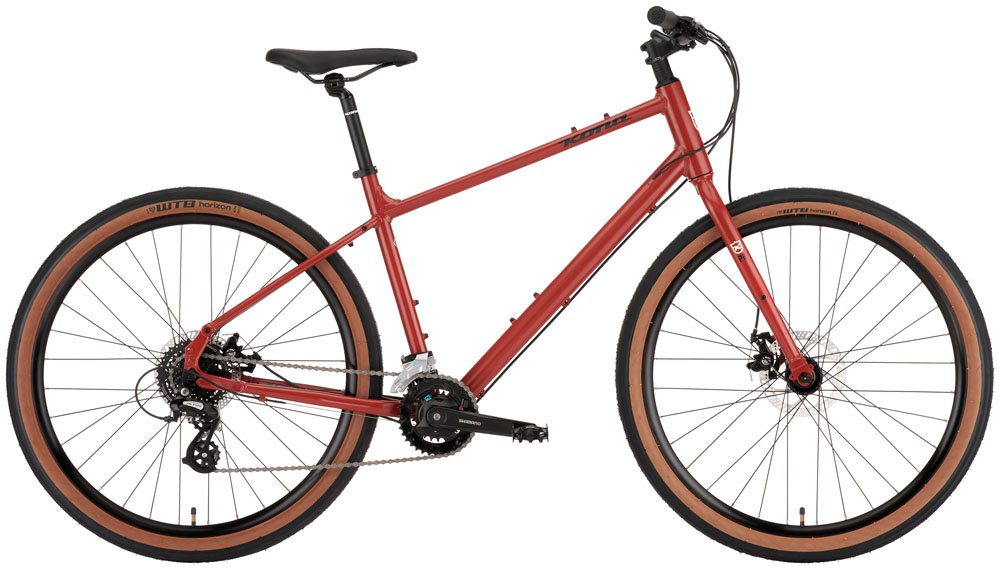

The Dew is our classic all-around commuter/townie option for someone looking for an affordable, comfortable ride. The Dew is an efficient bike that features a drivetrain with a broad gear range and integrated brake and shifter levers. It’s available in two colors so you can pick the bike that best suits your style. Equal parts functional and fun, the Dew is at home whether you’re hopping curbs on urban rides, cruising the bike paths, or rallying to the local pub.

SPECIFICATIONS

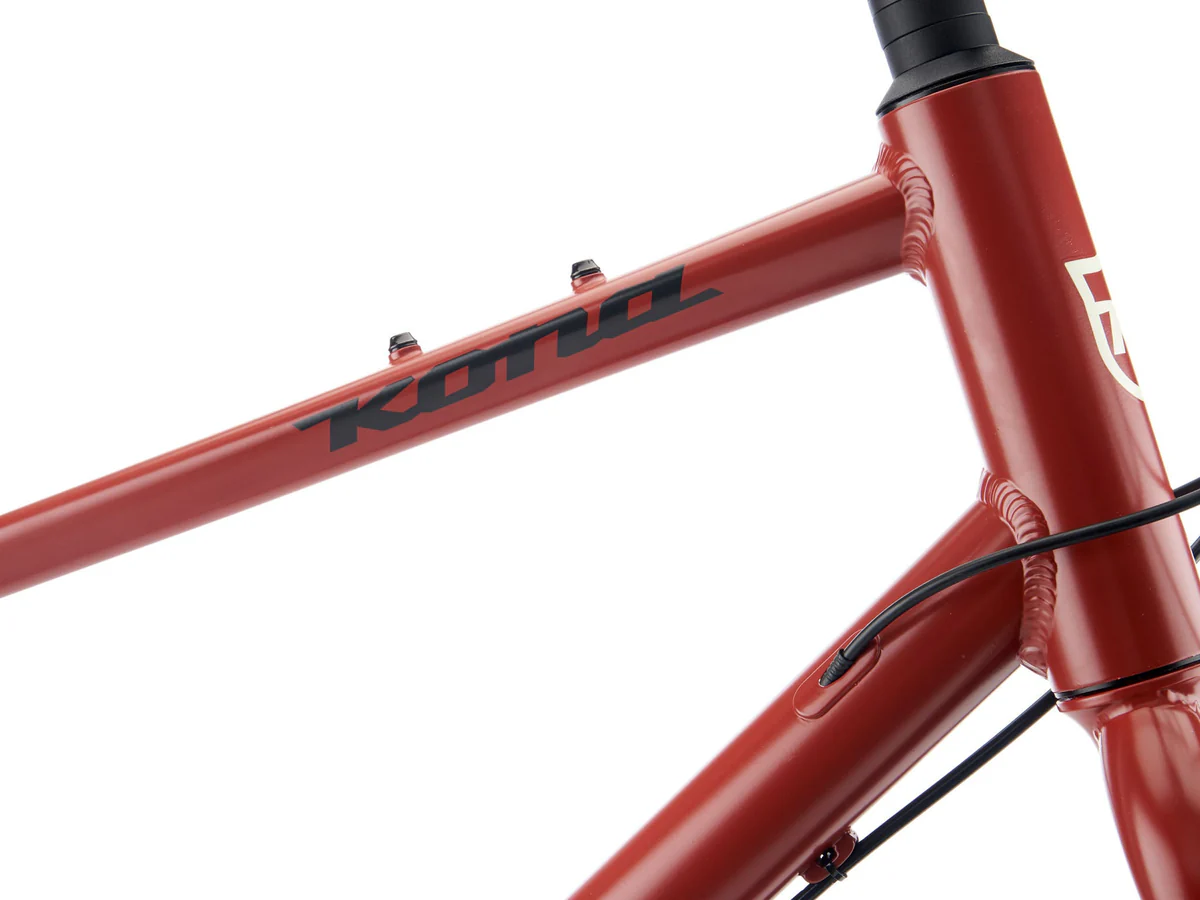

FRAME MATERIAL	Kona 6061 Aluminum Butted
SIZES	S, M, L, XL
REAR SHOCK	n/a

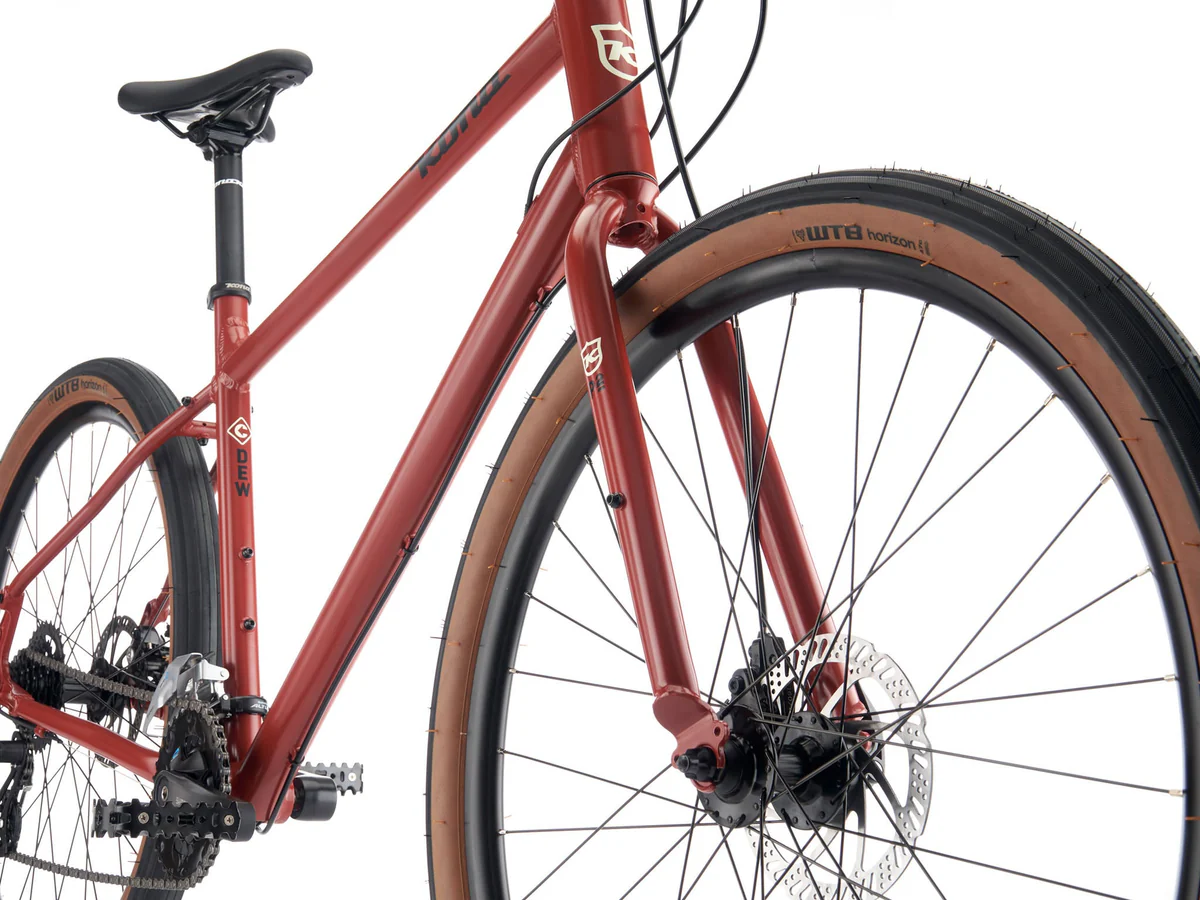

FORK	Kona Project Two Disc

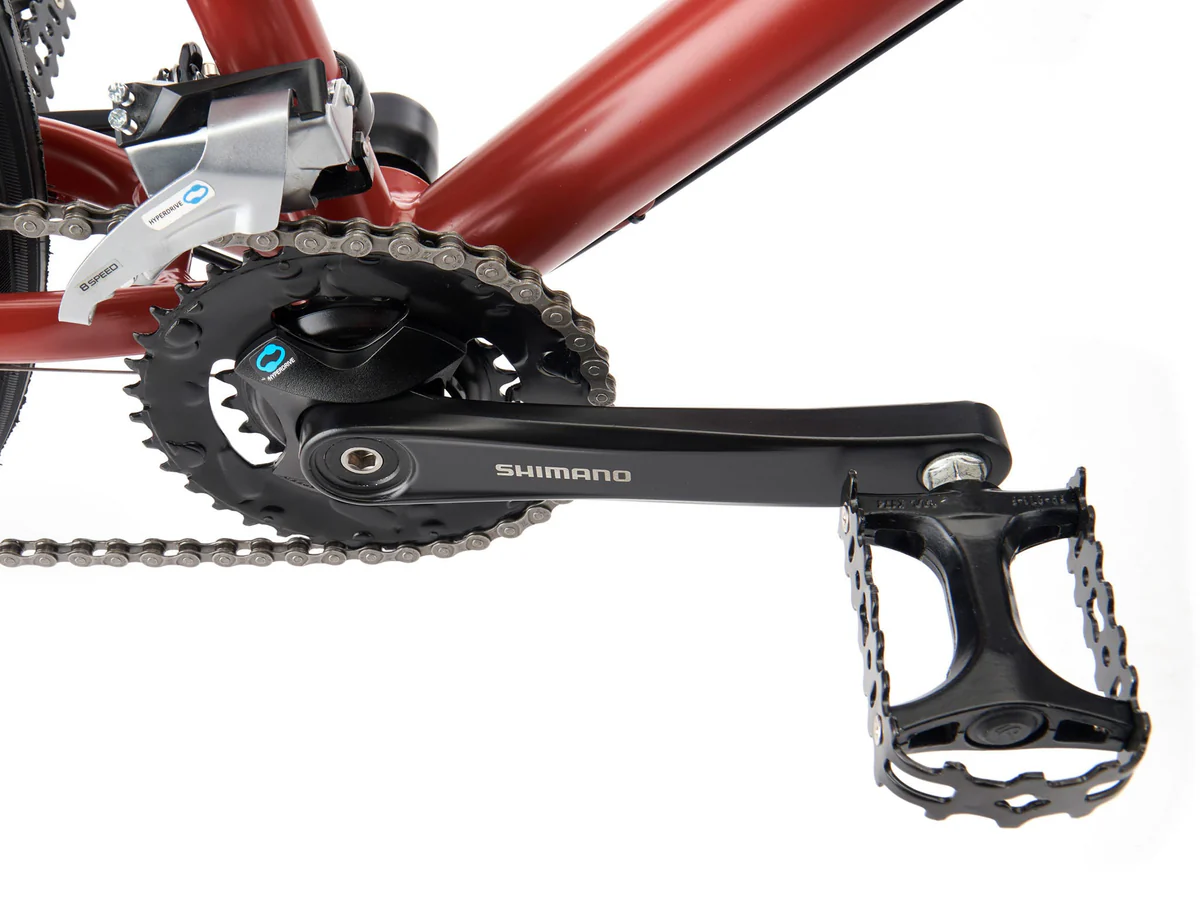

CRANKARMS	Shimano Altus or Prowheel CW TM-CY10
CHAINRINGS	22/36t
B/B	Feimin 68mm
CHAIN	KMC Z8.3
CASSETTE	Shimano Altus 11-34t 8spd
CHAINGUIDE	n/a

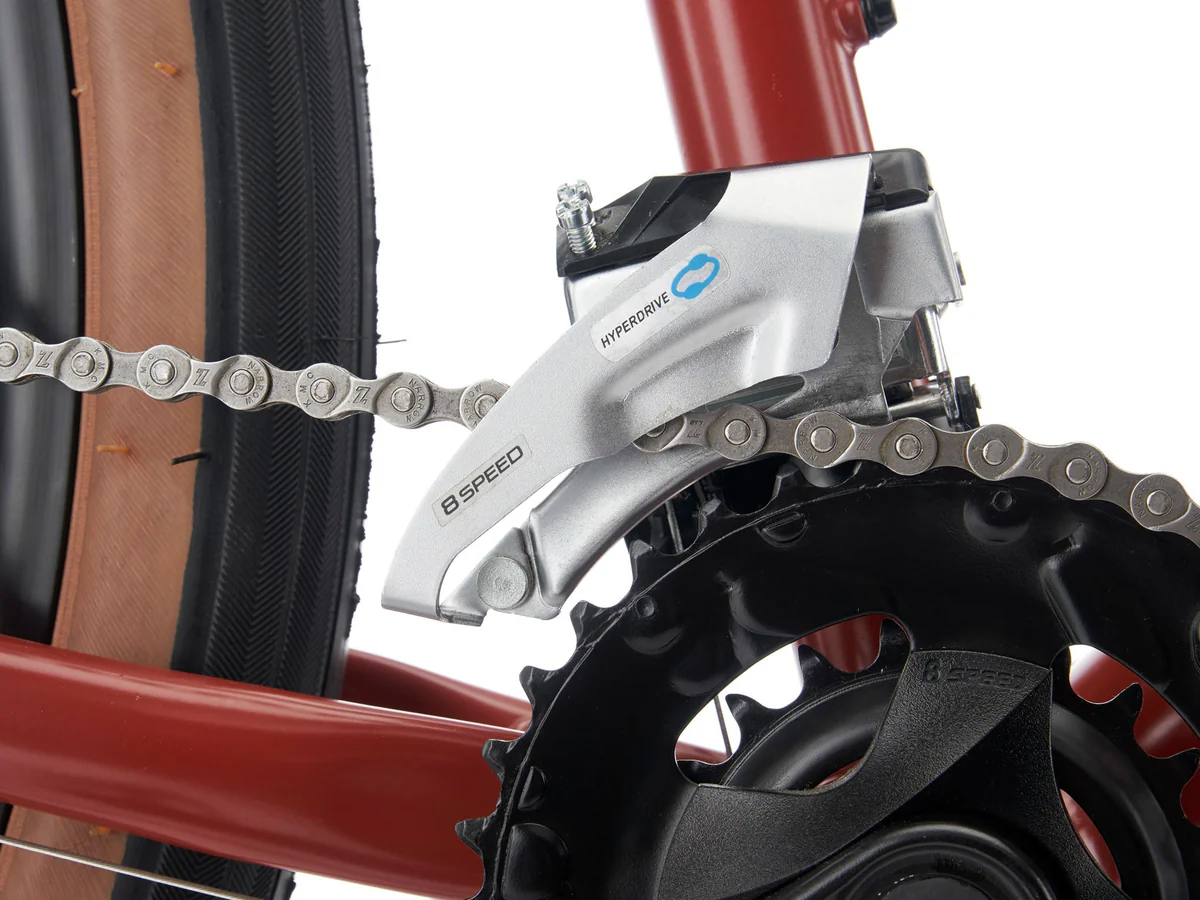

F/D	Shimano Altus

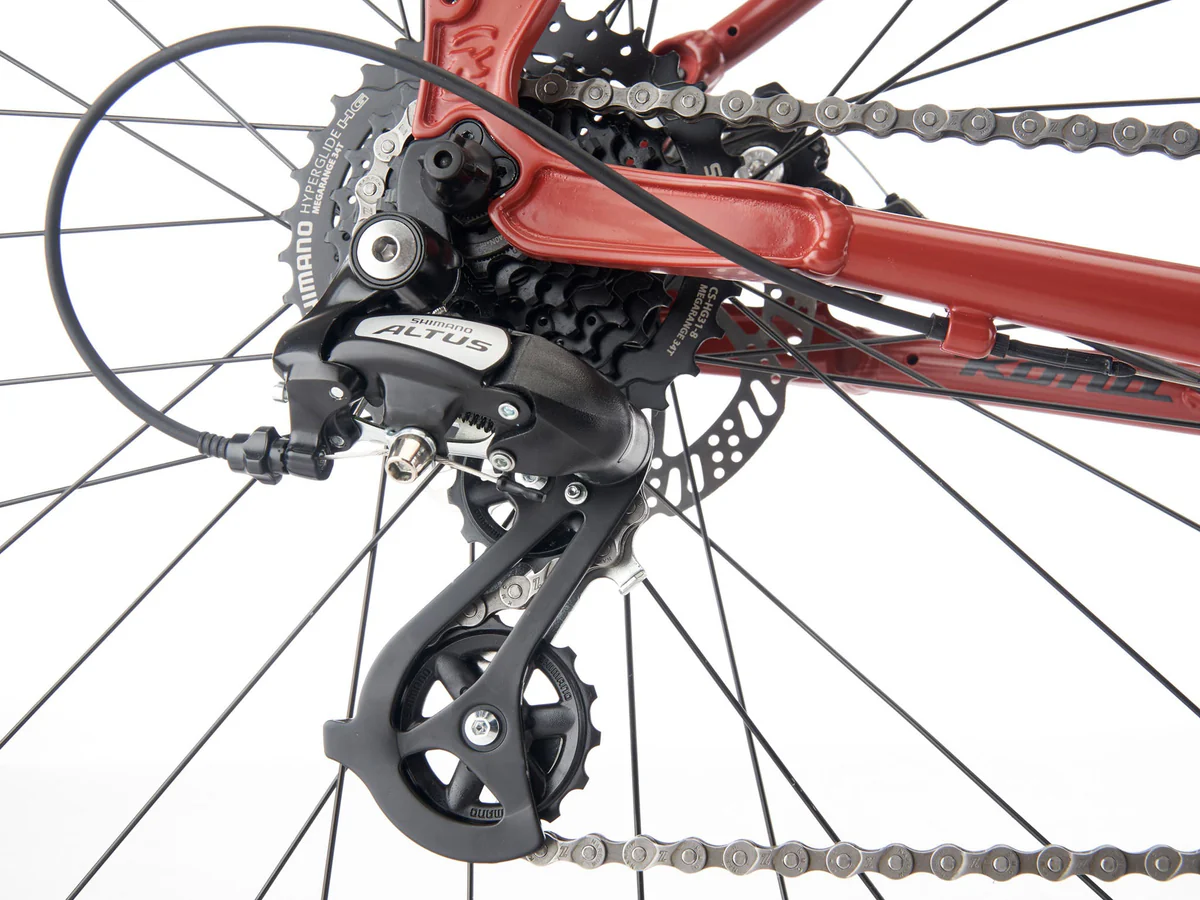

R/D	Shimano Altus
SHIFTERS	Shimano Altus

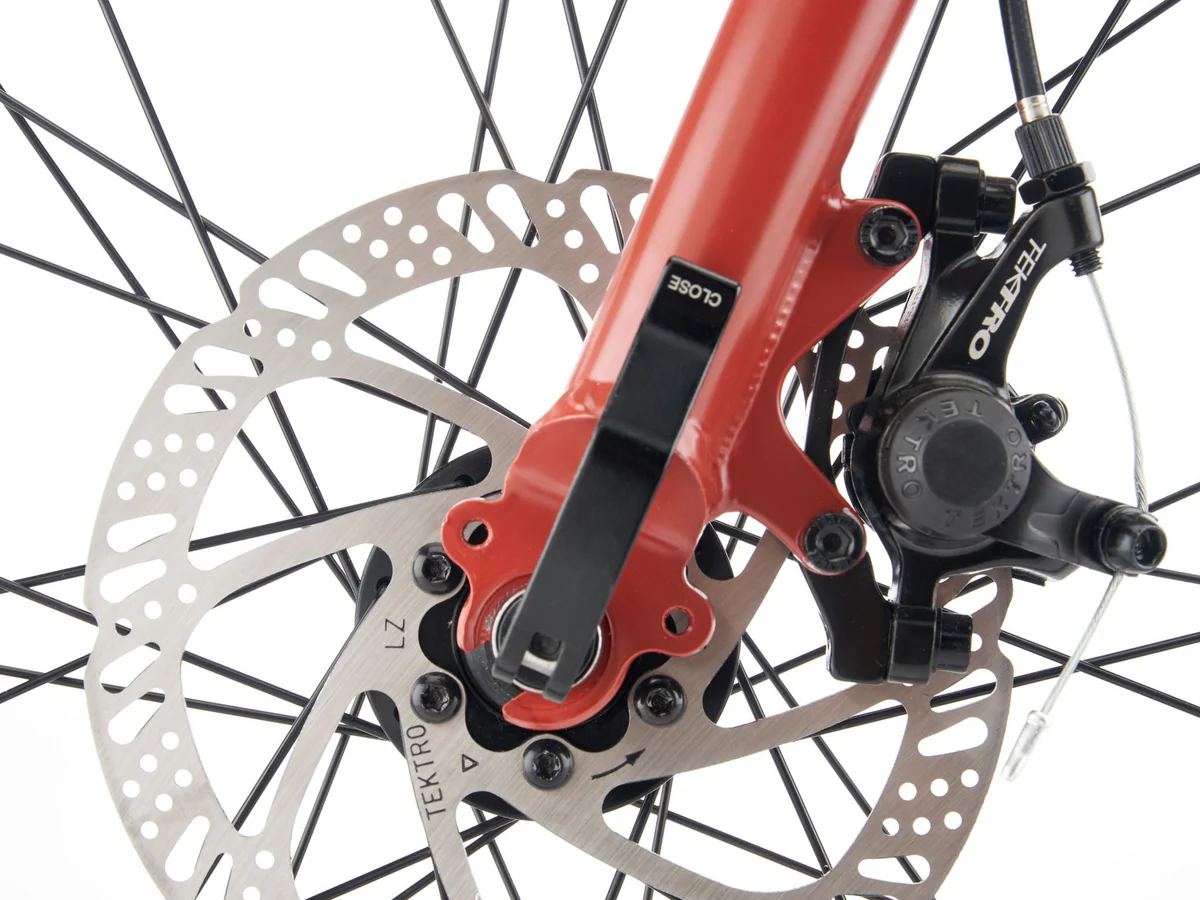

BRAKE CALIPERS	Tektro MDM280 Mechanical
FRONT BRAKE ROTOR	Tektro 160mm
REAR BRAKE ROTOR	Tektro 160mm
BRAKE LEVERS	Shimano Altus

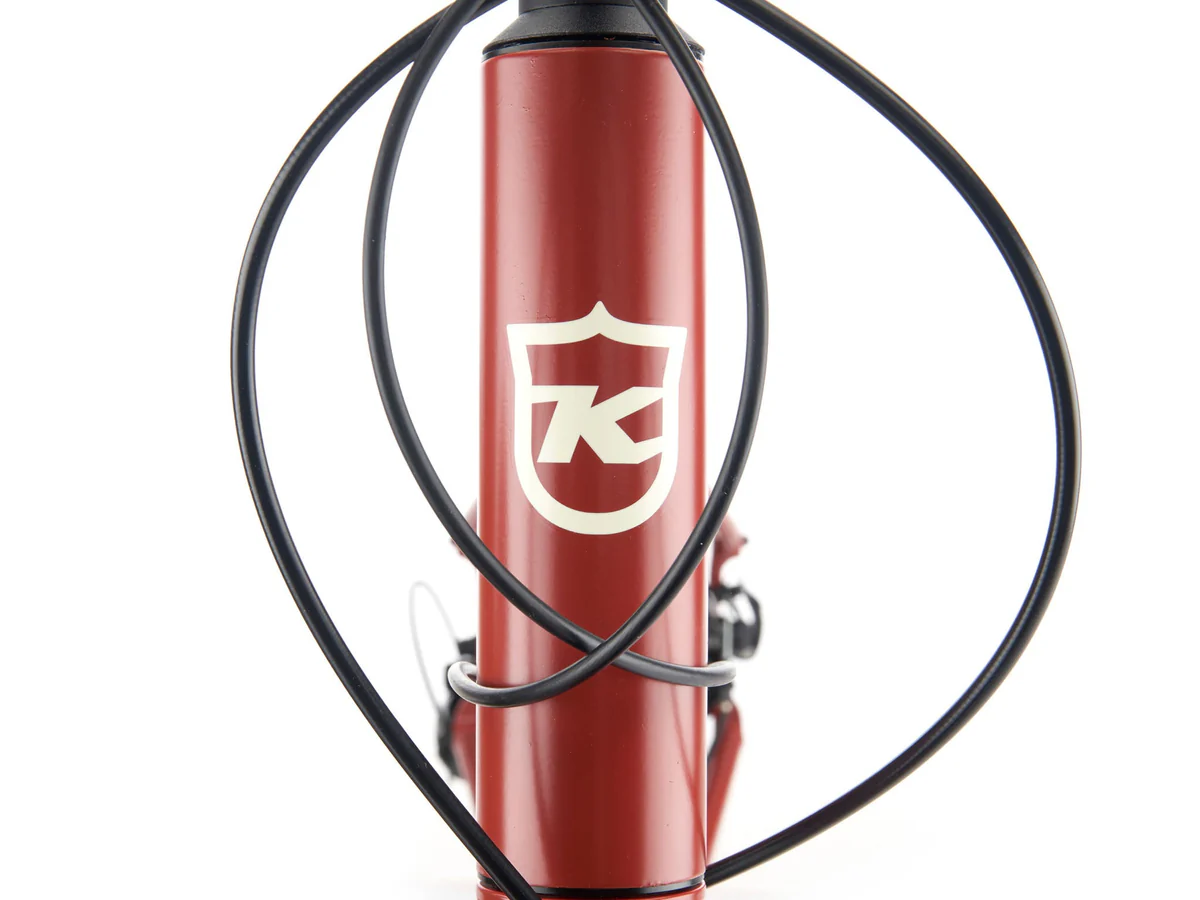

HEADSET	Feimin FP-H863
HANDLEBAR	Kona Aluminum Riser
STEM	Kona Control
SEATPOST	Kona Commuter 27.2mm
SEAT CLAMP	Kona Clamp
GRIPS	Kona Key Grip
SADDLE	Kona Commuter
FRONT HUB	Formula 100x9mm
REAR HUB	Formula 135x10mm
SPOKES	Stainless 14g
RIMS	Double Wall alloy
FRONT TIRE	WTB Horizon Comp 650x47c
REAR TIRE	WTB Horizon Comp 650x47c

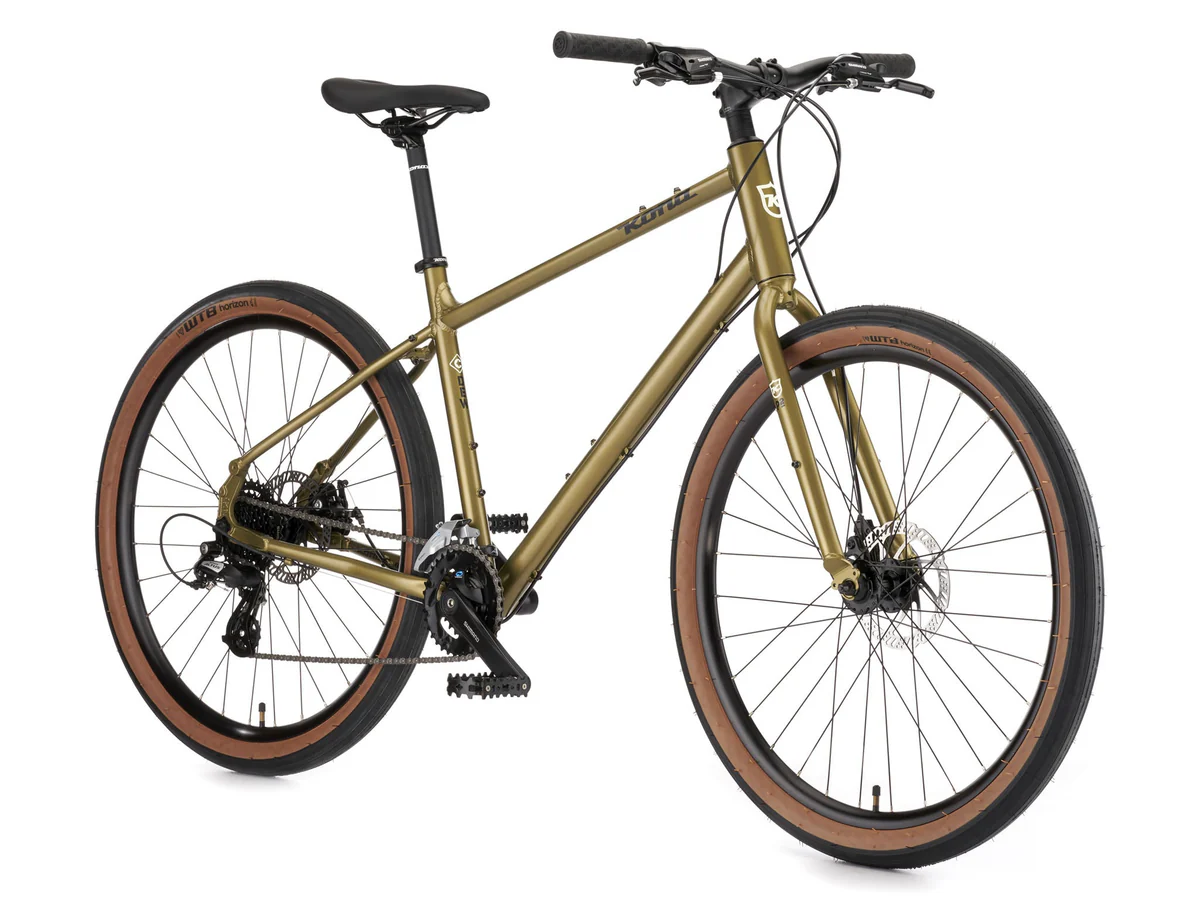

PAINT COLOR	Satin Turismo Olive or Satin Bloodstone w/ Charcoal & Bone Decals
EXTRAS	n/a

All specifications are subject to change without notice

GEOMETRY mm

	SIZE	S	M	L	XL
1	ST LENGTH	420	470	520	580
2	TT LENGTH	550	597	636	686
3	REACH	398	423	439	465
4	STACK	569	607	644	682
5	STANDOVER	687	722	757	798
6	HT ANGLE	70.0	70.0	70.0	70.0
7	HT LENGTH	135	175	215	255
8	ST ANGLE	75.0	74.0	73.0	72.0
9	CS LENGTH	450	450	450	450
10	BB DROP	70	70	70	70
11	BB HEIGHT	272	272	272	272
12	WHEELBASE	1077	1116	1146	1185
13	FRONT CENTER	636	675	705	744
14	FORK LENGTH	410	410	410	410
15	FORK OFFSET	50	50	50	50
