Component

Specification

Frame Material

Kona Carbon

Sizes

48, 50, 52, 54, 56, 58

Rear Shock

n/a

Fork

RockShox Rudy Ultimate XPLR, Charger Race Day, 40mm travel, tapered, 100 x 12

Crankarms

SRAM Force 1 DUB Wide

Chainrings

SRAM Force 1 Wide 40t X-Sync, direct mount

Bottom Bracket

SRAM Press-Fit 86.5 DUB Wide

Pedals

n/a

Chain

SRAM X0 Eagle Transmission Flattop

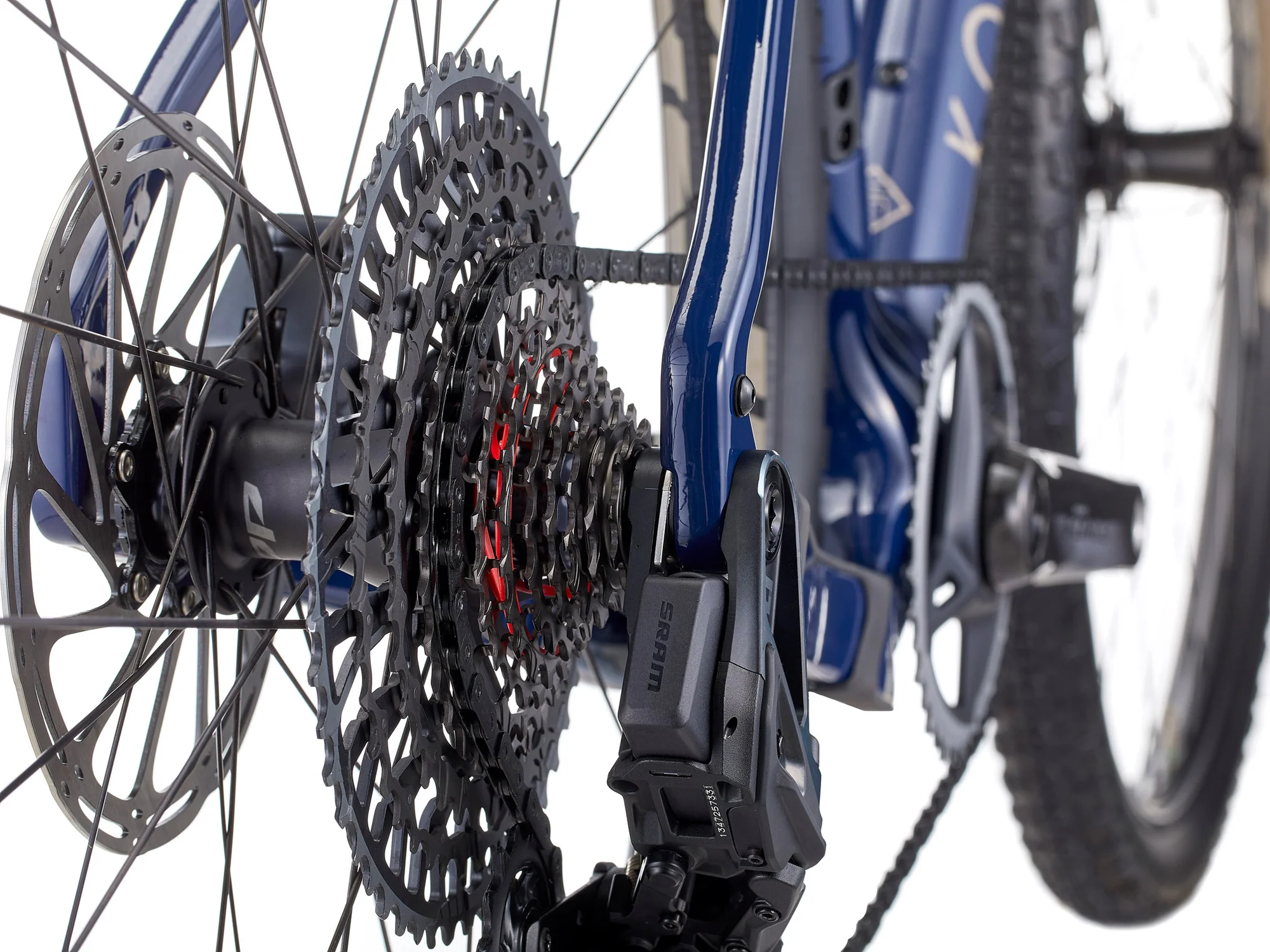

Cassette

SRAM XO Eagle Transmission 10-52t, XD

Chainguide

n/a

Front Derailleur

n/a

Rear Derailleur

SRAM XO Eagle Transmission

Shifters

SRAM Force ETAP AXS

Brake Calipers

SRAM Force Hydraulic

Front Brake Rotor

SRAM Centerline Centerlock 180mm

Rear Brake Rotor

SRAM Centerline Centerlock 180mm

Brake Levers

SRAM Force ETAP AXS

Headset

FSA Orbit No. 57, ZS 44/56

Handlebar

Ritchey Venturemax WCS/Venturemax XL WCS, 24° flare, 4.6° backsweep, various widths based on size

Stem

Ritchey Trail WCS, 0° rise, 45mm for 48-52, 60mm for 54-58

Seatpost

RockShox Reverb AXS 31.6mm, 100mm travel for 48-50, 125mm travel for 52-58

Seat Clamp

Kona 34.9mm

Grips

Smanie Elite bar tape

Saddle

WTB Volt Medium Stainless Fusion

Front Hub

Zipp 101 XPLR

Rear Hub

Zipp 101 XPLR

Spokes

Zipp 101 XPLR

Rims

Zipp 101 XPLR, 27mm internal width, tubeless, carbon, with tubeless tape

Front Tire

Maxxis Ravager 700 x 50mm TR EXO

Rear Tire

Maxxis Ravager 700 x 50mm TR EXO

Paint Color

Gloss Midnight with RS Kwiqsand Decals

Extras

Batteries

Geometry

48

50

52

54

56

58

Seat Tube (ST) Length

410

410

455

455

500

535

Top Tube (TT) Length

530

544

559

576

593

613

Reach

380

385

390

395

400

405

Stack

560

575

590

610

630

660

Standover

-

-

-

-

-

-

Head Tube (HT) Angle

69.5

69.5

69.5

69.5

69.5

69.5

Head Tube (HT) Length

115

131

147

172

193

225

Seat Tube (ST) Angle

75.0

74.5

74.0

73.5

73.0

72.5

Chainstay (CS) Length

445

445

445

445

445

445

Bottom Bracket (BB) Drop

75

75

75

72

72

72

Bottom Bracket (BB) Height

292

292

292

295

295

295

Wheelbase

1059

1069

1080

1094

1106

1123

Front Center

625

635

646

659

671

687

Fork Length

420

420

420

420

420

420

Height (Inches)

Height (Metric)

Inseam (Inches)

Inseam (Metric)

Rove

Libre

Sutra/Ouroboros

Dews

CoCo

4'10"-5'1"

147-155 cm

24”-27”

61-69 cm

48 cm

50 cm

48 cm

N/A

XS

5'0"-5'3"

152-160 cm

26"-29"

66-74 cm

48-50 cm

50 cm

48-50 cm

Small

Small

5'2"-5'7"

157-170 cm

27"-30"

69-76 cm

48-52 cm

50-52 cm

48-52 cm

Small, Medium

Small, Medium

5'6"-5'10"

168-178 cm

29"-31"

74-79 cm

52-54 cm

52-54 cm

52-54 cm

Medium

Medium

5'9"-6'0"

175-183 cm

30"-33"

76-84 cm

52-56 cm

54-56 cm

54-56 cm

Medium, Large

Medium, Large

5'11"-6'2"

180-188 cm

32"-35"

81-89 cm

54-58 cm

54-58 cm

54-58 cm

Large, XL

Large

6'1"-6'5"

185-196 cm

33"-36"

84-91 cm

56-58 cm

58 cm

56-58 cm

XL

N/A
