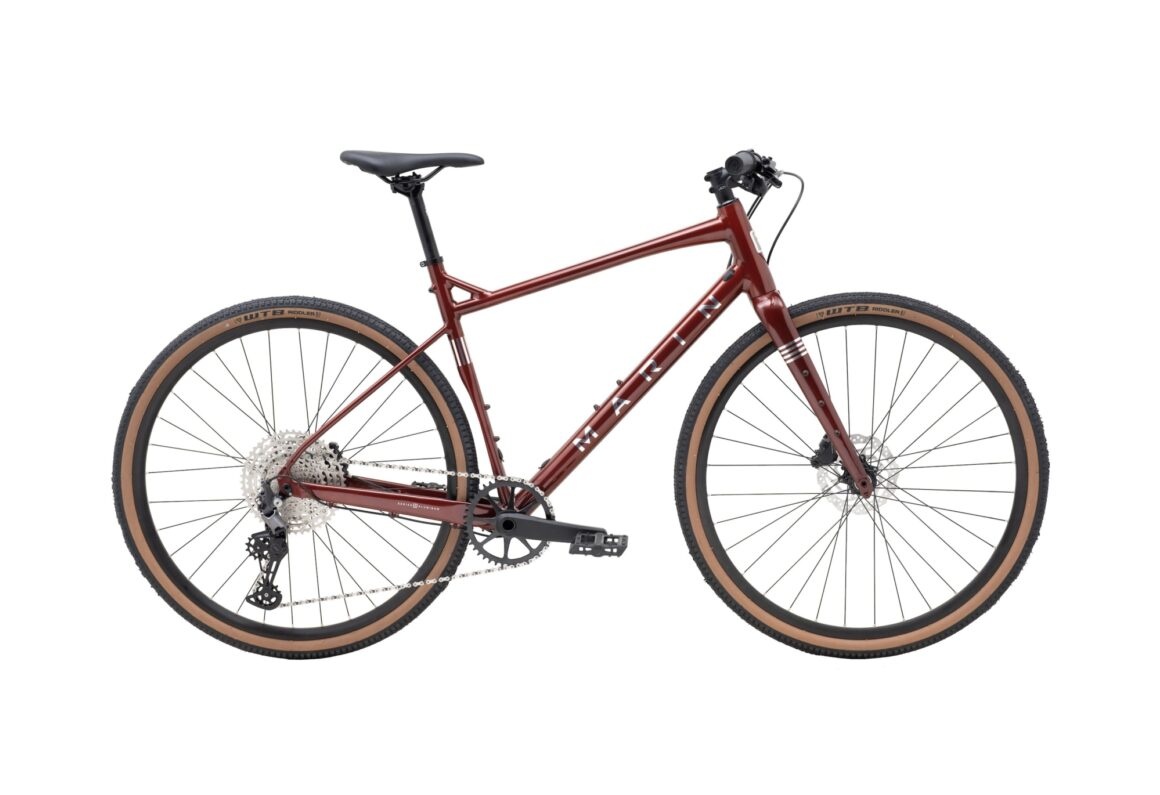

The mountain bikers gravel bike, The DSX 2 is fast and capable. Venture from Calgary paths to the gravel with ease.
The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
| Frame |
Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Fork |
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset |
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem |
Marin 3D Forged Alloy |
| Handlebar |
Marin MiniRiser |
| Saddle |
Marin DSX |
| Seatpost |
Marin Alloy |
| Grips |
Marin MTB |
| Rear Derailleur |
Shimano Deore, RDM6100, 12-Speed |
|---|---|
| Crank |
Forged Aluminum, 42T Steel Narrow Wide Chainring |
| Bottom Bracket |
Sealed Outboard Bearing |
| Shifters |
Shimano Deore, SLM6100, 12-Speed |
| Cassette |
SunRace, 12-Speed, 11-51T |
| Chain |
KMC X12 |
| Brakes |
Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor |
| Rims |
Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
|---|---|
| Front Hub |
Forged Aluminum, 100x12mm, Disc, 32H |
| Rear Hub |
Forged Aluminum Alloy, 142x12mm, Disc, 32H |
| Tires |
WTB Riddler, 700Cx45mm |
**All specifications and pricing are subject to change without notice
| S | M | L | XL | ||
|---|---|---|---|---|---|
| STACK | 544.4 | 572.5 | 600.6 | 628.7 | |
| REACH | 380 | 405 | 420 | 435 | |
| HEAD TUBE ANGLE | 69.5° | 69.5° | 69.5° | 69.5° | |
| HEAD TUBE LENGTH | 120 | 150 | 180 | 210 | |
| SEAT TUBE ANGLE | 74° | 74° | 74° | 74° | |
| SEAT TUBE LENGTH | 430 | 480 | 520 | 558 | |
| TOP TUBE EFFECTIVE | 536 | 569 | 592 | 615 | |
| BB HEIGHT | 279.5 | 279.5 | 279.5 | 279.5 | |
| BB DROP | 80 | 80 | 80 | 80 | |
| CHAIN STAY | 425 | 425 | 425 | 425 | |
| WHEEL BASE | 1024 | 1060 | 1085 | 1111 | |
| STAND OVER HEIGHT | 659 | 700 | 730 | 758 | |
| FORK OFFSET | 50 | 50 | 50 | 50 | |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | |
| HANDLEBAR WIDTH | 640 | 680 | 680 | 680 | |
| STEM LENGTH | 70 | 70 | 70 | 70 | |
| CRANK LENGTH | 170 | 175 | 175 | 175 |
All lengths in millimeters
