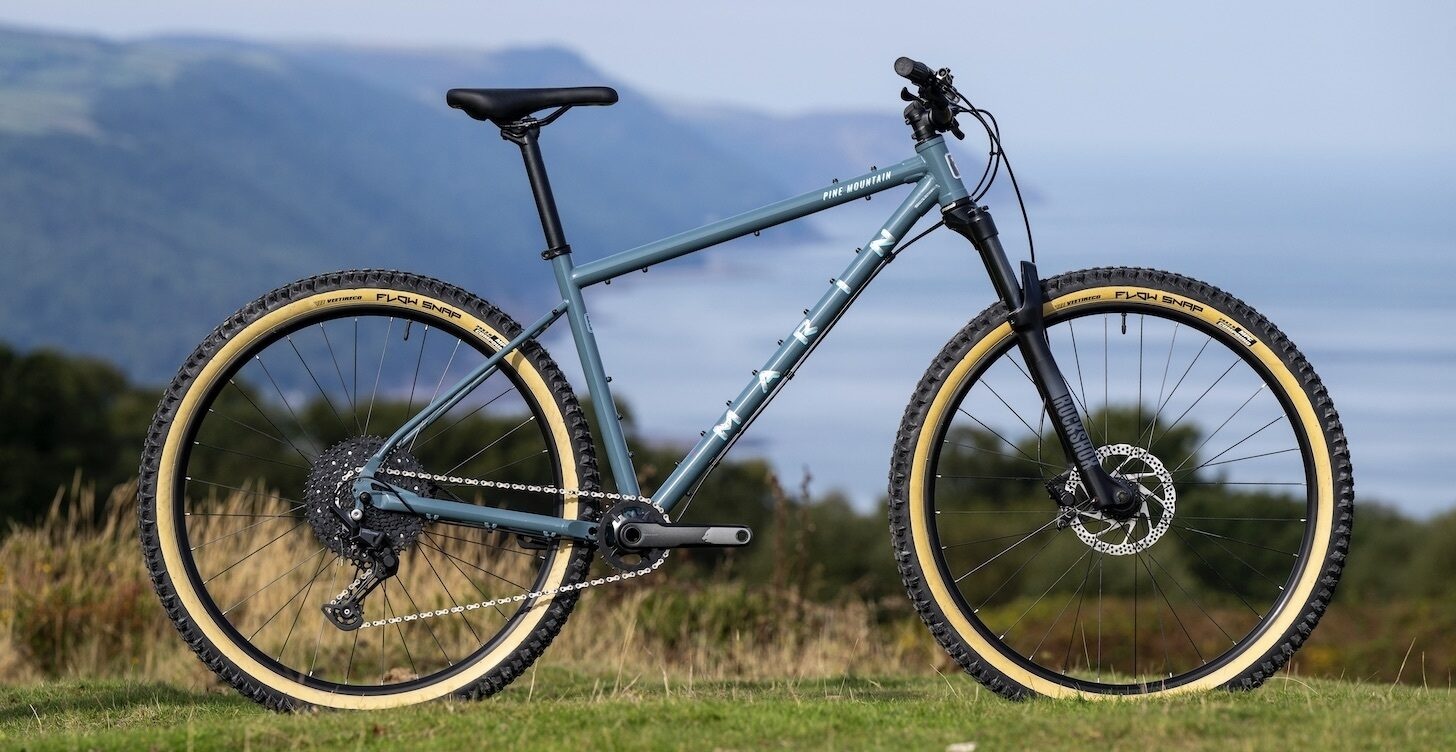

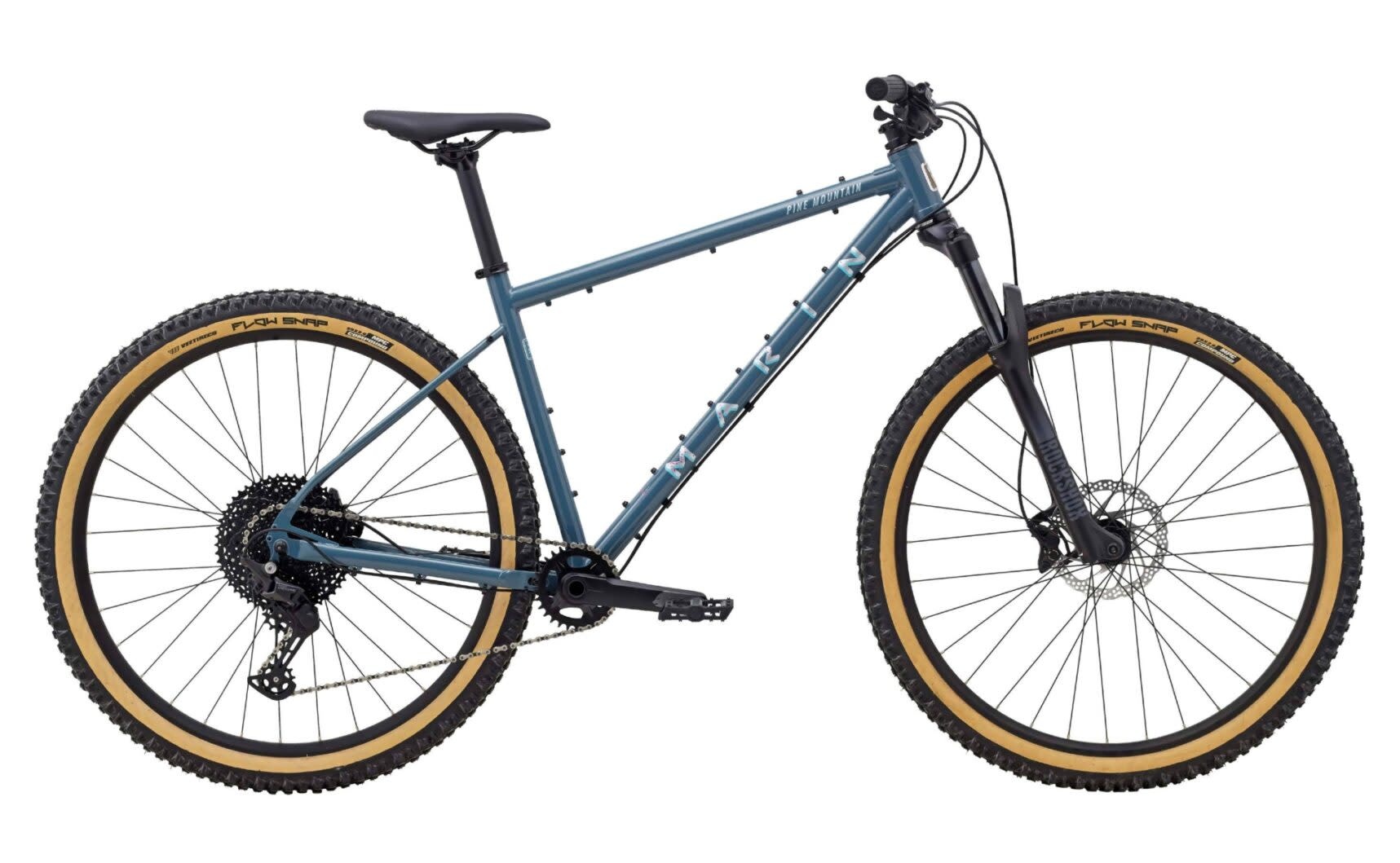

The Marin Pine Mountain 1 is our budget-friendly steel bikepacking mountain bike hardtail. It features fully updated geometry, a series 2 double-butted CrMo frame and all the bikepacking mounts you’ll ever need. All that, combined with a 120mm RockShox Recon RL fork, grippy and dependable Vee Tire co. Flow Snap 2.6” tire, Shimano shifting and our much-loved Marin Bedroll handlebar.
|
Frame
|

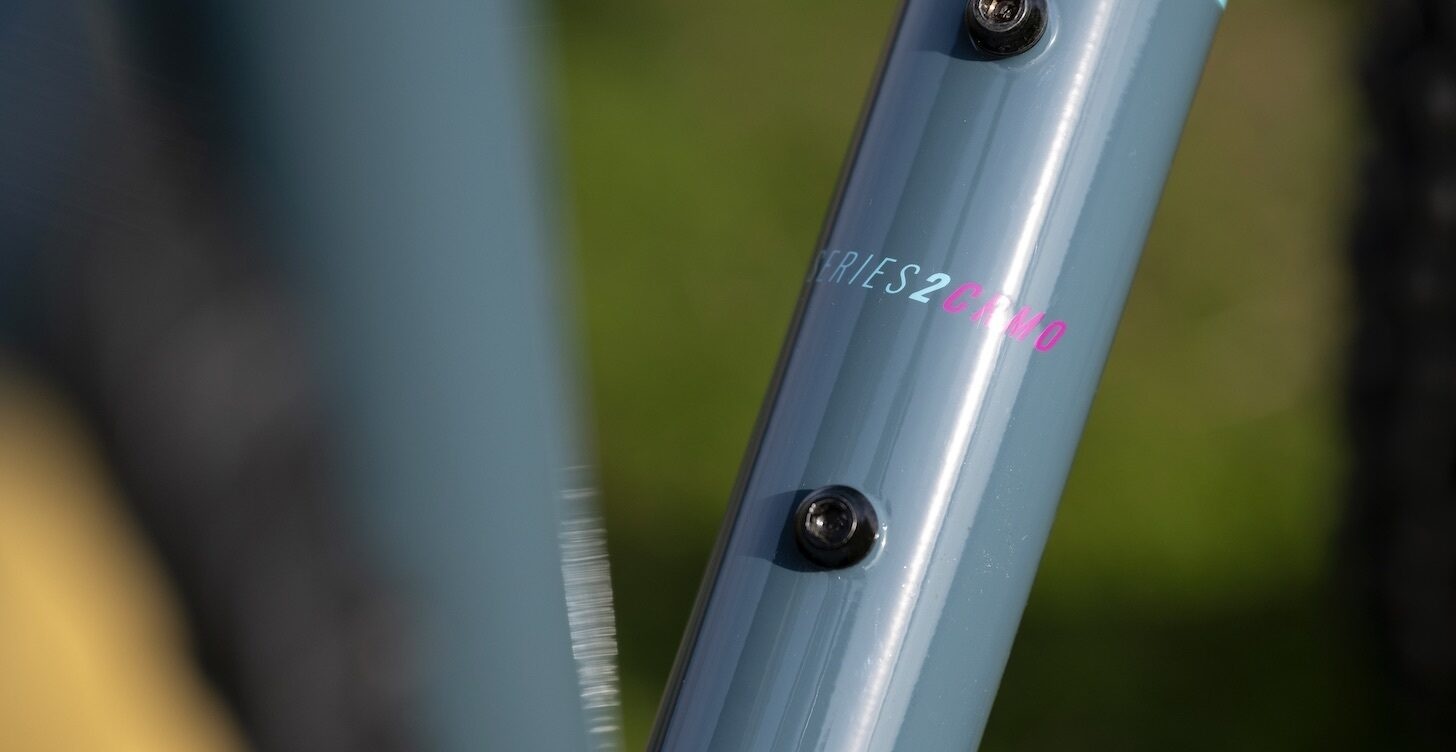

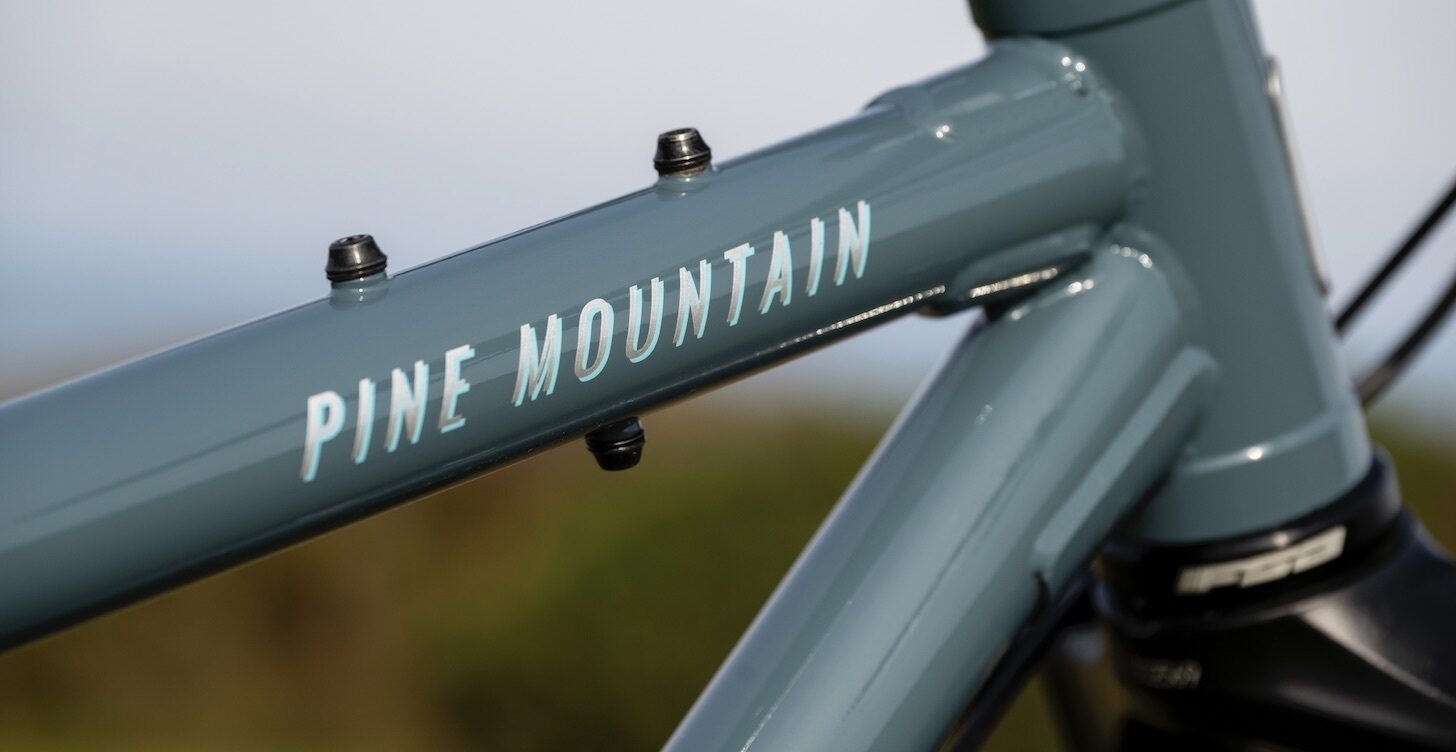

Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts |
|
Front Suspension
|
RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
|
|
Wheels
|
Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
|
|
Tires
|
Vee Tire Co. Flow Snap, 29x2.6", Wire Bead
|
|
Rear Derailleur
|
Shimano Deore, RDM5100, 11-Speed
|
|
Front Derailleur
|
N/A
|
|
Shifters
|
Shimano Deore, SLM5100, 11-Speed
|
|
Crankset
|
Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring
|
|
Bottom Bracket
|
External Sealed Cartridge Bearings
|
|
Chain
|
KMC X11
|
|

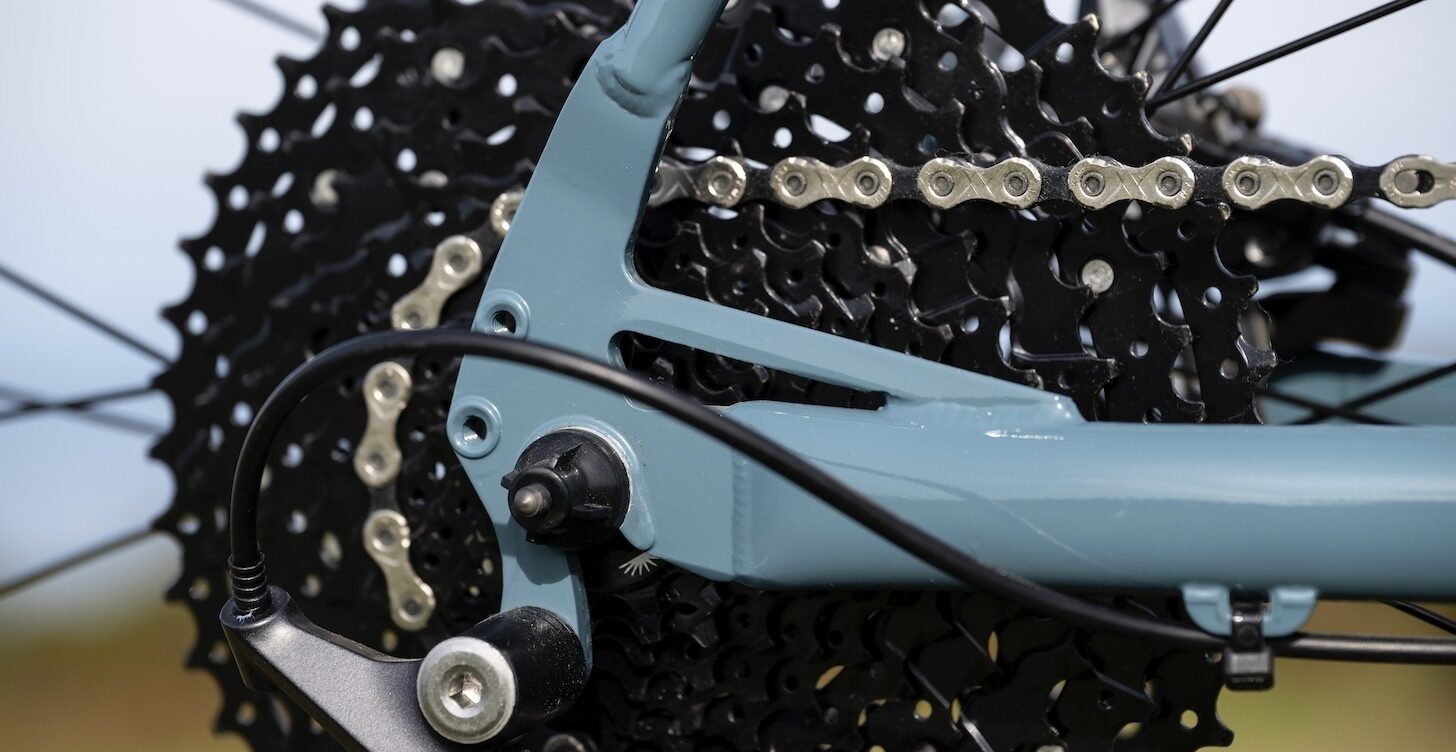

Cassette
|
Shimano Deore, CSM5100, 11-Speed, 11-51T
|
|
Brakes
|
Tektro HDM535, 4-Piston, Hydraulic
|
|
Brake Levers
|
Tektro Hydraulic
|
|
Rotors
|
160 Rear, 180 Front, 6-bolt
|
|
Stem
|
Marin 3D Forged Alloy, 35mm
|
|

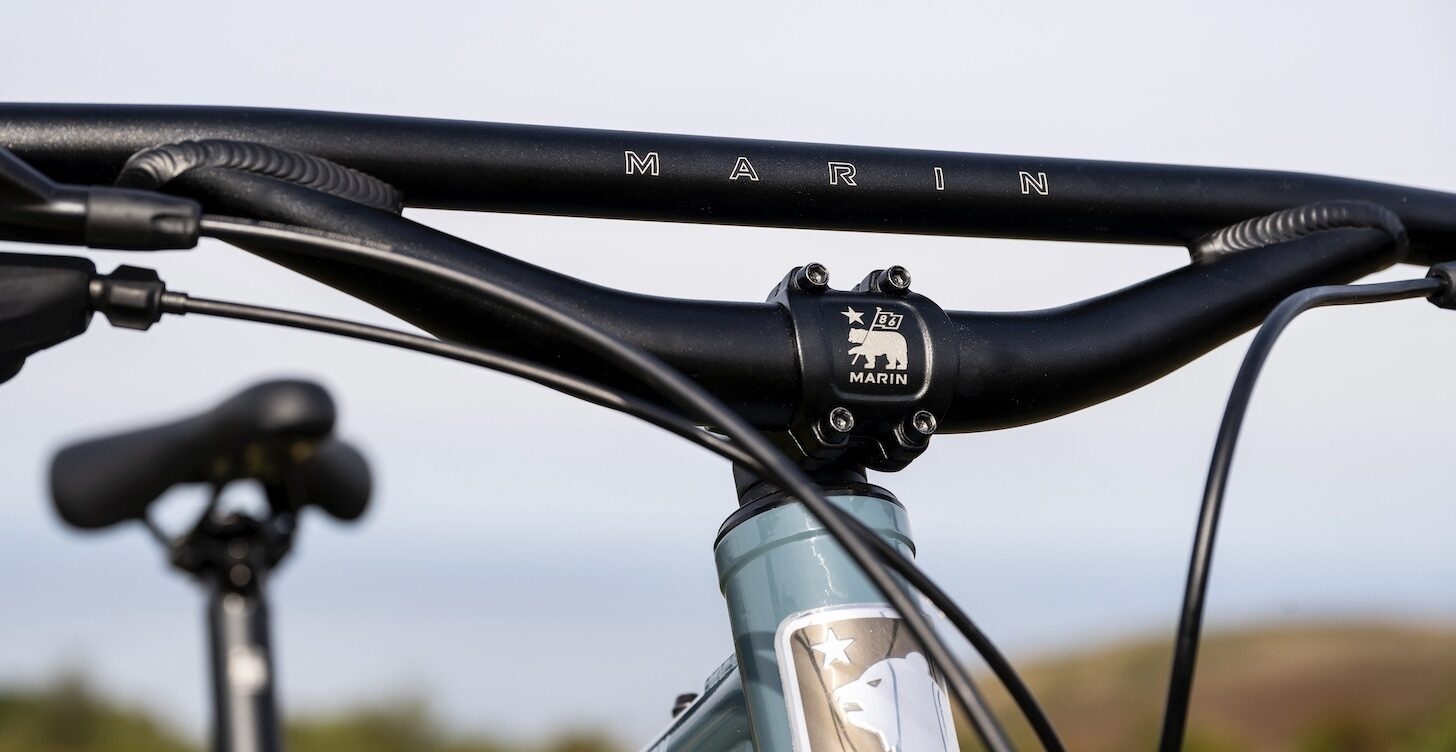

Handlebars
|
Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
|
|
Grips
|
Marin Bear Paw Locking
|
|
Headset
|
FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
|
|
Seatpost
|
Marin Alloy, 30.9
|
|
Saddle
|
Marin Pine Mountain
|
*All Specifications subject to change without notice*
