FAST PACED, EPIC RIDES
PUSHING THE ENVELOPE UP AND DOWN THE TRAIL
CHASING PERSONAL RECORDS

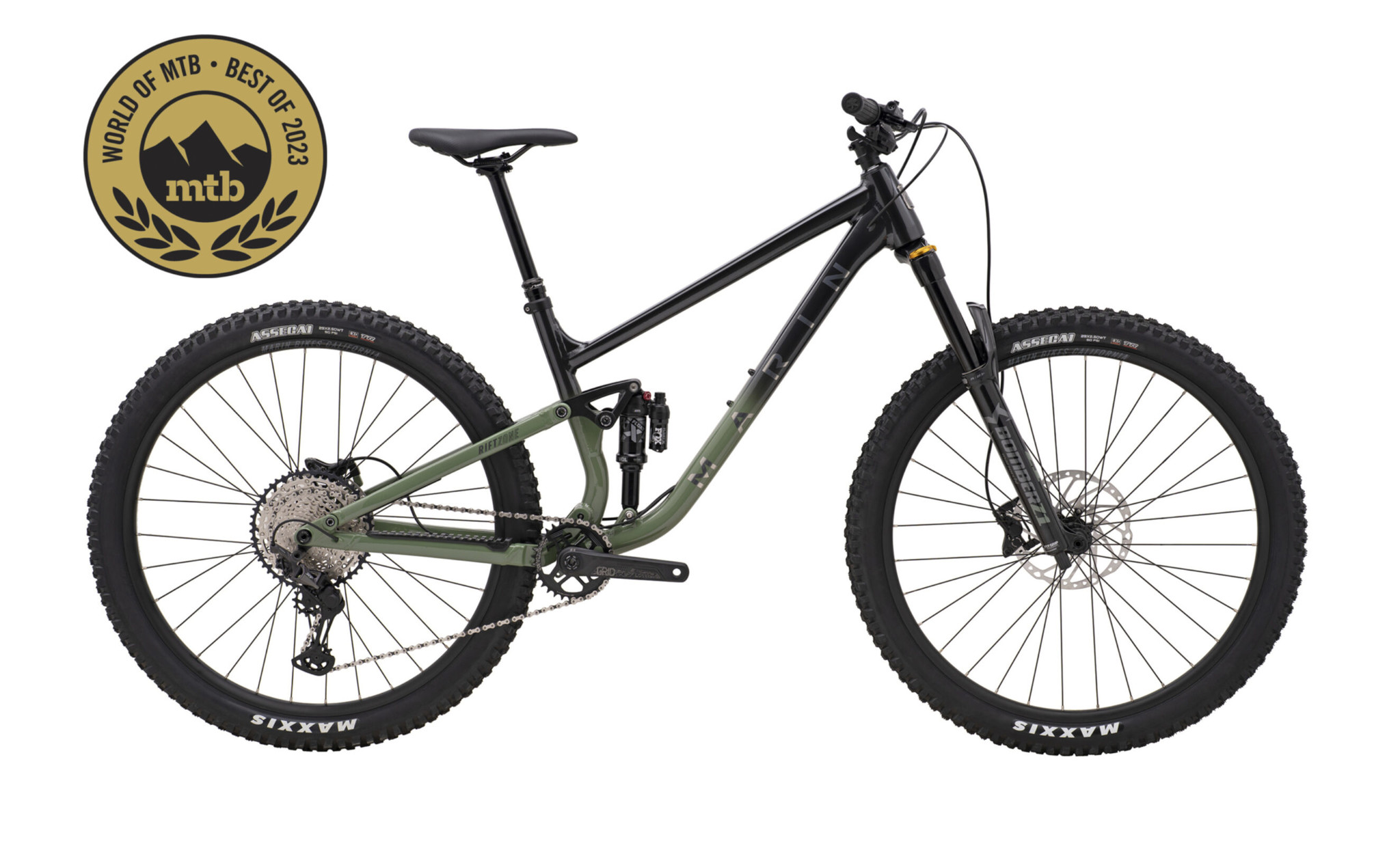

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
Key upgrades from Rift Zone 29 2:
- Marzocchi Bomber/Fox Float DPS suspension
- Shimano SLX drivetrain
- Shimano M420 4-piston brakes
- SUSPENSION: Marzocchi Bomber Z1 29" / Fox Float X
- WHEEL SIZE: 29"
- FRAME: Aluminum
SPECIFICATIONS
| FRAME |
All New Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| FRONT SUSPENSION |
Marzocchi Bomber Z1 29", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset |
| REAR SUSPENSION |
Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, M8x30mm Top, M8x25mm Bottom |
| RIMS |
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible |
| HUB, REAR |
Forged Alloy, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H, Standard Freehub Body |
| HUB, FRONT |
Forged Alloy, 110x15mm, Disc, 32H |
| SPOKE, NIPPLES |
14g Black Stainless Steel |
| TIRES |
Maxxis Assegai, 29x2.5", MAXX TERRA, EXO, Tubeless Compatible |
| DERAILLEUR, REAR |
Shimano XT, 12-Speed, SGS |
| SHIFT LEVER |
Shimano SLX, 12-Speed, SL-7100R |
| CRANKSET |
FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
| BOTTOM BRACKET |
Mego EXO 73mm BSA |
| CHAIN |
KMC X-12 Silver and Black |
| CASSETTE |
SunRace 12-speed, 11-51 |
| BRAKE, FRONT |
Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor |
| BRAKE, REAR |
Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads 180mm Rotor |
| BRAKE LEVERS |
Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible |
| HANDLEBAR |
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| STEM |
Marin 3D Forged Alloy, 35mm |
| GRIPS |
Marin Grizzly Lock On |
| HEADSET |
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| SEATPOST |
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm |
| SADDLE |
Marin Speed Concept |
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
| |
S |
M |
L |
XL |
| A. STACK |
623.6 |
628.2 |
637.3 |
641.8 |
| B. REACH |
435 |
460 |
485 |
515 |
| C. HEAD TUBE ANGLE |
65.5° |
65.5° |
65.5° |
65.5° |
| D. HEAD TUBE LENGTH |
110 |
115 |
125 |
130 |
| E. SEAT TUBE ANGLE |
77° |
77° |
77° |
77° |
| F. SEAT TUBE LENGTH |
390 |
400 |
425 |
430 |
| G. TOP TUBE EFFECTIVE |
579 |
605 |
632.1 |
663.2 |
| H. BB HEIGHT |
343 |
343 |
343 |
343 |
| I. BB DROP |
35 |
35 |
35 |
35 |
| J. CHAINSTAY |
430 |
430 |
430 |
430 |
| K. WHEELBASE |
1170 |
1205.1 |
1234.4 |
1266.3 |
| L. STANDOVER HEIGHT |
690.2 |
691.2 |
701.7 |
700.5 |
| M. FORK OFFSET |
44 |
44 |
44 |
44 |
| SEATPOST DIAMETER |
30.9 |
30.9 |
30.9 |
30.9 |
| HANDLEBAR WIDTH |
780 |
780 |
780 |
780 |
| STEM LENGTH |
35 |
35 |
35 |
35 |
| CRANK LENGTH |
170 |
170 |
170 |
170 |
All lengths in millimeters
