SURLY

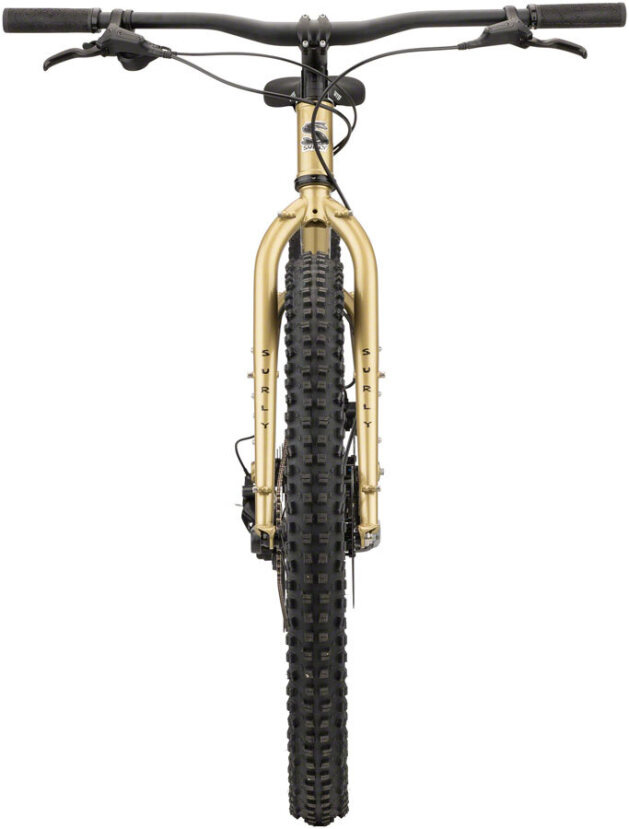

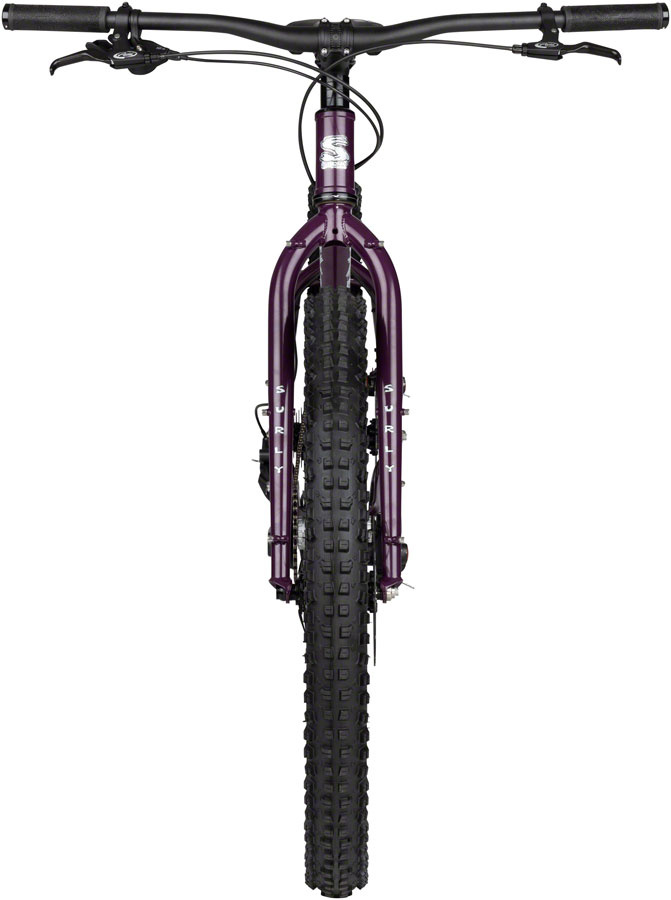

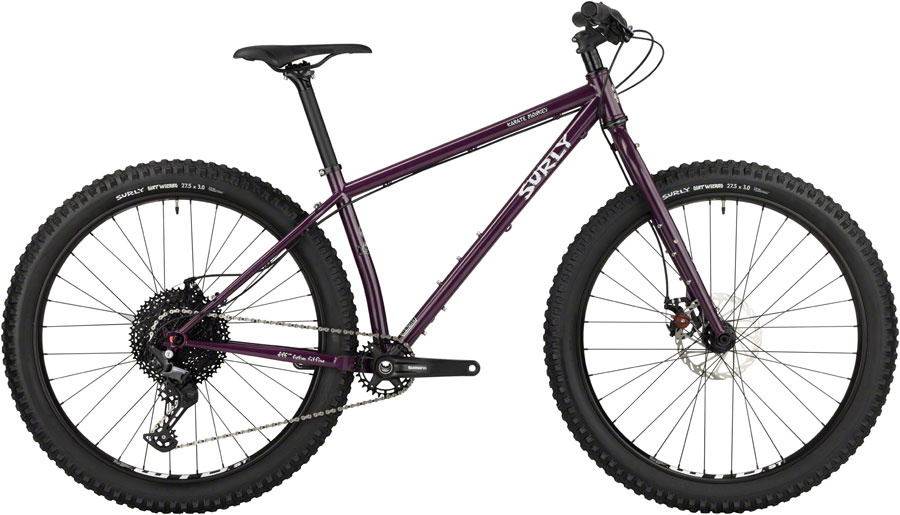

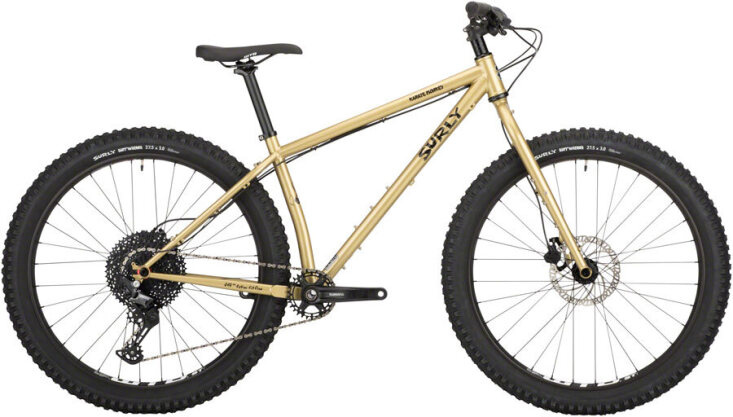

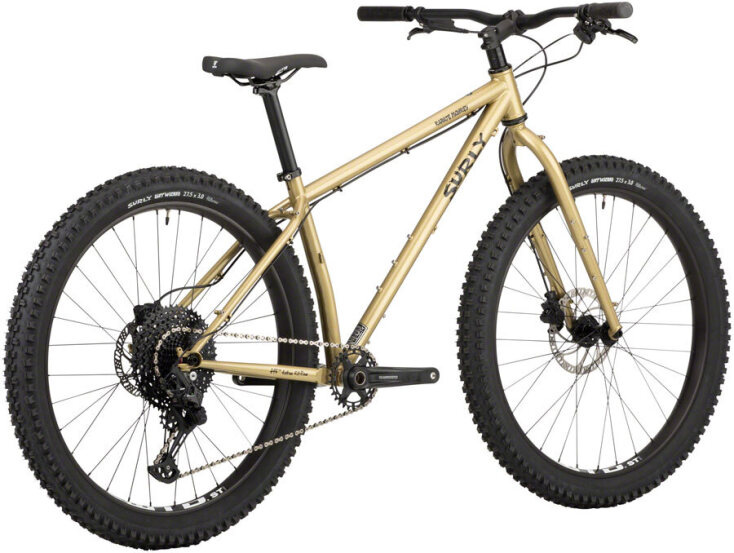

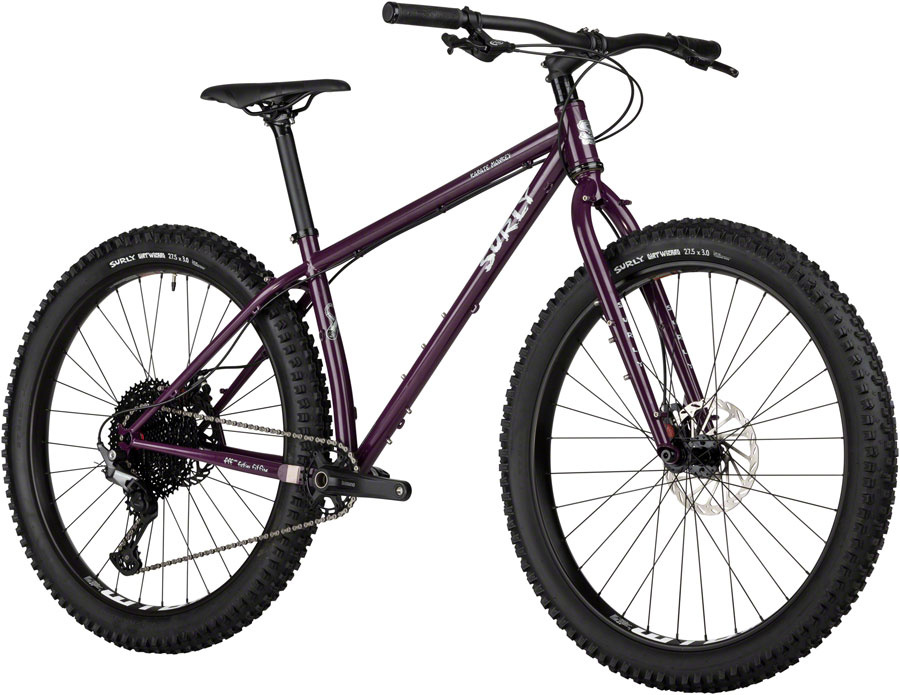

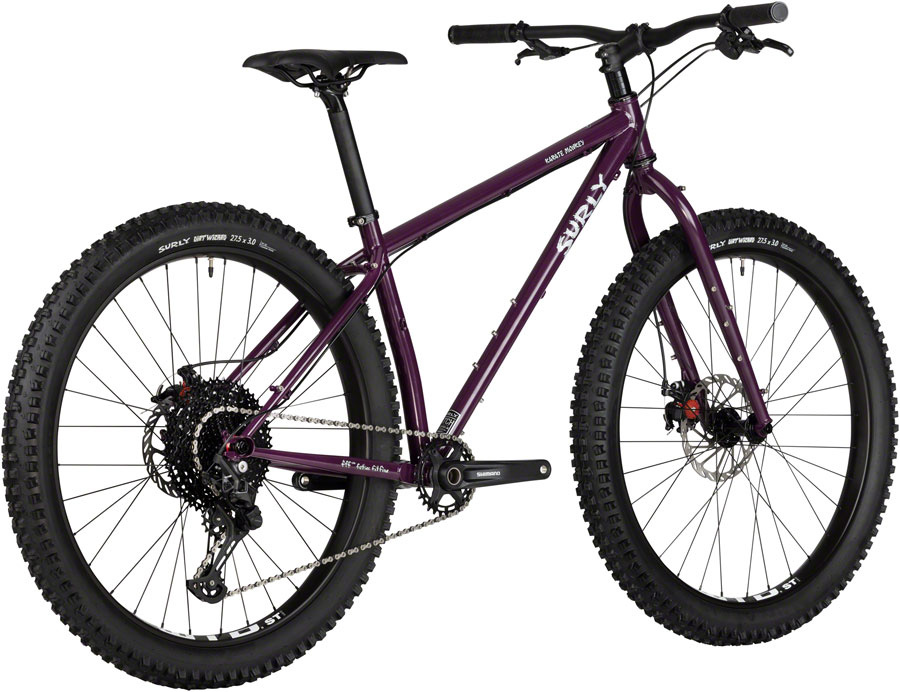

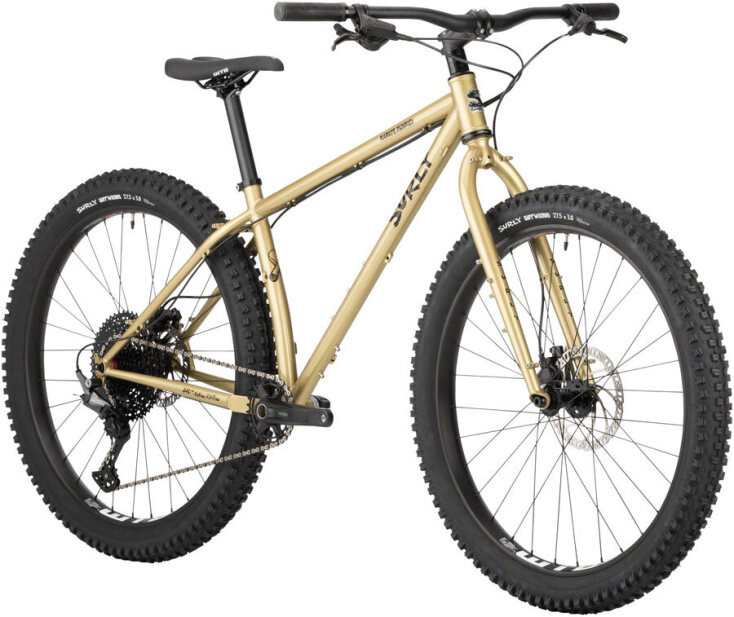

Karate Monkey

$2,599.00

Call or email for special order

Climb with peak efficicency, turn around, drop the post and party all the way down. The Karate Monkey is the mountain biker's hardtail.

Delivery time: Contact us for avaliblity

Description

Multipurpose Hardtail Mountain Bike

Karate Monkey delivers a resilient, lively ride on all sorts of gnarly terrain. Its frame is a highly-versatile canvas for whatever dirty masterpiece your brain cooks up. According to our computing machine (Thor) it can be set up in approximately 487 different configurations.

Originally designed as a 29er (and the frame that helped spark the 29” wheel movement), the latest Karate Monkey is designed to perform just as admirably as a 27.5+ rig as well. This allows you to pick your poison — provided your poison is having a really great time while permanently donning a shit-eating grin, of course.

Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
Clearance for 29” x 2.5” or 27.5” x 3” tires

Frameset

Frame: 100% Surly Chromoly Steel, Custom double butted externally flaired tubing. Horizontal slotted with derailleur hanger, Surly “Gnot Boost” 142 or 148mm hub spacing compatibility

Fork: 100% Surly Chromoly Steel, 483mm axle-to-crown x 47mm offset, 110mm hub spacing, tapered and butted straight blade. 51mm I.S. disc mount

Seatpost Clamp: 33.1mm Surly Stainless

Components

Headset: Cane Creek 15

Brakes: Tektro HD-M275

Rotors: 180/160 F/R

Shifters: Shimano Deore SL-M6100

Stem: Promax 31.8

Handlebar: Salsa Rustler without logo

Grip/Tape: Velo - lock on

Saddle: WTB Volt

Seatpost: Promax 30.9

Drivetrain

Crankset: Shimano Deore FC-MT510-1, 30t

Bottom Bracket: Shimano

Front Derailleur: n/a

Rear Derailleur: Shimano Deore RD-M6100, 12-speed

Cassette: SunRace CSMZ800, 11-51t, 12-Speed

Chain: KMC X12, NP/BK

Wheels

Front Hub: Novatec 15x110mm, 32h

Rear Hub: Novatec 12x148mm, 32h

Rims: WTB ST i40 TCS

Tires: Surly Dirt Wizard 27 x 3", 60 tpi, Tubeless Ready
