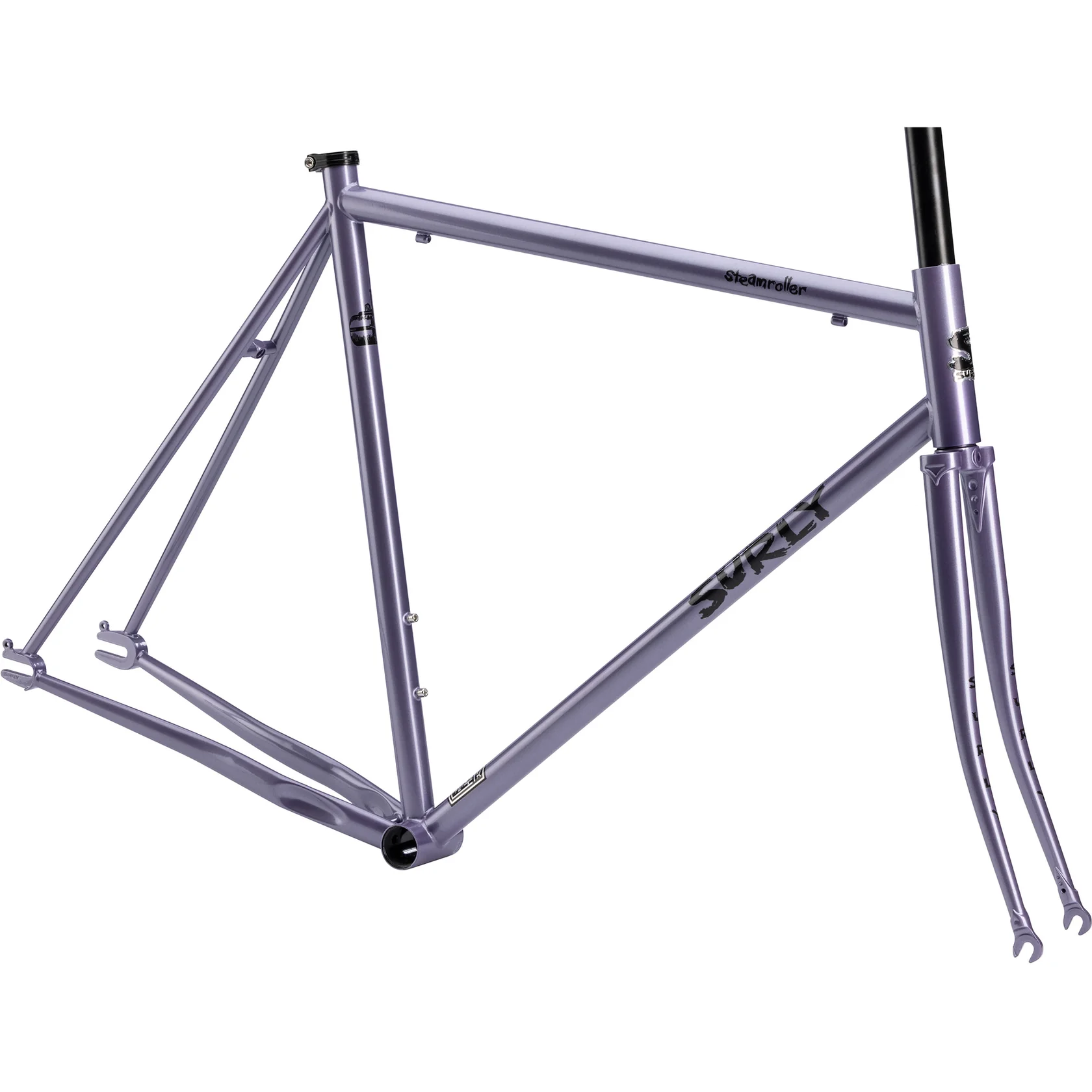

Steamroller Frameset - Anxious Lavender

$999.00

Out of stock online

In store: Check availability

SKU: FM6920

A steel classic is back for a limited run. Once a fixture in the fixie craze, with a double-butted 4130 chromoly frame and 700 x 38c clearance. For messengers, riding to work, concerts, and shadowy dive bars. No derailleur hanger, no rack mounts, no need.

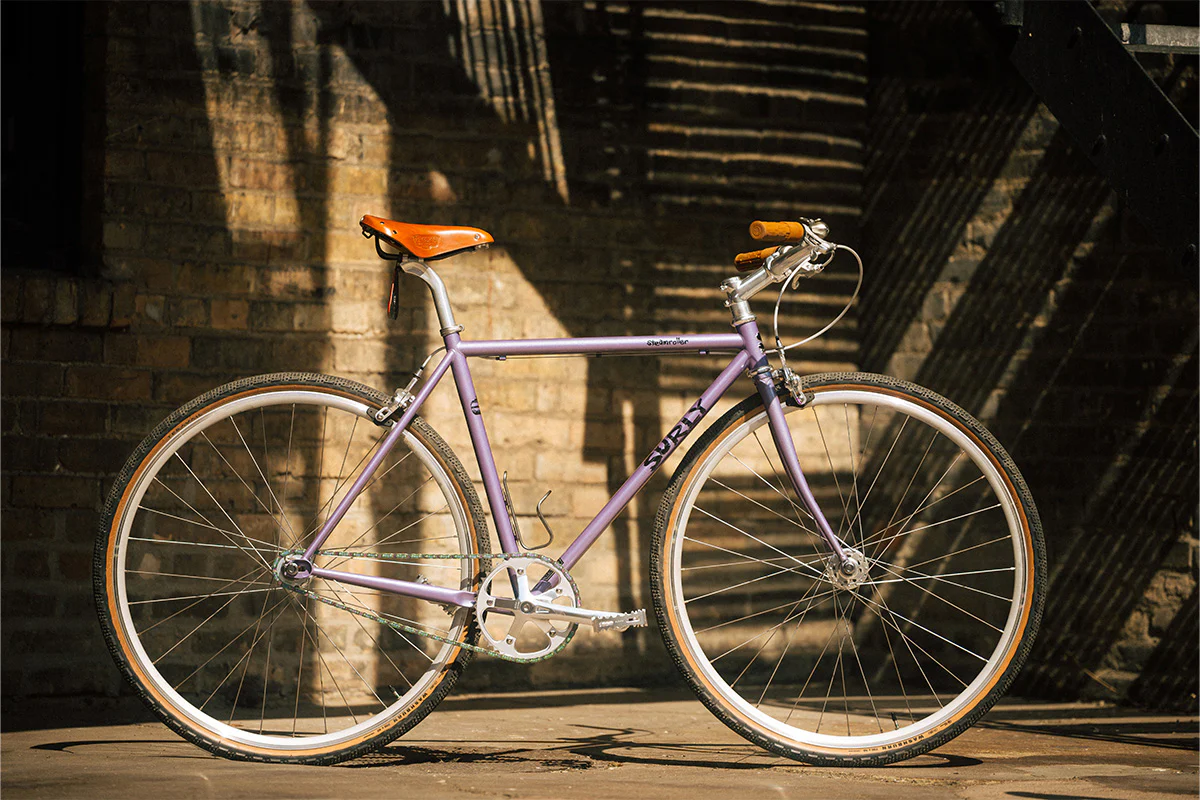

Steamroller is a dedicated single-speed/fixed-gear commuter bike that can handle potholes, grass shortcuts, urban trails, and back alleys like a champ. Steamroller mixes track-bike features like 120mm rear spacing and track crank compatibility with touches for nicer everyday riding, like road bike geometry, rim brake mounts, and new brake cable guides for cleaner rear brake routing. No derailleur hanger, no rack mounts, no need. This Steamroller comes only in frameset form — all the better to Make It Your Own.

Features

Road bike geometry with track bike features: 120mm rear spacing, track-legal BB height, track crank compatible

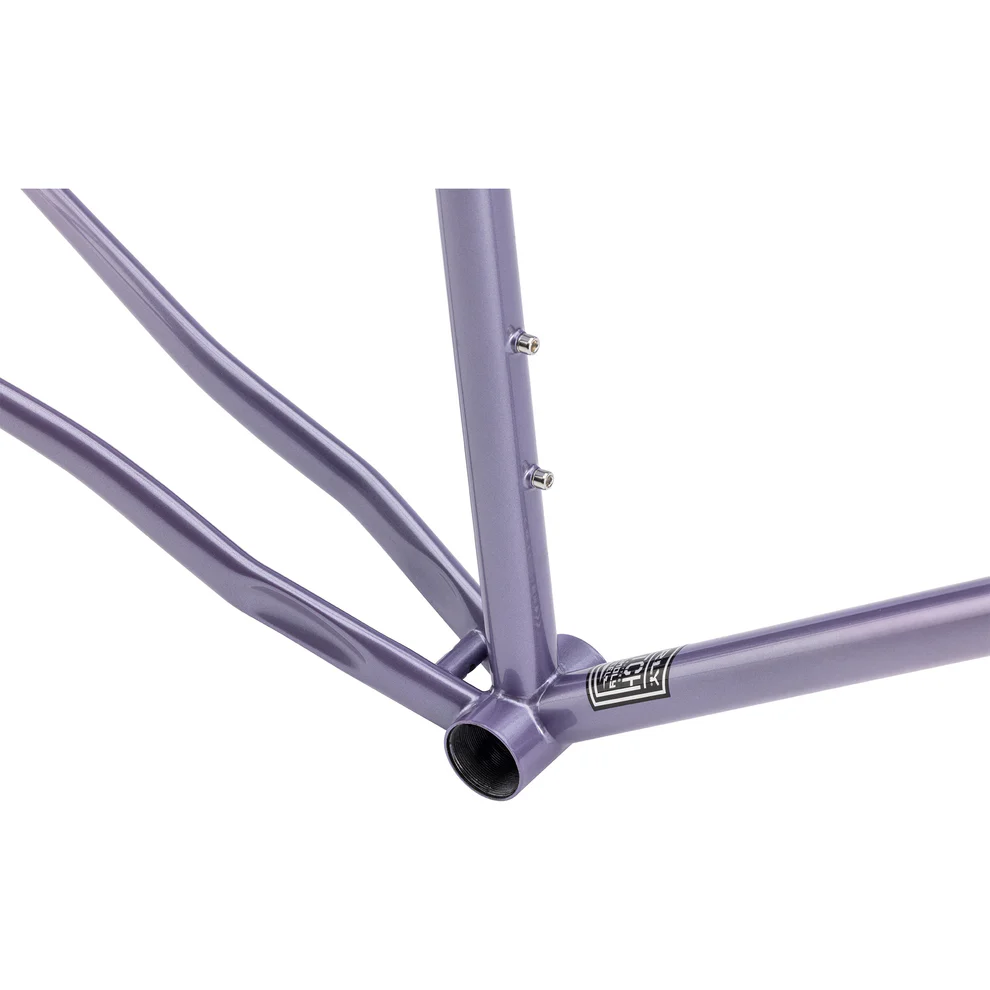

100% Surly 4130 chromoly steel frame and fork; double-butted main triangle, TIG-welded
Brake cable stops for cleaner rear brake routing
1-1/8" threadless chromoly steel fork, brazed

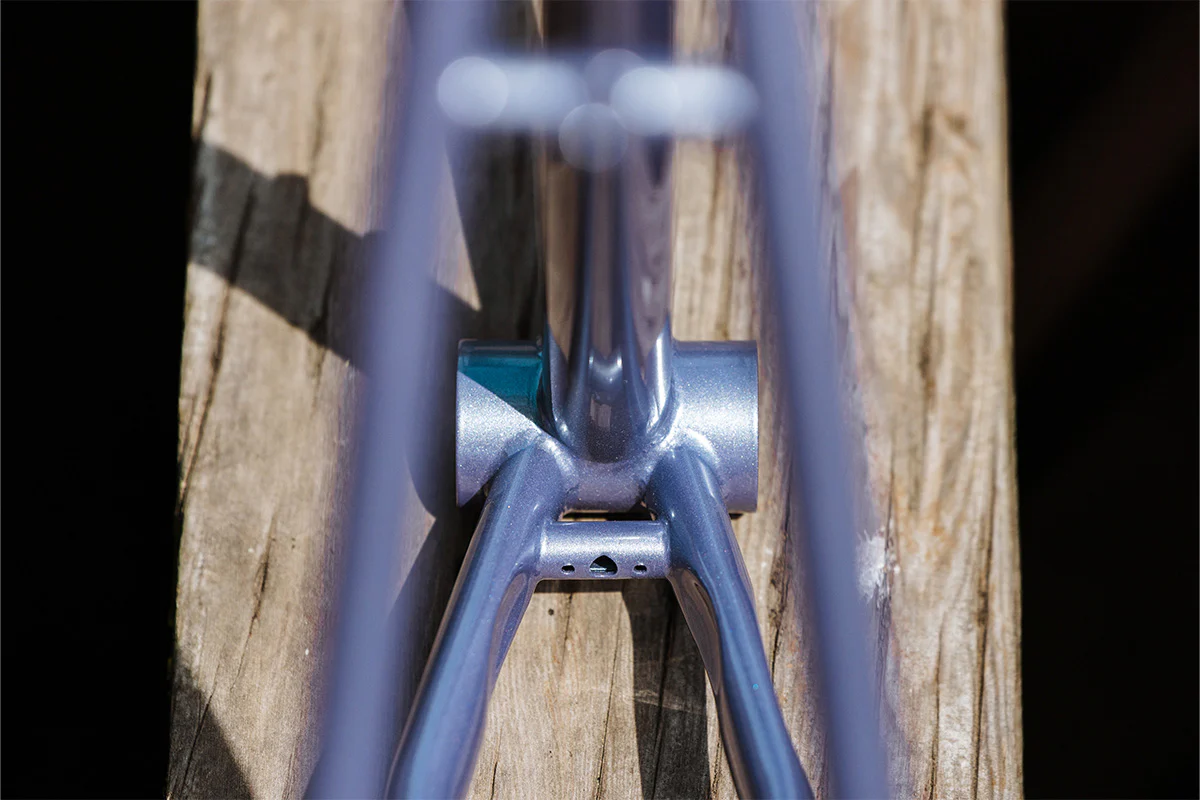

Fork and seatstay bridge drilled for mid-reach (47-57mm) caliper brakes
700c x 38mm maximum tire clearance without fenders (32mm with fenders — rear fender eyelets only)
One bottle cage mount
Frame is powder coated for a durable finish and E.D. coated for rust resistance

Specs

Frameset

Frame: Surly Steamroller - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Color: Anxious Lavender
Fork: Surly Steamroller - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, E.D. coated

Components

Seatpost Clamp: Surly Stainless 30.0mm

Drivetrain: N/A
Wheels: N/A

Weight

Frame: 7lb 2oz for 56cm

*Specifications are subject to change without notice

Frame Specs

Design Wheel/Tire Sizes: 700c x 32mm
Max Tire Outer Diameter: Frame & Fork Clearance:
700c x 32mm (w/ fenders)
700c x 38mm (w/o fenders)
Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, E.D. coated
Fork Offset: 38mm
Axle to Crown: 375mm

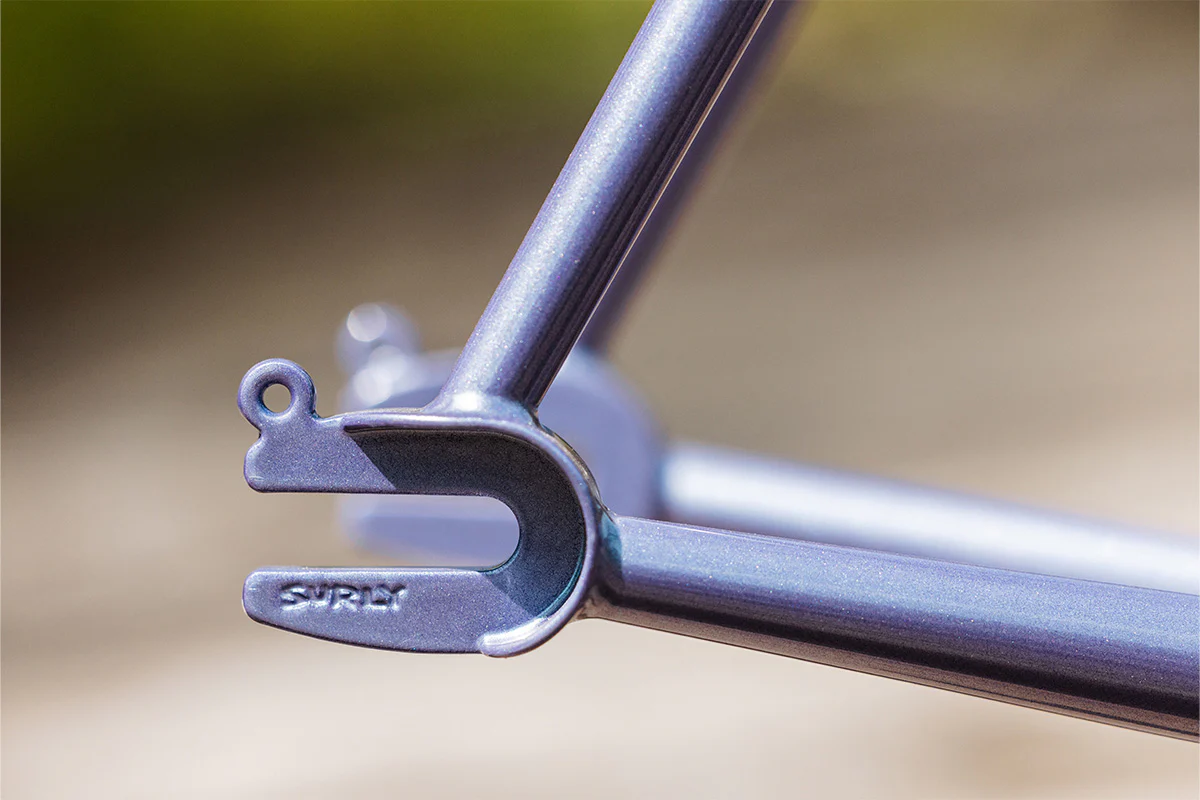

Rear Spacing: 10 x 120mm
Rear Brake (Rotor): Rim - Caliper (mid reach)
Front Brake (Rotor): Rim - Caliper (mid reach)
Headset - Upper: EC34/28.6
Headset - Lower: EC34/30
Front Spacing: 9 x 100mm
Steerer Tube: Ø28.6mm (1-1/8")
Crown Race: Ø30mm
Seatpost: Ø27.2mm
Seatpost Clamp: Ø30mm
Front Derailleur Clamp: N/A
Bottom Bracket: 68mm threaded (1.37" x 24TPI)
Crankset (Max Ring): 1x (Track): 50T
Bottle Mounts: Frame: 1 Standard
Fork Mounts: N/A
Front Fender Mounts: N/A
Rear Fender Mounts: Yes

Geometry

Size	49cm	53cm	56cm	59cm	62cm
A. Effective Top Tube	528	546	568	588	609
B. Stand Over	754	784	812	839	869
C. Reach	388	394	403	408	420
D. Stack	505	531	559	586	618
E. Total Seat Tube Length	515	555	585	615	645
F. Headtube Length	83	109	136	163	196
G. Headtube Angle	72.5	73.0	73.5	74.0	74.0
H. Seat Tube Angle	74.5	74.0	73.5	73.0	73.0
I. BB Drop	70	70	70	70	70
J. BB Height	275	275	275	275	275
K. Chainstay Length	398	398	398	398	398
L. Fork Length Axle to Crown	375	375	375	375	375
M. Fork Offset	38	38	38	38	38
N. Wheelbase	957	967	979	988	1008
Crank Arm Length
Handlebar Width
Recommended Rider Height	160 - 170	168 - 178	173 - 188	185 - 196	193 - 203
Stem Length
