The G30 is part of our 30mm spindle line of cranks which also includes the M30, A30 and R30 models. The “G” stands for gravel and the “30” is for the 30mm spindle.

The G30 uses White Industries M30 mountain crank arms mounted to their R30 road spindle so you get road/gravel chainlines but with a bit wider Q factor as well as more room between your crank arms and chainstays.  It is a direct replacement for most road and gravel cranks from the big “S” companies but with a lot more options.

Note: Spindle, crank bolts, extractors, adjusting collar, and chainring lockring included.  Chainrings and bottom bracket sold separately.

What’s in the box

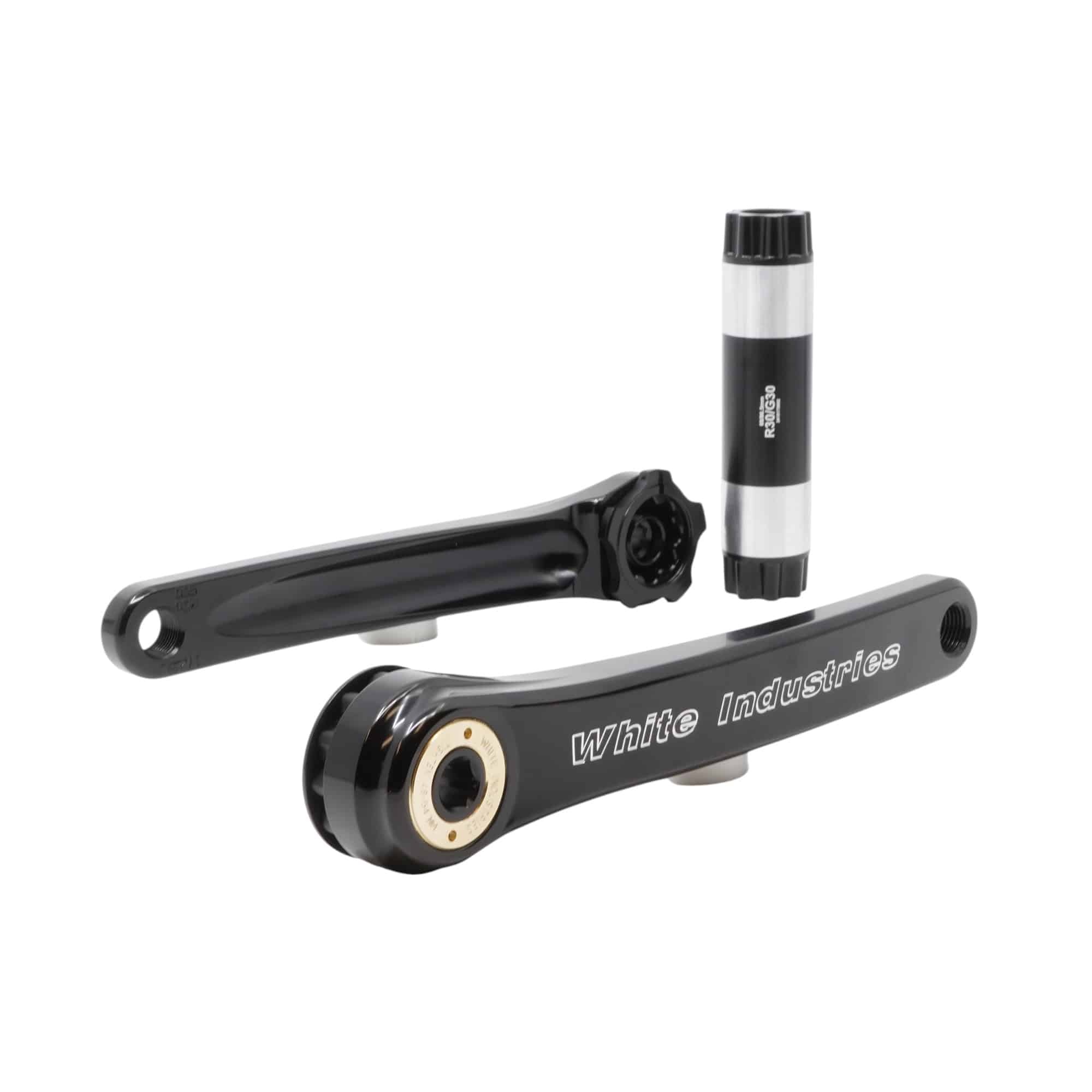

• Two crank arms and one spindle
  • Includes crank bolts and extractor caps (installed)
  • Includes chainring mounting lockring
  • Includes crank/preload adjuster
• Does not include bottom bracket
• Does not include chainring

Specs

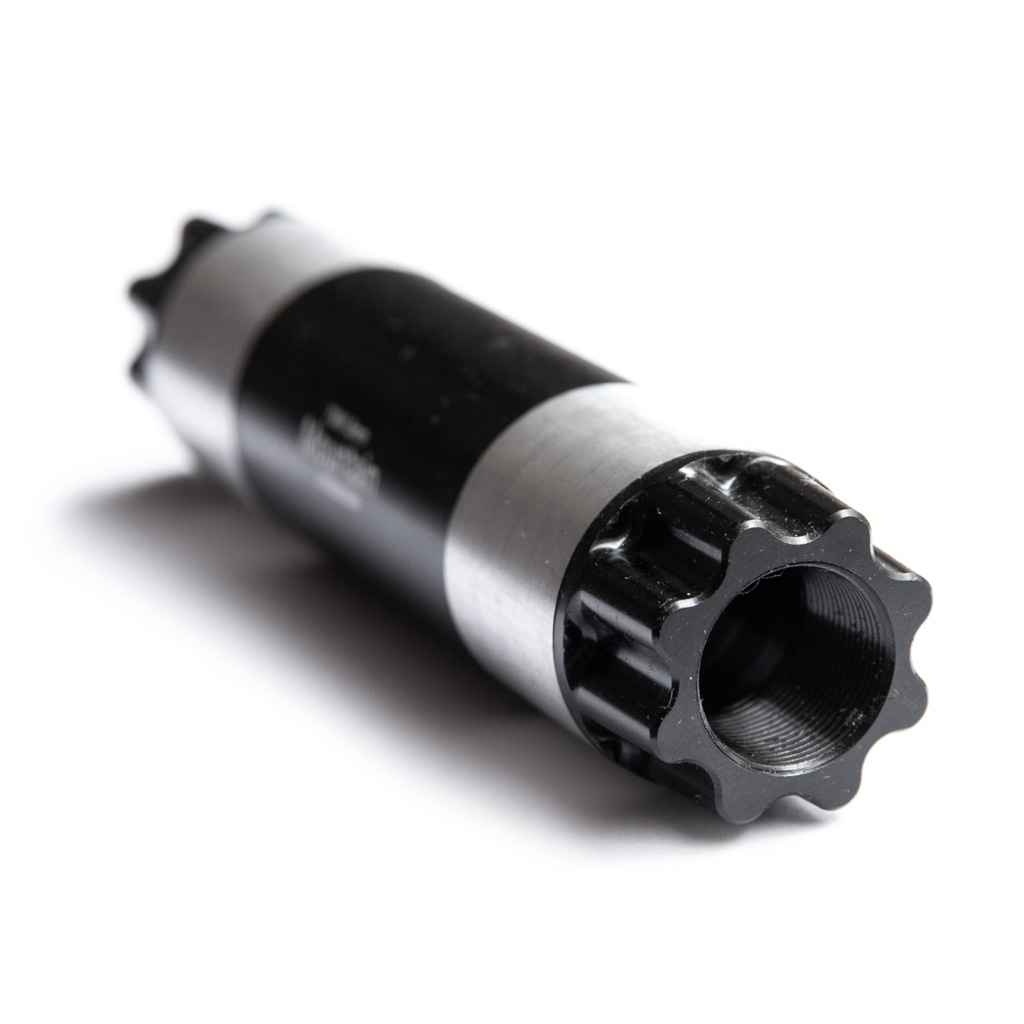

• Spindles are 30mm diameter
• Arms and spindles made in our shop from 2024-T365 aluminum
• Black anodized or polished silver (not anodized)
• Extractor caps
  • Anodized aluminum: black, blue, gold, pink, purple, red, and silver
  • Bronze (actually made out of bronze)
• Lengths
  • 155mm, 160mm, 165mm, 170mm, 172.5mm, and 175mm
• Weight
  • 570g (175mm length w/spindle)

Tools

• Crank arm mounting bolts
  • Torque wrench (min 40 ft lbs or 54 Nm)
  • 10mm hex bit socket
• Chainring lockring
  • Park BBT-22 or Shimano BBT-32
• Bearing preload collar
  • 1.5mm hex key

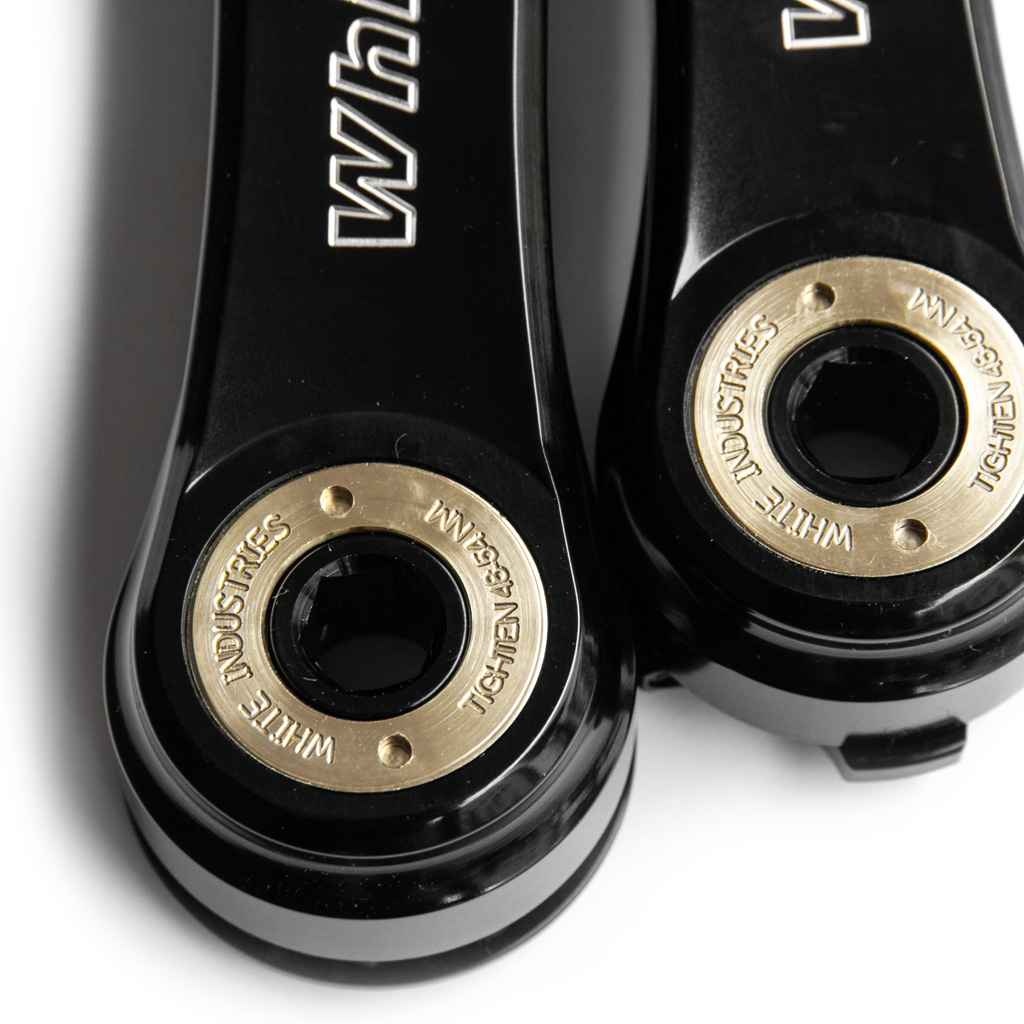

• Extractor cap
  • Park SPA-2 pin spanner with .090”/2.3mm pins (this is the red one)

Torque

• Chainring lockring: 30 ft lbs (40 Nm)
• Crank arms: 35-40 ft lbs (48-54 Nm)
  • We recommend retorquing arms after the first ride
• Bearing preload collar bolt: ¼ turn past snug (more may crack the collar)
• Extractor caps: As tight as feels comfortable without the pin spanner slipping out of the holes.

Compatibility

• Compatible White Industries chainrings:
  • MR30 series TSR 1X chainrings
  • MR30 series v1 VBC 2X and v2 VBC 2x chainrings
• Compatible with Wolf Tooth “CAMO Direct Mount Spider For White Industries”
• Not compatible with any other brands of chainrings
• Compatible with 5 different White Industries 30mm bottom bracket options
  • Choose the 30mm bearing option for your style of bottom bracket
• Compatible with other brands’ 30mm bottom brackets
  • You must verify that their cups’ OBW (Outer Bearing Width) when mounted (with seals) does not exceed 92mm
• Designed around a 91mm +/- 1mm OBW (Outer Bearing Width)
  • OBW is the allowable outside-to-outside measurement of your bottom bracket assembly (with seals) when they are mounted to your frame.  The bearing preload collar on the crank is adjustable and can accommodate slightly wider or narrower widths (+/- 1mm) than the target number.

*55mm chainline for Rohloff and Super Boost hubs

**This is the allowable outside-to-outside measurement of your BB bearings (with seals) when they are mounted to your frame.  The bearing preload collar on the crank is adjustable and can accommodate slightly wider or narrower widths (+/- 1mm) than the target number.
