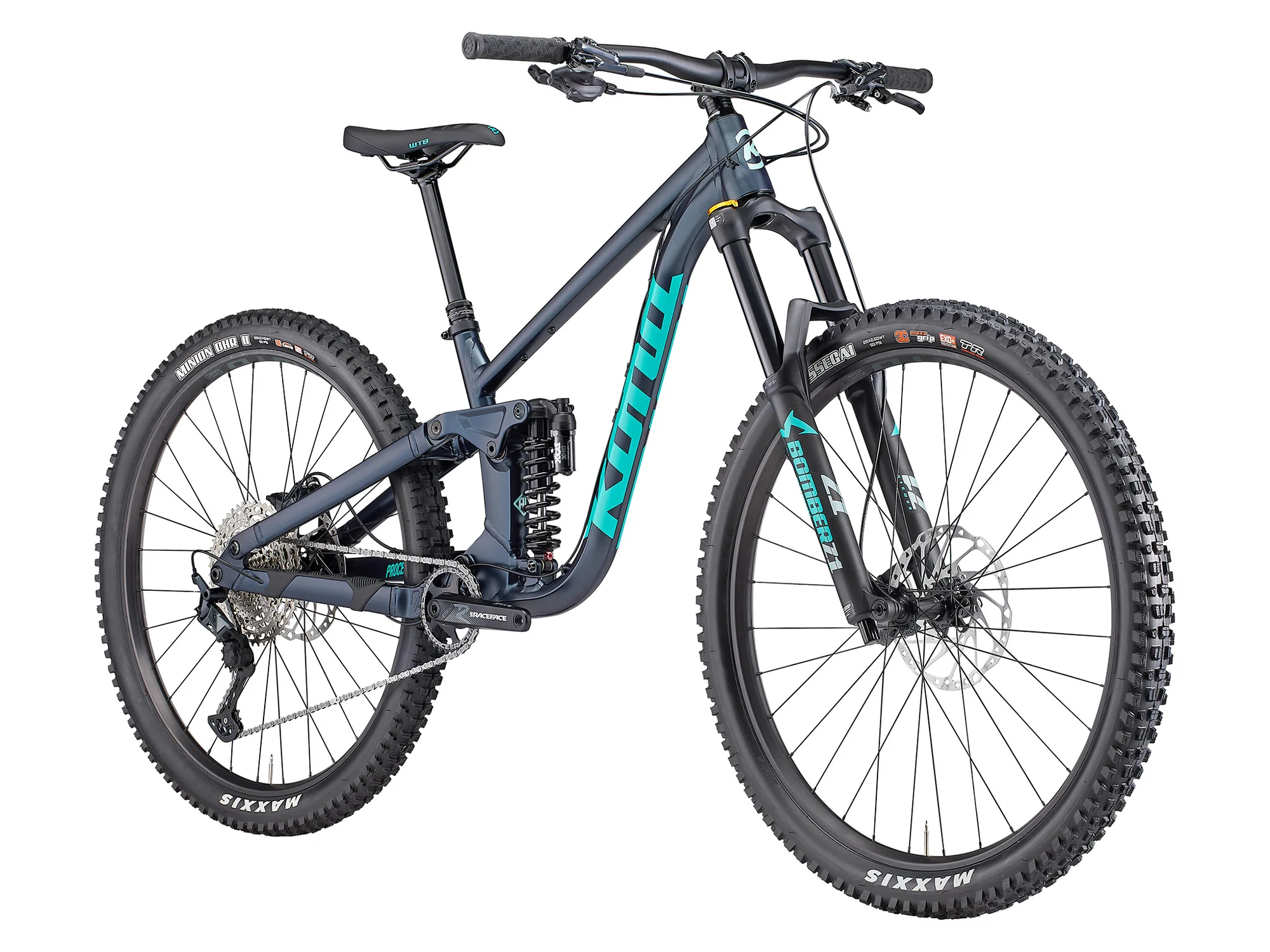

The carbon Process X has been a wildly popular bike. It turns out that people still love longer travel bikes, but don’t always want to pay more for bigger travel. We took the motivation behind creating the original Process X bikes and created the all-new aluminum Process X. Perhaps you like the feel of aluminum or you’re a fan of its durability. The aluminum Process X puts a focus on big time fun in a bike that doesn’t cost six months’ worth of paychecks to acquire.

GEOMETRYmminches

	SIZE	S	M	L	XL
1	ST LENGTH	380	380	420	450
2	TT LENGTH	569	594	623	662
3	REACH	440	465	490	525
4	STACK	632	632	637	641
5	STANDOVER	700	700	710	720
6	HT ANGLE	63.5	63.5	63.5	63.5
7	HT LENGTH	110	110	115	120
8	ST ANGLE	77.9	77.9	77.8	77.8
9	CS LENGTH	440	440	440	440
10	BB DROP	20	30	30	30
11	BB HEIGHT	345	345	345	345
12	WHEELBASE	1221	1246	1276	1316
13	FRONT CENTER	783	808	838	878
14	FORK LENGTH	585	585	585	585
15	FORK OFFSET	44	44	44	44
