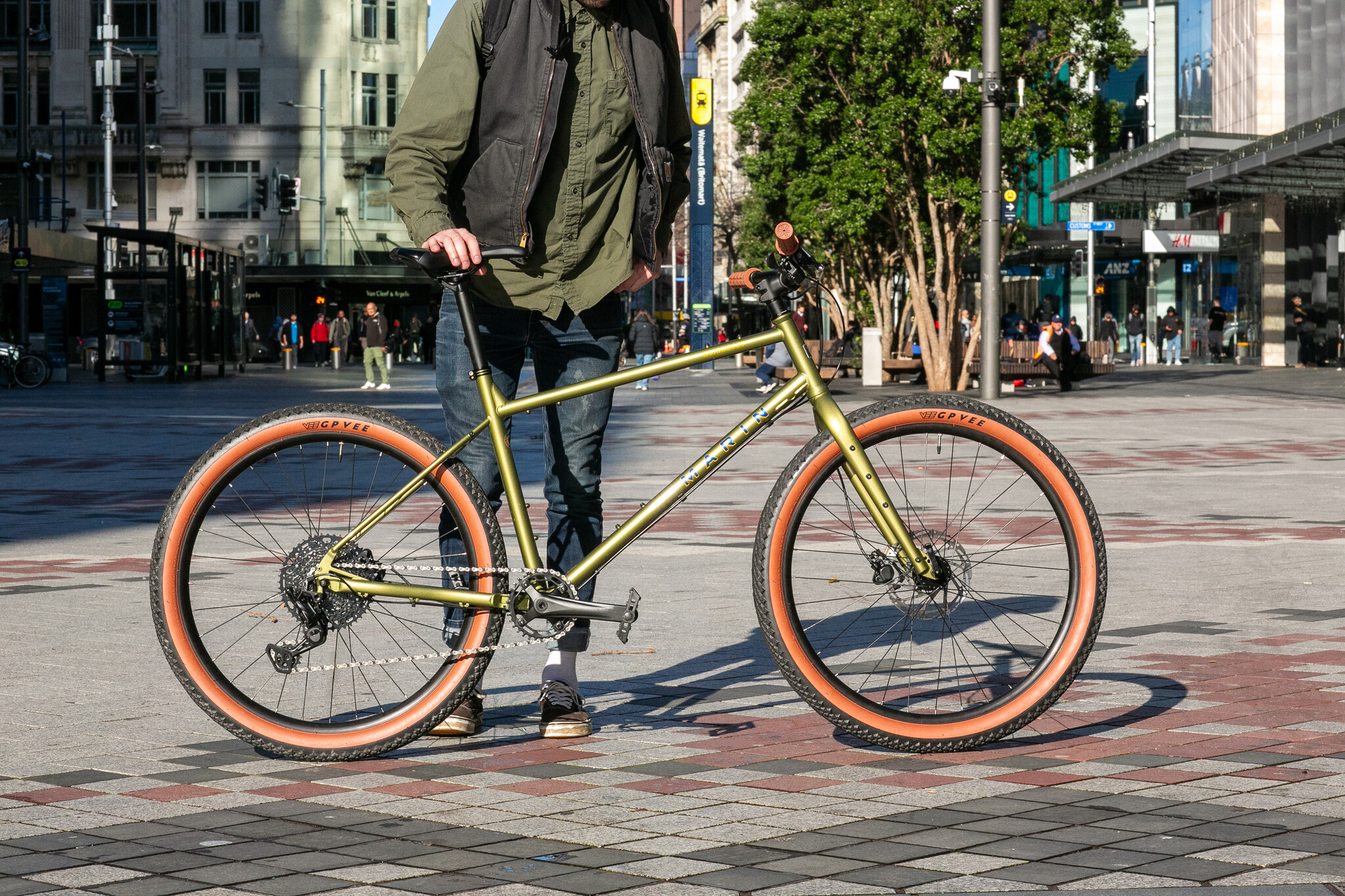

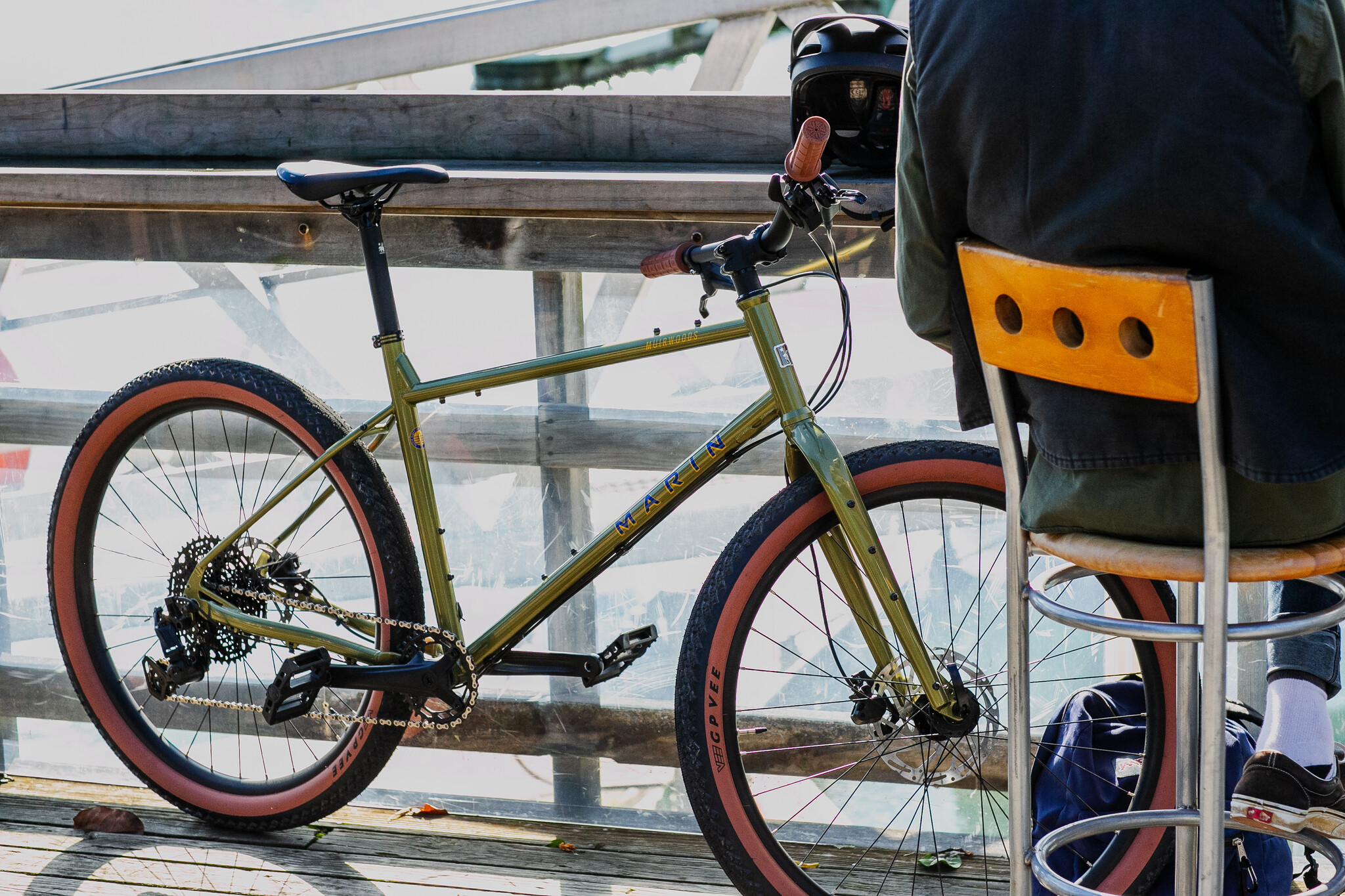

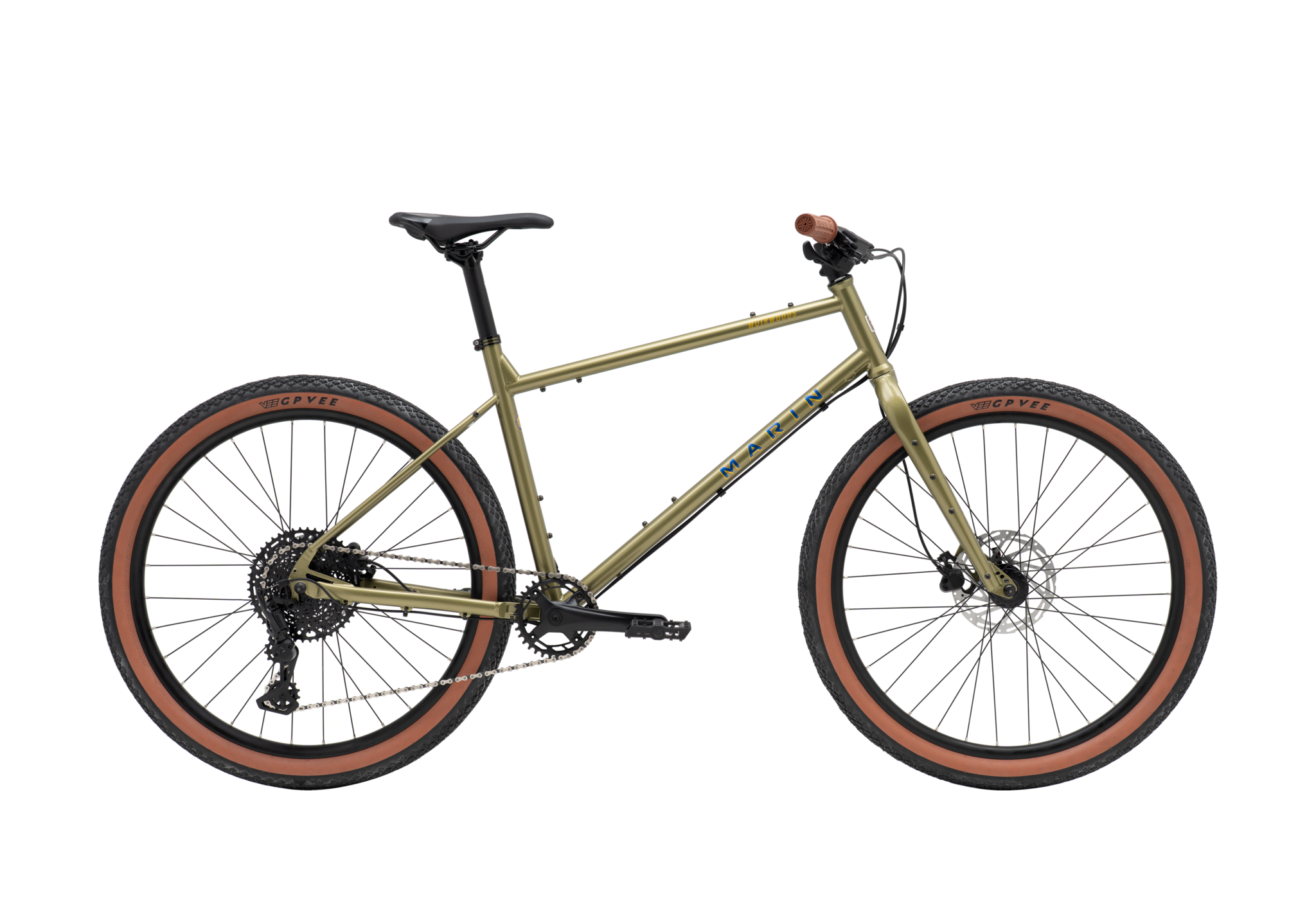

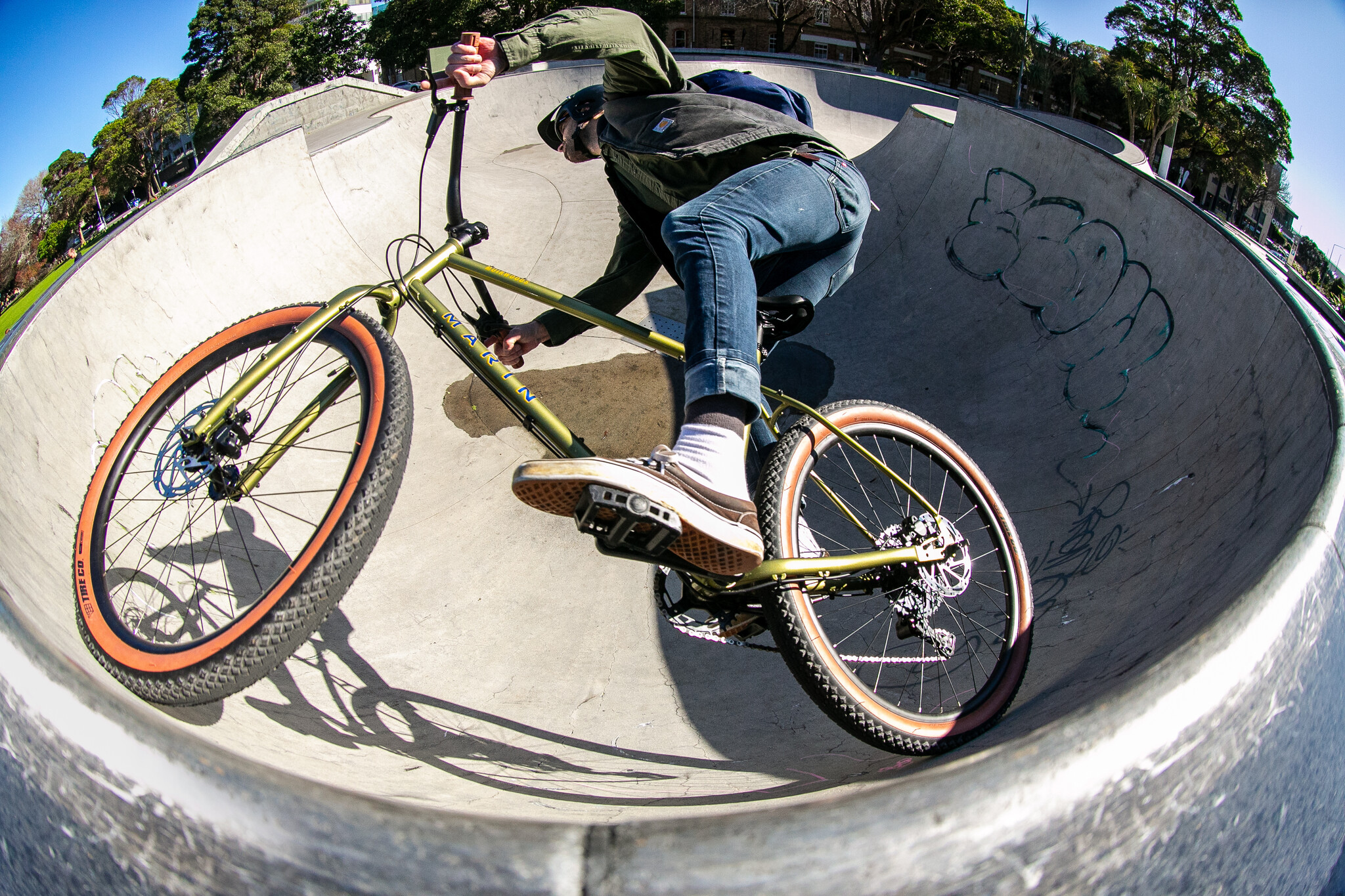

Travel the fun way with the new Marin Muirwoods. Modern transport for the urban jungle and countryside adventures.



Fork: Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Frame: Steezy Butted CrMo, 27.5” Wheels, Integrated Headset, Disc Brake, Fender and Rack Mounts, 141mm Axle
Rim: Marin Aluminum, Double Wall, Disc Specific
Hub Rear: Forged Aluminum Alloy, Disc, 141mm Spacing, 32H
Hub Front: Forged Aluminum Alloy, Disc, 110mm Spacing, 32H
Spokes: 14g Black Stainless Steel

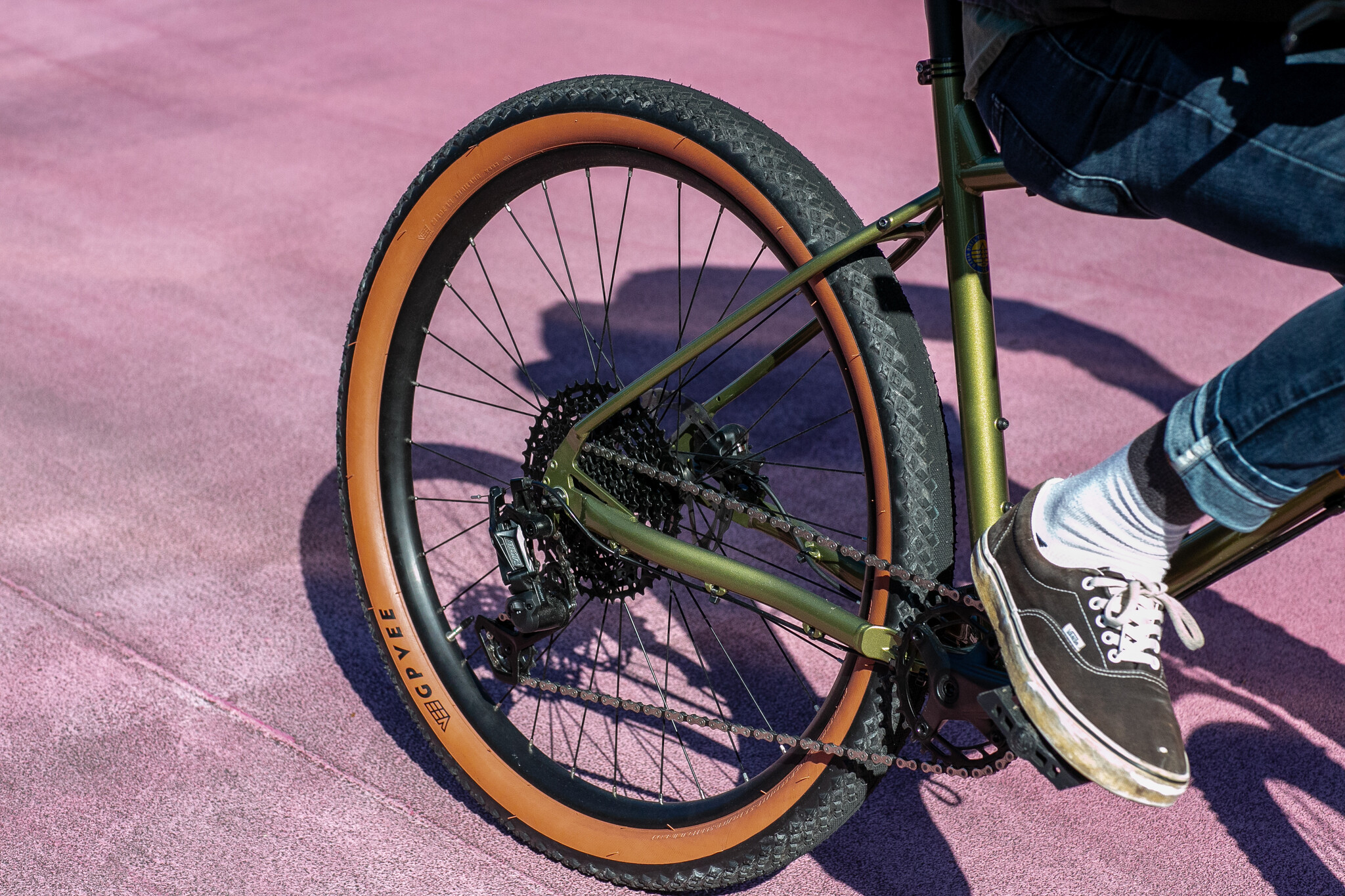

Tires: Vee Tire, GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready
Derailleur Rear: microSHIFT Advent X 10-Speed
Shift Lever: microSHIFT Advent X 10-Speed Trail
Crankset: Forged Alloy Crank, Steel Narrow Wide 38T Chainring
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Chain: KMC X10
Cassette: SunRace 10-Speed, 11-51T
Brakes Front: Tektro M275 Hydraulic Disc, 180mm Rotor
Brakes Rear: Tektro M275 Hydraulic Disc, 160mm Rotor
Brake Levers: Tektro M275 Hydraulic
Handlebar: Marin Alloy Mini Riser
Stem: Marin Alloy, 31.8mm Clamp
Grips: Marin Custom
Headset: FSA No.8B, Sealed Cartridge Bearings
Seatpost: Marin Alloy, 27.2mm
Saddle: Marin MTB
Pedals: Nylon Platform





		S	M	L	XL
A	Stack	527.7	545.8	563.9	582
B	Reach	430	450	475	505
C	Headtube angle	65°	65°	65°	65°
D	Headtube length	130	150	170	190
E	Seattube length	380	430	480	520
F	Seattube angle	76°	76°	76°	76°
G	Toptube effective	561.5	586.1	615.6	650.1
H	Bb height	308.5	308.5	308.5	308.5
I	Bb drop	55	55	55	55
J	Chainstay	425	425	425	425
K	Wheelbase	1121.5	1149.9	1183.4	1221.8
L	Standover height	642.7	686.3	726.9	750.1
M	Fork offset	45	45	45	45
N	Seatpost diameter	30.9	30.9	30.9	30.9
O	Handlebar width	780	780	780	780
P	Stem length	35	35	35	35
Q	Crank length	170	170	170	170
