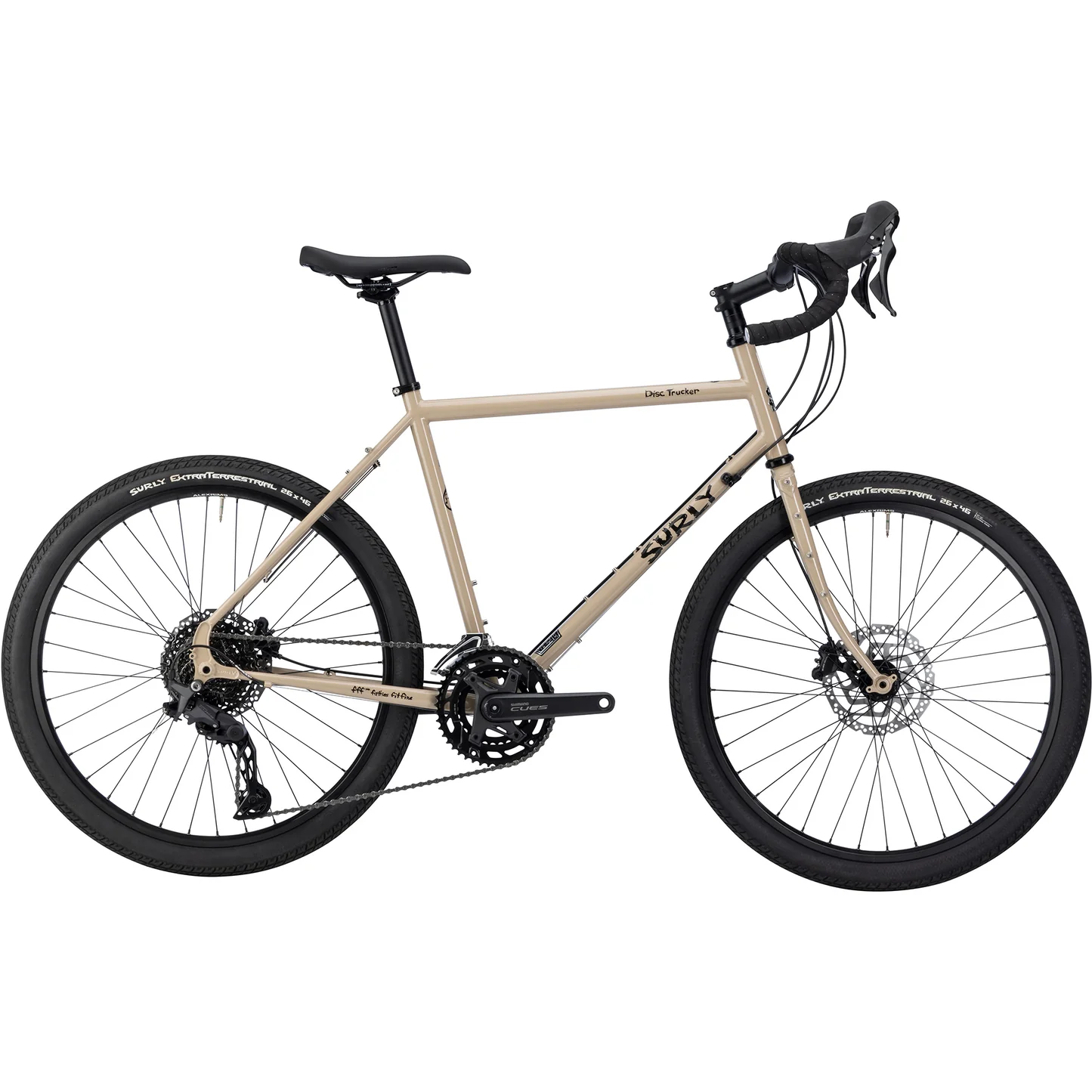

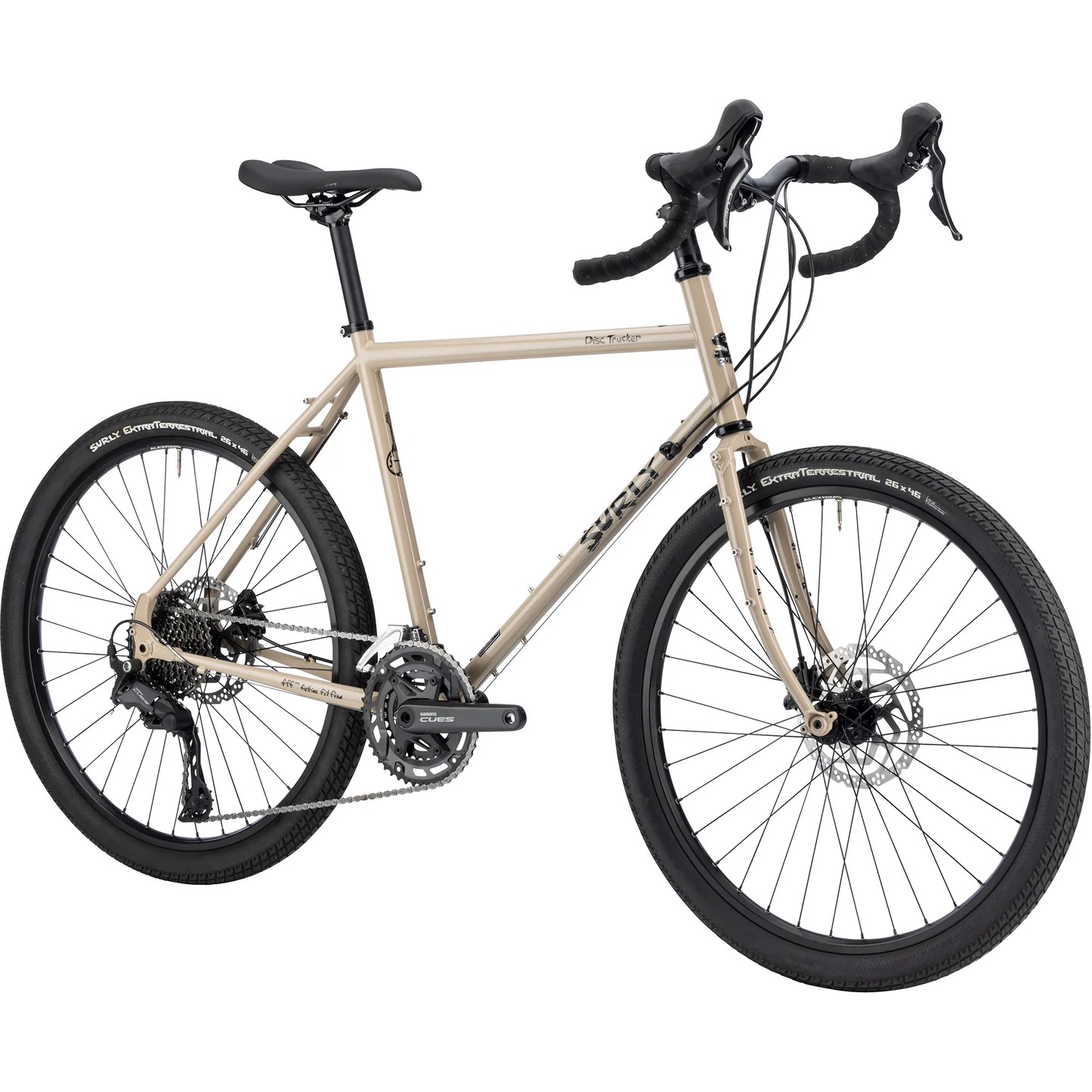

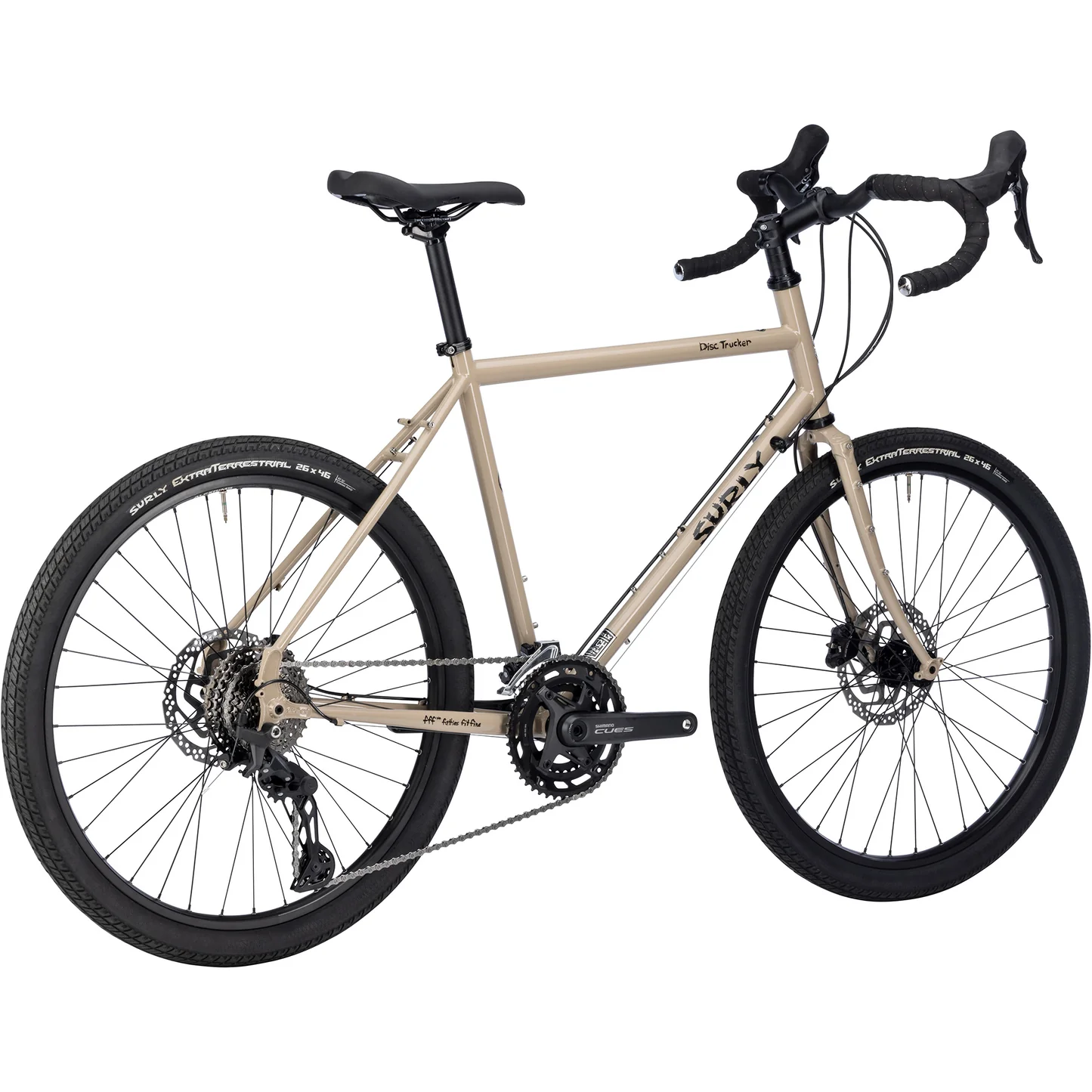

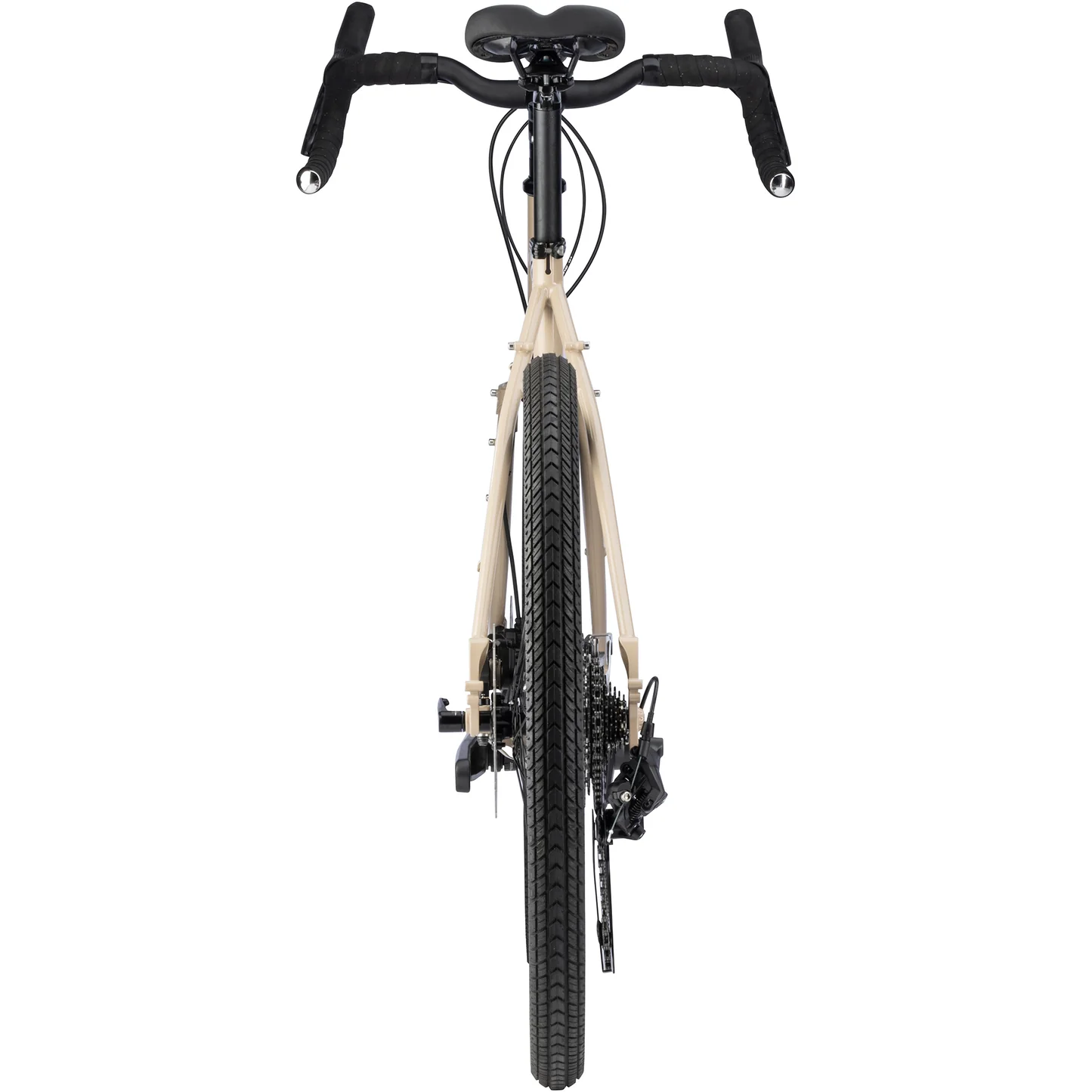

The 26" Disc Trucker is built for long-distance touring and everyday utility, offering the familiar smooth feel of Surly’s steel construction with updated braking power and improved handling under load. Its shorter chainstays, thru‑axles, and refined geometry create a stable, responsive ride whether you’re navigating city streets or carrying gear across varied terrain. With extensive mounting options, generous tire clearance, and components chosen for durability, it’s designed to support big miles and daily demands alike.
- Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more
- 12mm thru-axles for a stiffer feel and increased stability when fully loaded
- Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
- Spec’d with the Truck Stop Bar and tubeless ExtraTerrestrial tires for dependable handling and traction

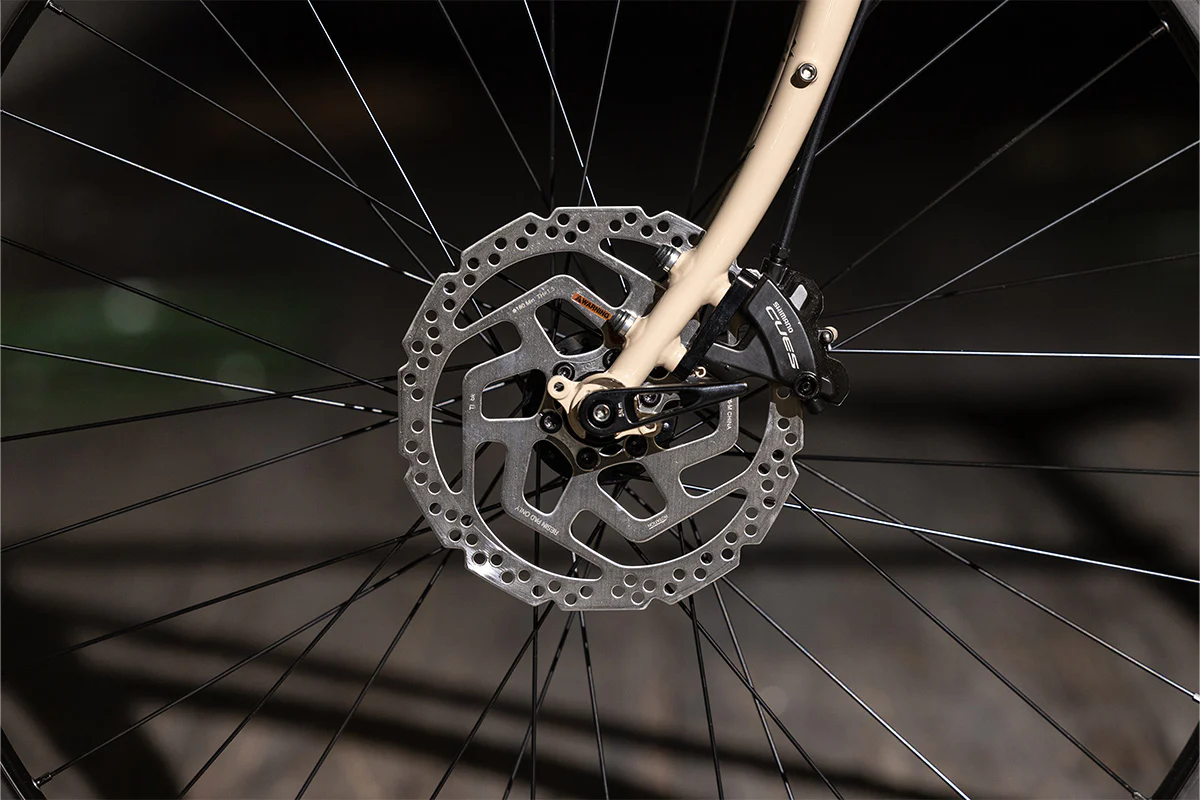

- Flat-mount hydraulic disc brakes

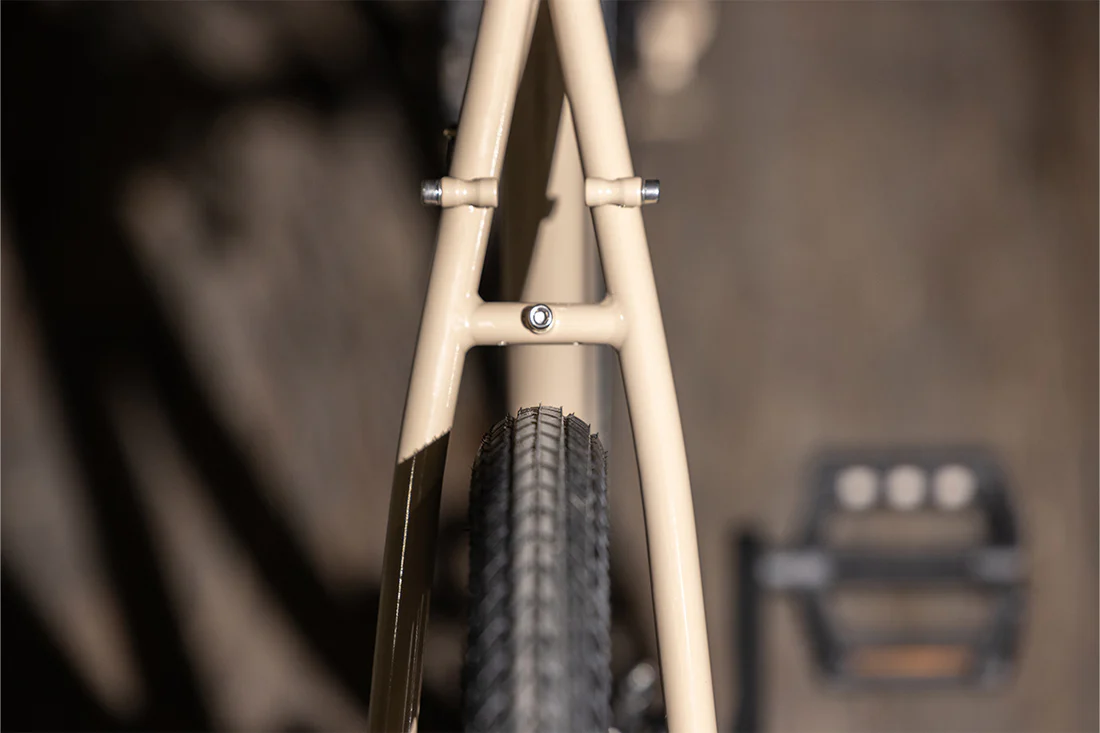

- Seat stay mounted spoke holder
- Surly removable kickstand plate included
- Frame sizes 42–54cm are available with 26” diameter wheels, while frame sizes 56–64cm are available with 700c diameter wheels

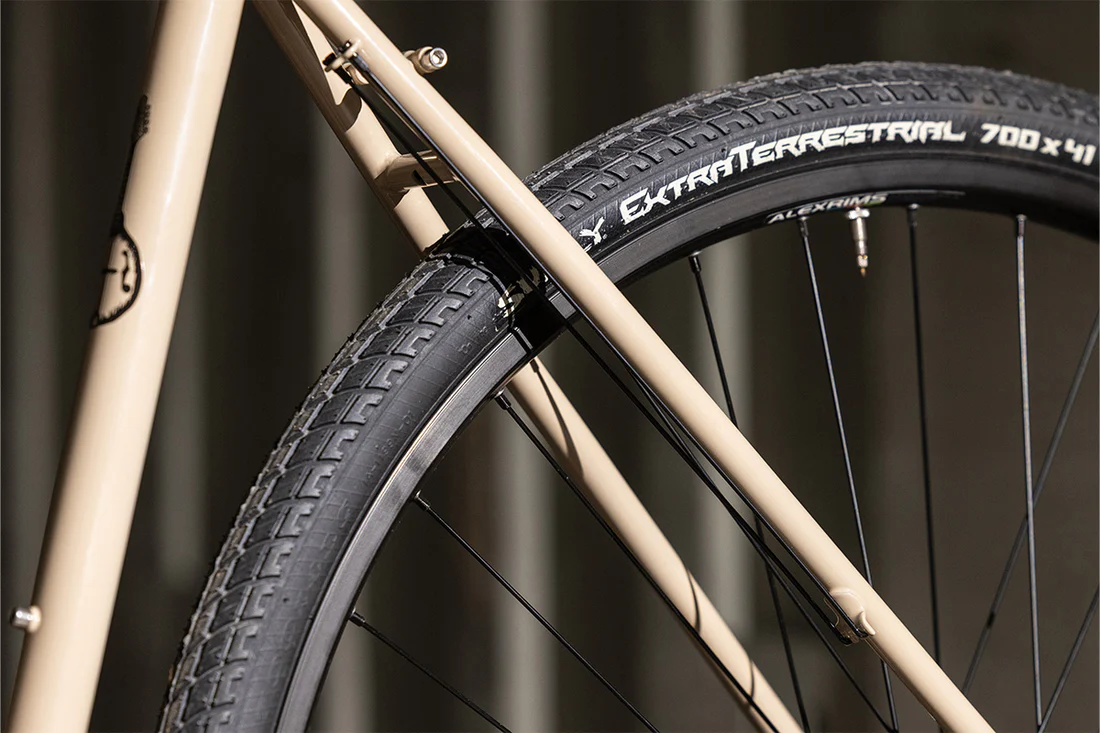

- Clearance for 26” x 2.1” (42-54cm sizes) tires with or without fenders, or 700c x 47mm (56-64cm sizes) with or without fenders
Specs
Frameset
- Frame: Surly Disc Trucker - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- Color: Grandpa's Khakis

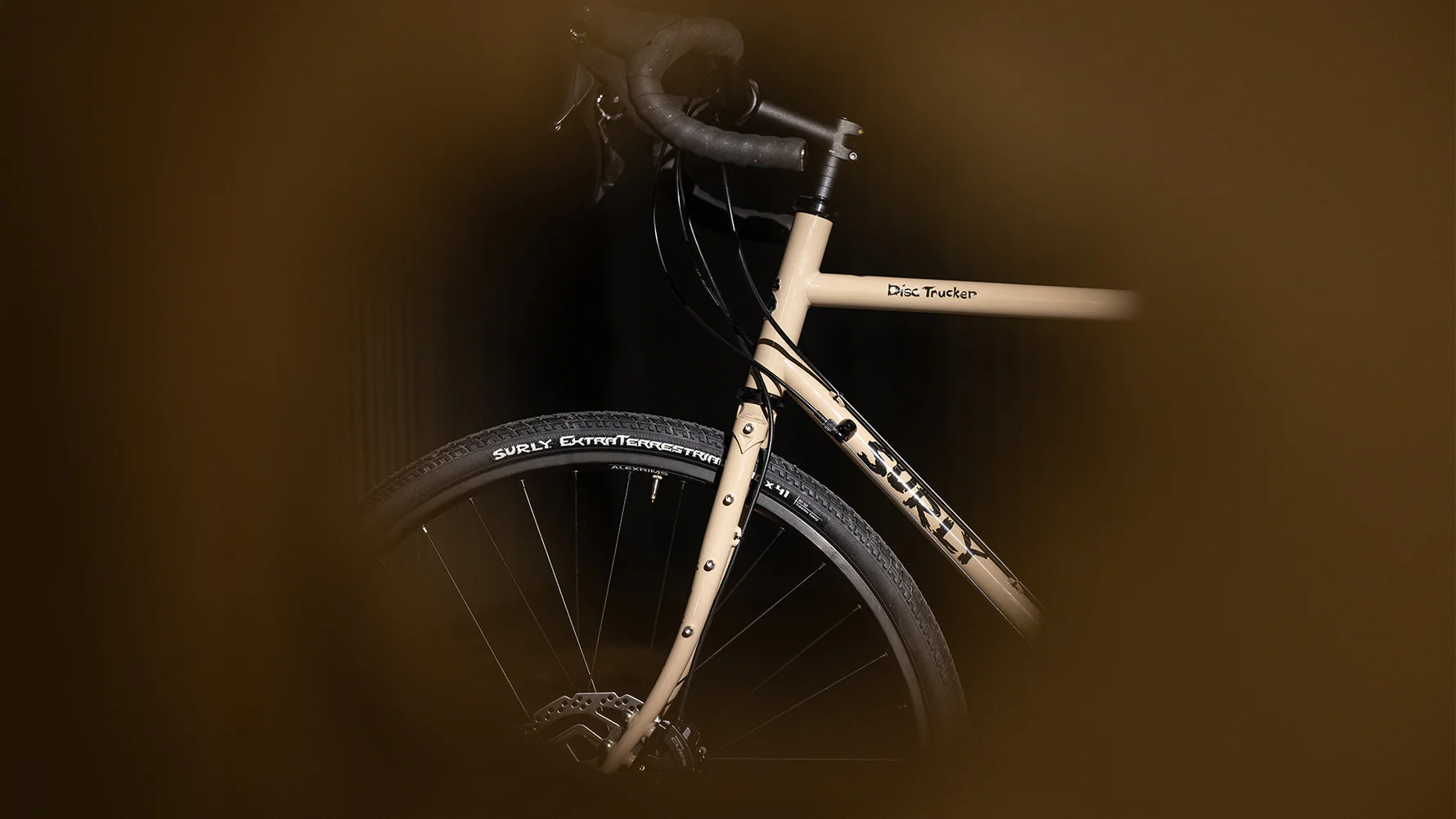

- Fork: Surly Disc Trucker - 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, brazed lugs, E.D. coated
Components
- Headset: FSA Orbit MX
- Seatpost Clamp: Surly Stainless, 30.0mm
- Seatpost: Promax 27.2 x 350mm
- Stem: Promax DA-296, 31.8mm
- Grips/Bar Tape: Velo Black Cork
- Saddle: WTB Volt Wide OR WTB Rocket Medium Fusion

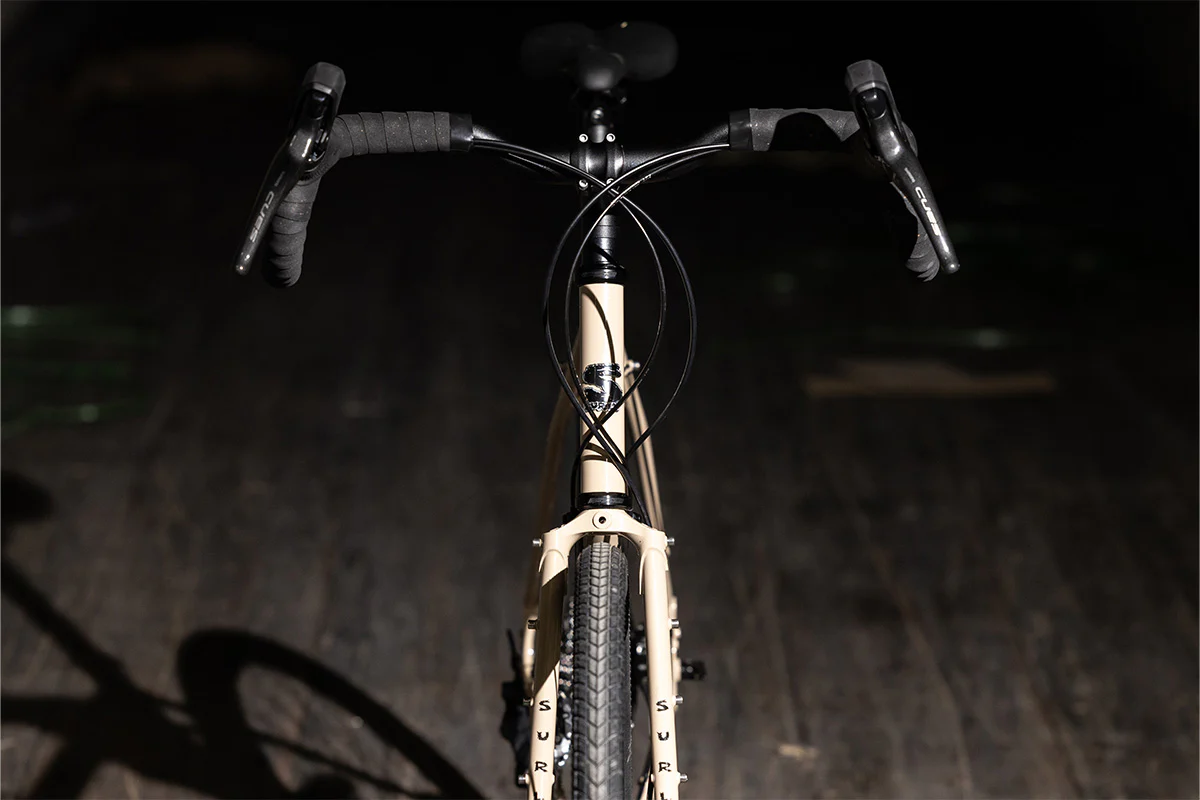

- Handlebar: Surly Truckstop

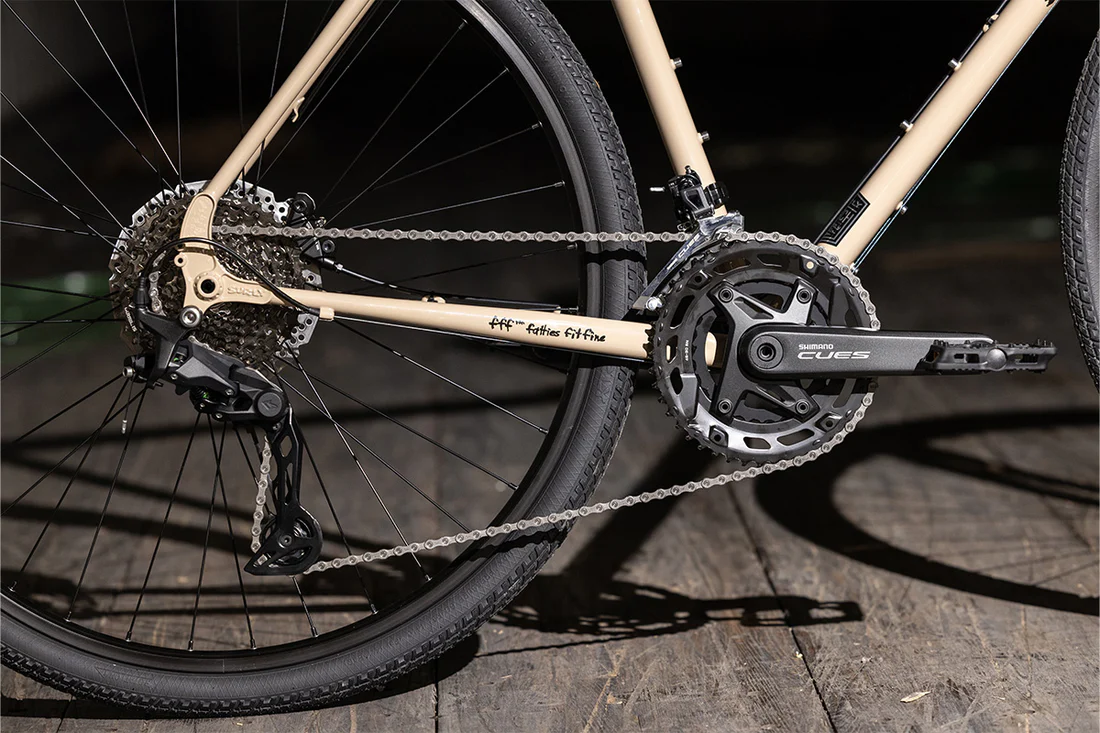

Drivetrain
- Front Derailleur: Shimano CUES U6010
- Rear Derailleur: Shimano CUES U6020 SGS
- Cassette: Shimano CUES LG400, 11-39t, 10-speed
- Chain: Shimano LG500
- Crankset: Shimano CUES U6000, 46/30T
- Shifter: Shimano CUES U6030
- Brake Levers: Shimano CUES U6030
- Brake Calipers: Shimano CUES U6030
- Bottom Bracket: Shimano UR400 BSA
- Rotors: Shimano RT26 180/180, 6-Bolt
Wheels
- Front Tire: Surly ExtraTerrestrial 26" x 46mm, 60tpi
- Rear Tire: Surly ExtraTerrestrial 26" x 46mm, 60tpi
- Front Hub: Novatec 12 x 100mm, 6-bolt, 36h
- Rear Hub: Novatec 12 x 142mm, 6-bolt, 36h
- Spoke: 14 Gauge Stainless
- Rim: Alex Adventurer 2 26", 36h
Weight
- Complete Bike: 28 lb 7 oz for 52cm
*Specifications are subject to change without notice
Geometry
| Size |
42cm |
46cm |
50cm |
52cm |
54cm |
| A. Effective Top Tube |
500.0 |
515.0 |
530.0 |
545.0 |
560.0 |
| B. Stand Over |
710.0 |
731.0 |
766.0 |
782.0 |
800.0 |
| C. Reach |
362.0 |
371.0 |
369.0 |
374.5 |
378.0 |
| D. Stack |
515.0 |
520.0 |
561.0 |
575.5 |
594.5 |
| E. Total Seat Tube Length |
420.0 |
460.0 |
500.0 |
520.0 |
540.0 |
| F. Headtube Length |
125.0 |
130.0 |
170.0 |
185.0 |
205.0 |
| G. Headtube Angle |
70.0
|
70.0
|
71.0
|
71.0
|
71.0
|
| H. Seat Tube Angle |
75.0
|
74.5
|
74.0
|
73.5
|
73.0
|
| I. BB Drop |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
| K. Chainstay Length |
450.0 |
450.0 |
450.0 |
450.0 |
450.0 |
| L. Fork Length Axle to Crown |
376.0 |
376.0 |
376.0 |
376.0 |
376.0 |
| M. Fork Offset |
45.0 |
45.0 |
45.0 |
45.0 |
45.0 |
| N. Wheelbase |
1026.0 |
1037.0 |
1040.0 |
1050.0 |
1060.5 |
| Crank Arm Length |
170.0 |
170.0 |
170.0 |
170.0 |
170.0 |
| Handlebar Width |
420.0 |
420.0 |
420.0 |
450.0 |
450.0 |
| Recommended Rider Height |
152.0 - 163.0 |
155.0 - 165.0 |
158.0 - 168.0 |
163.0 - 172.0 |
168.0 - 178.0 |
| Stem Length |
70.0 |
70.0 |
70.0 |
90.0 |
100.0 |
Frame Specs
- Design Wheel/Tire Sizes: 26 x 2.0" or 700c x 47mm
- Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, E.D. coated
- Rigid Fork Length: 26": 376mm / 700c: 390mm
- Fork Offset: 45mm (26" & 700c)
- Axle to Crown: 26": 376mm / 700c: 390mm
- Rear Spacing: 12x142 (Axle included)
- Rear Axle Size: Ø12 x 162, TP=1.5, TL=12
- Rear Brake (Rotor): Disc - Flat Mount 140/160 (180mm max) – 25mm thick mount
- Front Brake (Rotor): Disc - Flat Mount 140/160 (180mm max) – 25mm thick mount
- Headset - Upper: EC34/28.6
- Headset - Lower: EC34/30
- Front Spacing: 12x100 (Axle included)
- Front Axle Size: Ø12 x 118.5, TP=1.5, TL=12
- Steerer Tube: Ø28.6mm (1-1/8")
- Crown Race: Ø30mm (1-1/8")
- Stem Clamp: Ø28.6mm (1-1/8")
- Seatpost: Ø27.2mm
- Dropper Post Compatible: No
- Seatpost Clamp: Ø30mm
- Front Derailleur Type: Bottom-pull (Ø28.6mm)
- Bottom Bracket: 68mm threaded (1.37" x 24TPI)
- Crankset (Max Ring): 1x (Road): 47T / 2x (Road): 34/50T / 3x (Road): 33/47/56T
- Accessory Mounts: Seatstay mounted spoke holder, Surly removable kickstand plate included with complete bikes
- Bottle Mounts: 3 Standard
- Fork Mounts: 2 Three-Pack, Rack mounts: upper, lower, and mid-blade threaded
- Front Fender Mounts: Yes
- Rear Fender Mounts: Yes
