All-City

All-City Big Block Frameset

$949.00

In stock (1)

Possibly the last steel track bike you'll ever need! The Big Block is fast, stable and fun. A Bike and Brew favourite!

Color:

Size:

Add to compare Add to wishlist

Description

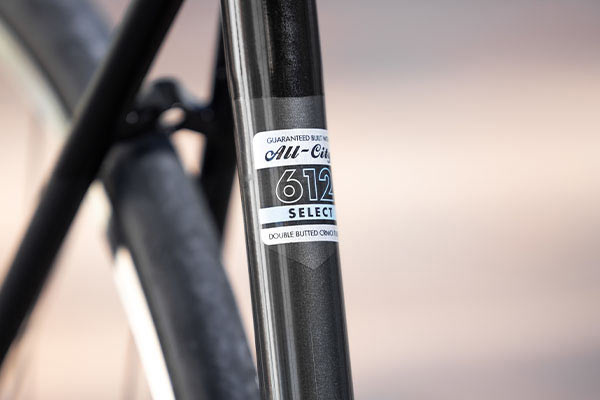

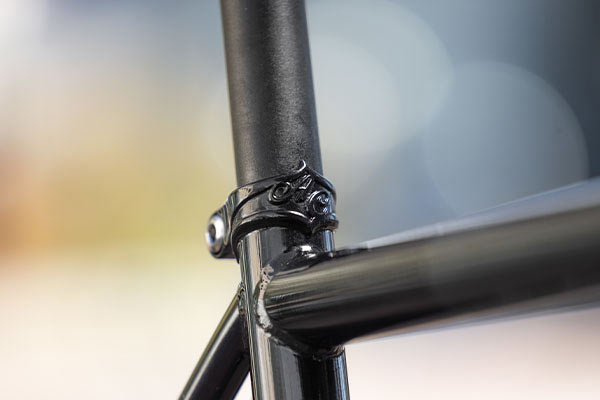

612 Select chromoly steel with double-butted main triangle, tapered stays and brazed-on seat collar

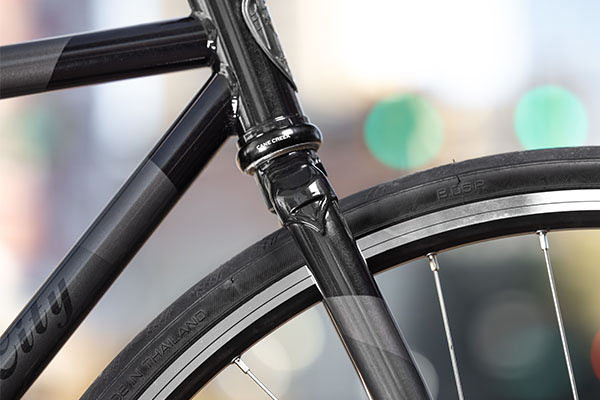

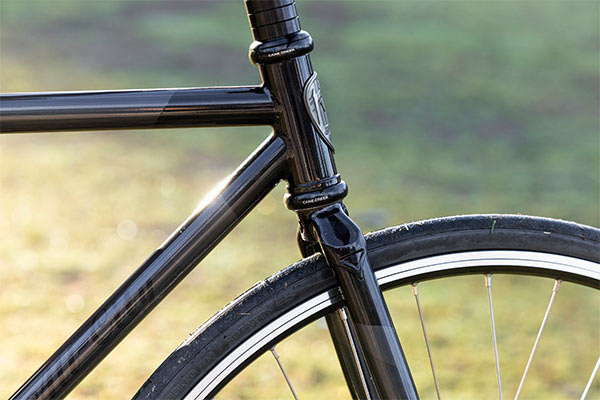

4130 Chromoly double butted fork with lugged crown and tapered blades
Velodrome legal track geometry

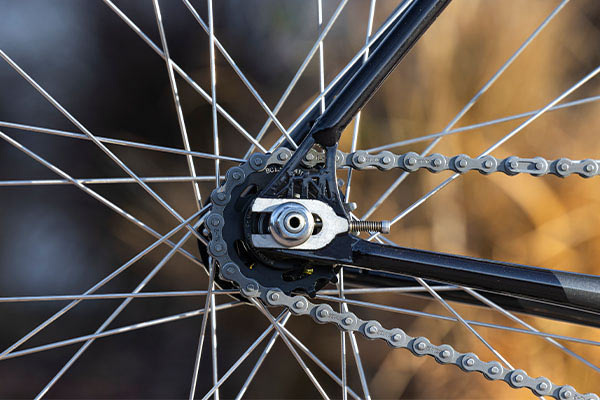

All-City Signature investment-cast stainless steel Hennepin Bridge track dropouts with built-in chain tensioner
E.D. coated for durability and rust prevention
Tire clearance: 700c x 32mm; 28mm with fenders

Frame measurements (mm)	46cm	49cm	52cm	55cm	58cm	61cm
A. BB Drop	58	58	58	58	58	58
B. Chainstay Length	396	396	396	396	396	396
C. Fork Length - Axle to Crown	375	375	375	375	375	375
D. Fork Offset	32	32	32	32	32	32
E. Head Tube Angle (deg)	73	73.5	74	74.5	74.5	75
F. Headtube Length	95	110	130	150	175	200
G. Reach	382	393	398	408	421	434
H. Seat Tube Angle (deg)	75	75	74.5	74.5	74.5	74.5
I. Seat Tube Length - Center to Top	460	490	520	550	580	610
J. Stack	509	525	546	567	591	616
K. Standover	743	767	793	819	846	874
L. Top Tube Length (Effective)	520	535	550	565	585	605
M. Wheelbase	945	957	963	974	994	1009

* All dimensions are preliminary and subject to change
