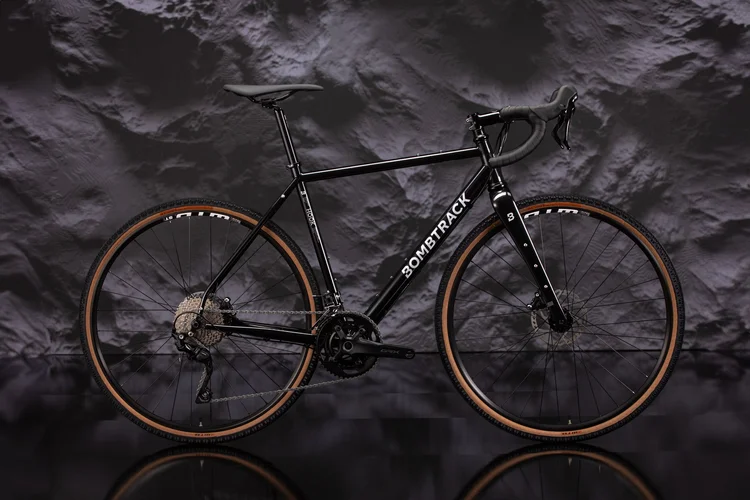

"The Hook might have been designed as a gravel racer, but that doesn’t stop it also being a perfect tourer, commuter, or even summer-season cross bike."

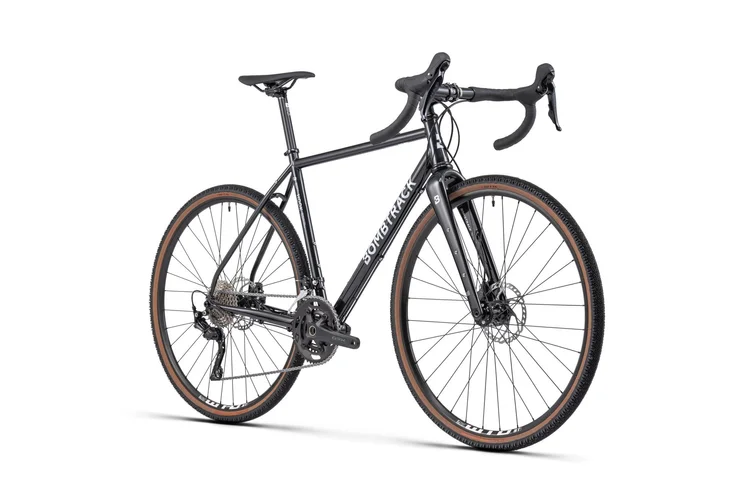

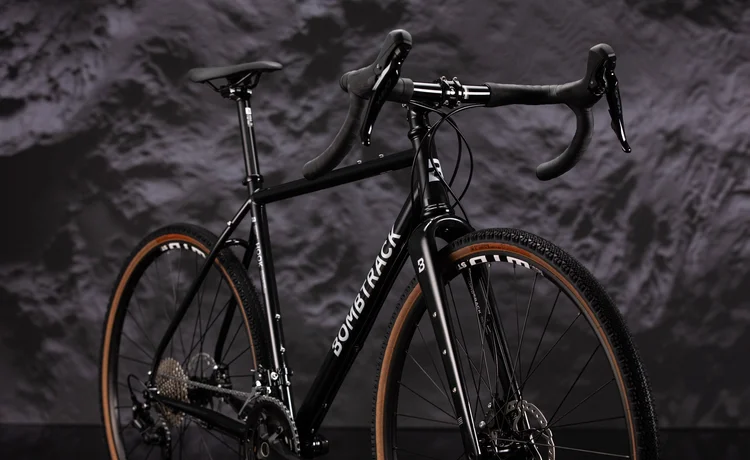

Naturally, Hook is something special, being built from double-butted Columbus Cromor tubing, with a tapered headtube and a T47 bottom bracket. The Small size feature 650B wheels, M - XL have 700C options and both run WTB tubeless rims and tires on sealed hubs. A Shimano GRX groupset with a subcompact 46 / 30T crankset, combined with an 11 - 36T cassette helps to keep you spinning up and over the hills, and GRX 400 calipers deliver powerful braking on the descents. The frameset is bedecked with mounts for every scenario, including a top tube bag, triple cage mounts and bottle mount options, as well as internal dynamo routing on the full carbon fork.

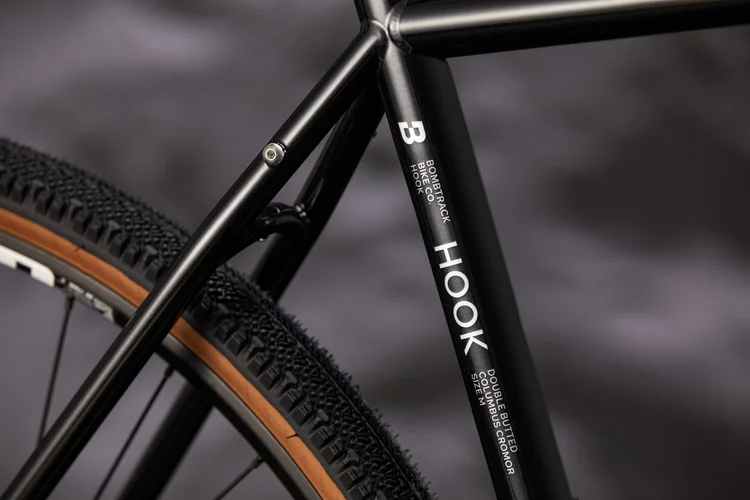

| Frame | Columbus Cromor double butted, TA dropout, rack / fender mounts, 86.5 mm T47 BB shell |

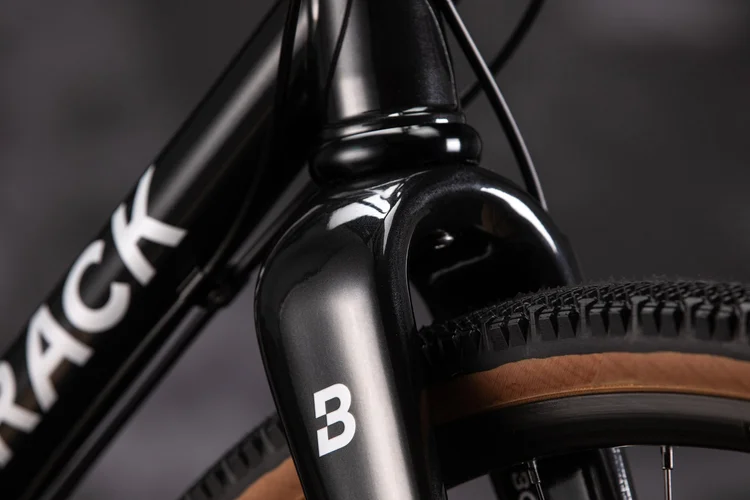

| Fork | Full carbon, TA, 1.1/2'' - 1.1/8'', triple cage mounts (can double as fender mounts),internal hub dynamo cable routing |

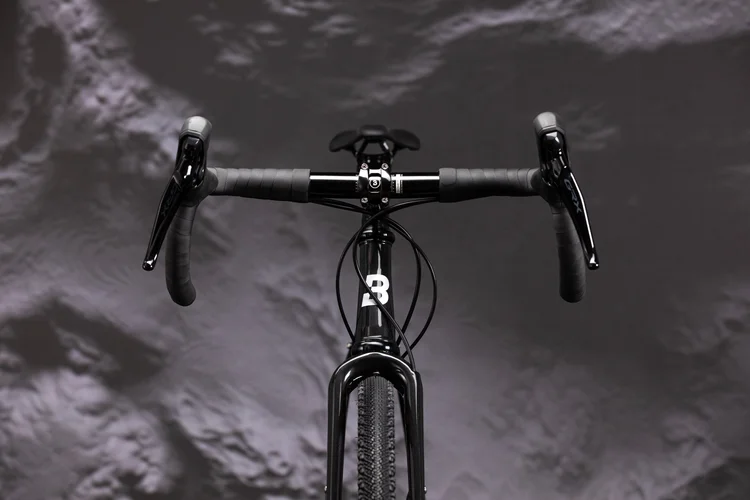

| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | Bombtrack Escape bar tape |
| Stem | Bombtrack Roam forged aluminium stem, -7° |
| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |
| Levers | Shimano GRX ST-RX400 STI Hydraulic |
| Shifter | Shimano GRX ST-RX400 STI 2 x 10 |
| Brakes | Shimano GRX BR-RX400 hydraulic disc brakes |
| Rotor | Shimano SM-RT66 160 mm rotors |
| Crankset | Shimano GRX FC-RX600-10, 24 mm spindle |
| BB | Bombtrack T47 internal sealed BB for 24 mm spindle |
| Pedals | - |
| Chain | KMC X10 EPT Anti Rust chain, 1/2'' x 11/128'', XS - S 112L, M - XL 114L |
| Chainring | Shimano GRX, 46 T / 30 T |
| Cassette | Shimano CS-HG50 10-speed, 11 - 36 T |
| Front derailleur | Shimano GRX FD-RX400-F |

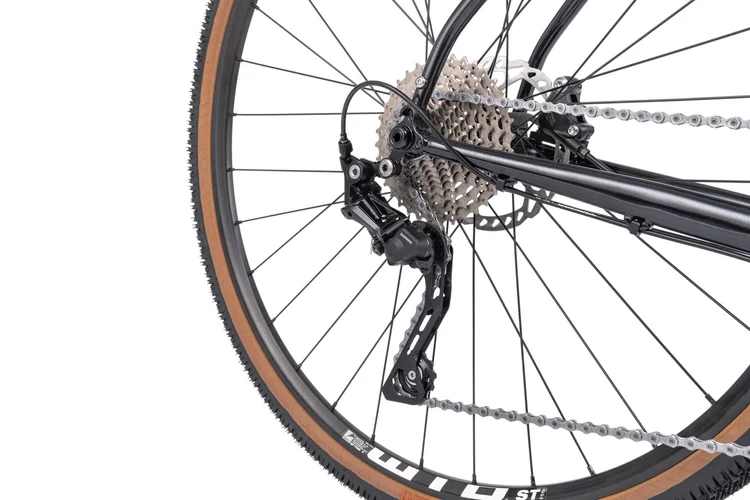

| Rear derailleur | Shimano GRX RD-RX400, clutch |

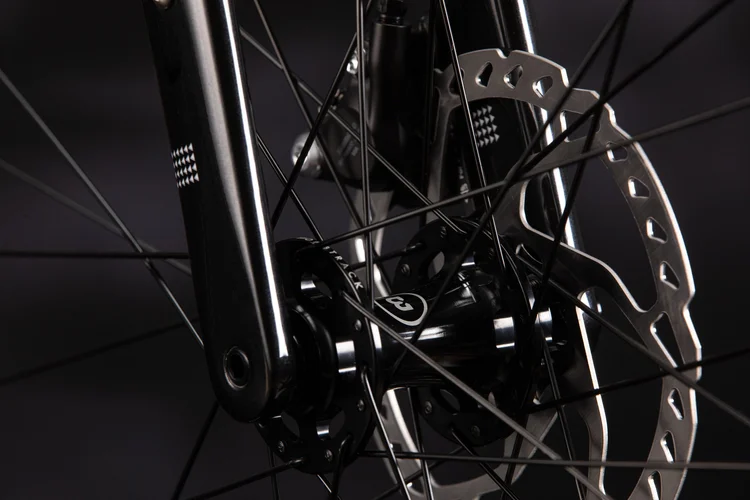

| Front hub | Bombtrack Tau sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Tau sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Saddle | Seido Comp saddle |
| Seat post | Bombtrack Beech 27.2 mm x 415 mm size XL; 315 mm size XS - L |

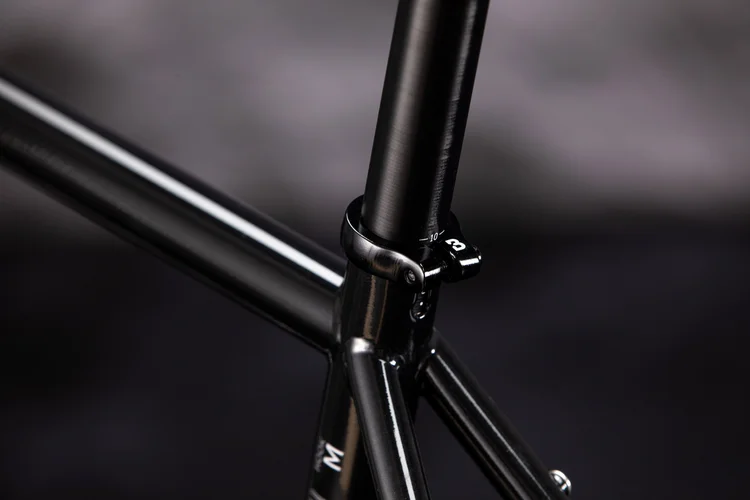

| Seat clamp | Bombtrack Origin 29.8 mm |
| Tires | S WTB Resolute 650B x 42C / M - XL WTB Venture 700C x 40C, tubeless ready |
| Bike Size | S | M | L | XL |
| Wheel size | 650B | 700C | 700C | 700C |
| Seat Tube Length | 490 | 525 | 545 | 565 |
| Horizontal TT length | 523 | 541 | 563 | 580 |
| Seat Angle | 73.6° | 73.6° | 73.1° | 73.1° |
| Head Angle | 71.1° | 71.6° | 71.6° | 71.6° |
| Headtube Length | 110 | 130 | 150 | 170 |
| BB Drop | 54 | 64 | 64 | 64 |
| Chainstay Length | 410 | 425 | 425 | 425 |
| Fork Offset | 50 | 50 | 50 | 50 |
| Trail | 62 | 65 | 65 | 65 |
| Wheelbase Length | 989 | 1014 | 1031 | 1049 |
| Standover | 752 | 803 | 821 | 841 |
| Reach | 366 | 375 | 386 | 397 |
| Stack | 534 | 565 | 584 | 603 |
| Front Center | 586 | 597 | 615 | 632 |
| Axle to Crown | 400 | 400 | 400 | 400 |
