KONA

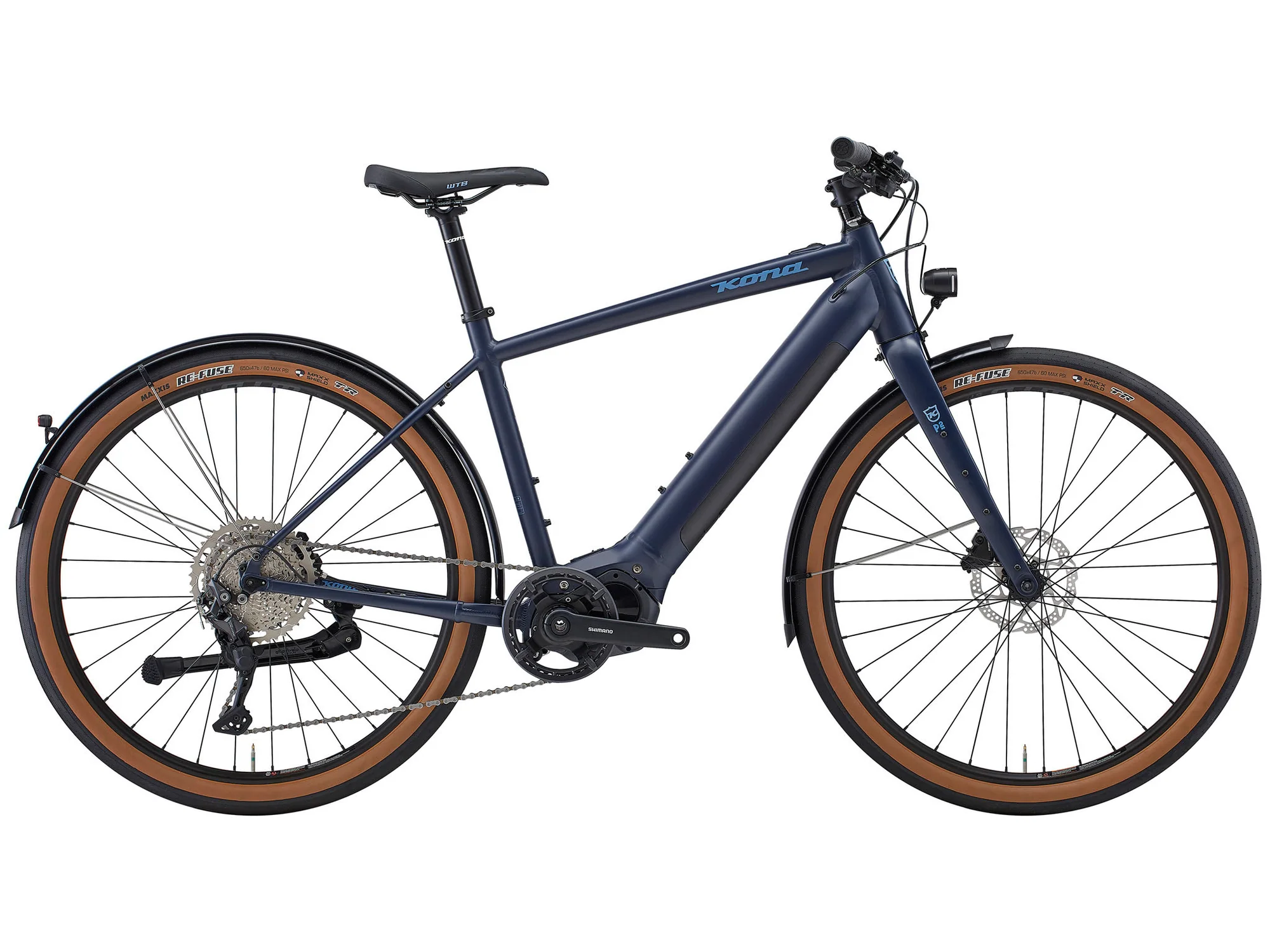

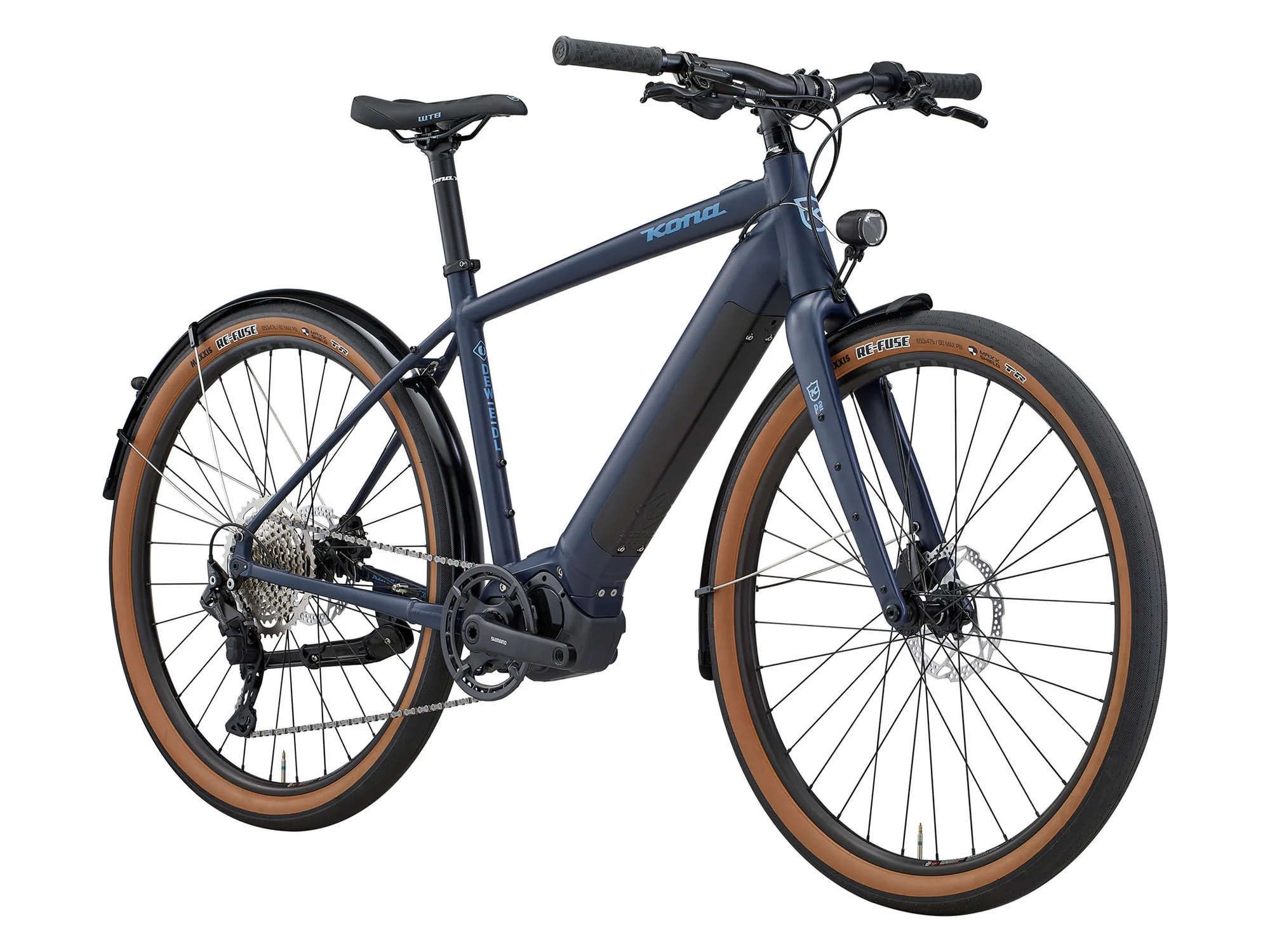

Dew-E DL

$3,299.00
In stock online (1)
In store: Check availability

Available in store

Commuters have been flocking to the Kona Dew-E DL for its stylish design and because it’s a blast to ride.

Delivery time: In store pick up
  • Commuters have been flocking to the Dew-E DL for its stylish design and because it’s a blast to ride. An aluminum frame features a Kona Rove Verso Full Carbon Flat Mount Disc fork. A 10-speed drivetrain works in perfect harmony with the low-profile Shimano motor and integrated battery. Sturdy aluminum fenders and lights keep you dry and visible throughout your ride. Powerful hydraulic disc brakes and 160mm rotors stop on a dime, even in wet conditions and puncture-resistant 650x47c tires keep the road rolling by smoothly whether you’re cruising on pavement, or a dirt path. This is the electric commuter you’ve been searching for!

    SPECIFICATIONS

    Frame Material Kona 6061 Aluminum Butted
    Sizes S, M, L, XL
    Rear Shock n/a
    Fork Kona Rove Verso Full Carbon Flat Mount Disc
    Crankarms Shimano E6100
    Chainrings 38t
    B/B n/a
    Pedals n/a
    Chain Shimano HG54
    Cassette Shimano Deore 11-46t 10spd
    Chainguide n/a
    F/D n/a
    R/D Shimano Deore
    Shifters Shimano Deore
    Brake Calipers Shimano Hydraulic
    Front Brake Rotor Shimano RT54 160mm (centerlock)
    Rear Brake Rotor Shimano RT54 160mm (centerlock)
    Brake Levers Shimano MT201 Hydraulic
    Headset FSA No.57BP
    Handlebar Kona Aluminum Riser
    Stem Kona Control
    Seatpost Kona Commuter 31.6mm
    Seat Clamp Kona Clamp
    Grips Kona Key Grip
    Saddle WTB Volt
    Front Hub Shimano Tiagra 100x12mm
    Rear Hub Shimano Tiagra 142x12mm
    Spokes Stainless 14g
    Rims WTB ST i23 TCS 2.0
    Front Tire WTB Horizon TCS w/ Puncture Protection 650x47c
    Rear Tire WTB Horizon TCS w/ Puncture Protection 650x47c
    DriveUnit Shimano E6100 20MPH
    Battery Shimano 504Wh
    Display Shimano SC-E7000 Display
    Charger Shimano STEPS 2A
    BatteryLock n/a
    Paint Color Matte Midnight w/ Blue-Grey Decals
    Extras Fenders, Busch & Müller Front & Rear Light, Kickstand

    * All specifications are subject to change without notice

    Geometry

    Size S

    Size M

    Size L

    Size XL

    ST Length

    420 mm

    470 mm

    520 mm

    580 mm

    TT Length

    551 mm

    596 mm

    635 mm

    678 mm

    Reach

    404 mm

    430 mm

    446 mm

    471 mm

    Stack

    548 mm

    579 mm

    617 mm

    636 mm

    Standover

    700 mm

    741 mm

    786 mm

    830 mm

    HT Angle

    70.0°

    70.0°

    70.0°

    70.0°

    HT Length

    135 mm

    168 mm

    208 mm

    228 mm

    ST Angle

    75.0°

    74.0°

    73.0°

    72.0°

    CS Length

    450 mm

    450 mm

    450 mm

    450 mm

    BB Drop

    60 mm

    60 mm

    60 mm

    60 mm

    BB Height

    282 mm

    282 mm

    282 mm

    282 mm

    Wheelbase

    1081 mm

    1118 mm

    1148 mm

    1180 mm

    Front Center

    638 mm

    675 mm

    705 mm

    736 mm

    Fork Length

    400 mm

    400 mm

    400 mm

    400 mm

    Fork Offset

    50 mm

    50 mm

    50 mm

    50 mm
