Kona Dew-E

$2,999.00

In stock (1)

The Kona Dew-E has redefined what commuting means to riders all over the world.

Description

The Dew-E has redefined what commuting means to riders all over the world.

In fact, we’ve heard it’s the best part of going to work for some people. We love the ride quality of the Dew-E and the fact that it’s helping cut down on the number of cars on the road. The semi-integrated battery keeps the lines of the bike nice and clean, while the Shimano pedal-assist motor keeps every rider smiling no matter how far or how steep their ride. Complete with front and rear fenders and lights, the Dew-E is ready to rise and shine for the daily grind!

SPECIFICATIONS

Frame Material		Kona 6061 Aluminum Butted
Sizes		S, M, L, XL
Rear Shock		n/a
Fork		Kona Project Two Aluminum Disc
Crankarms		Shimano E6100
Chainrings		38t
B/B		n/a
Pedals		Kona JS2
Chain		KMC Eglide
Cassette		Shimano Cues 11-36t 9spd
Chainguide		Shimano E-Bike Chain Guard
F/D		n/a
R/D		Shimano Cues
Shifters		Shimano Cues
Brake Calipers		Shimano MT410
Front Brake Rotor		Shimano RT10 160mm (centerlock)
Rear Brake Rotor		Shimano RT10 160mm (centerlock)
Brake Levers		Shimano MT401
Headset		Feimin H863
Handlebar		Kona Aluminum Riser
Stem		Kona Control
Seatpost		Kona Commuter 31.6mm
Seat Clamp		Kona Clamp
Grips		Kona Key Grip Slip on
Saddle		Kona Comfort
Front Hub		Shimano 100x9mm
Rear Hub		Shimano 135x10mm
Spokes		Stainless 14g
Rims		WTB SX19
Front Tire		WTB Horizon Comp Puncture Protect 650x47c
Rear Tire		WTB Horizon Comp Puncture Protect 650x47c

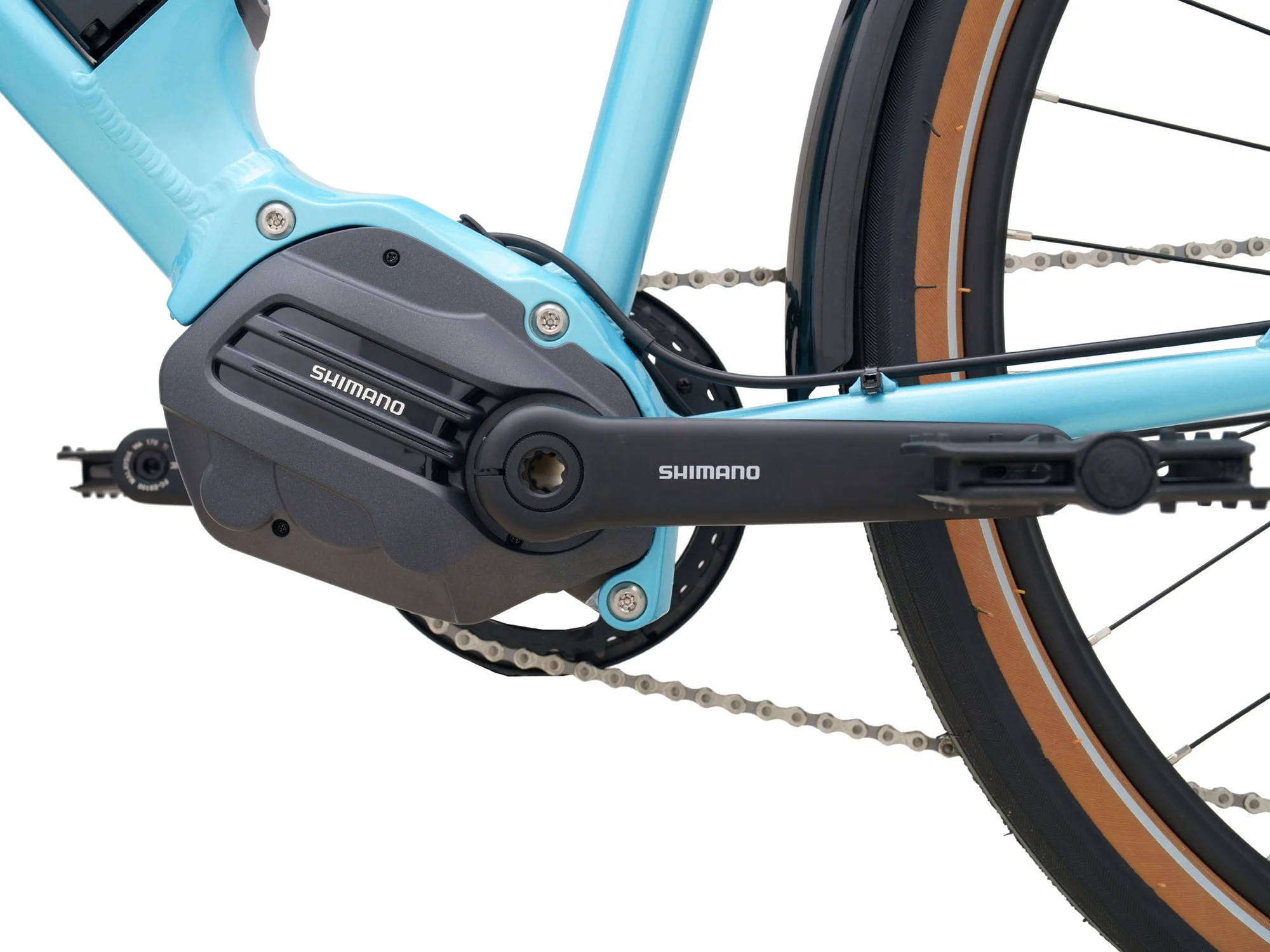

DriveUnit		Shimano E6100 20MPH
Battery		Shimano 504Wh
Display		Shimano SC-E7000 Display
Charger		Shimano STEPS 2A
BatteryLock		Abus
Paint Color		Gloss Metallic Blue w/ Satin Lead Reflective Decals
Extras		Fenders, Front & Rear Light, Kickstand

All specifications are subject to change without notice.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	420	470	520	580
2	TT Length	548	594	633	683
3	Reach	398	423	439	465
4	Stack	558	596	634	671
5	Standover	692	736	782	832
6	HT Angle	70.0	70.0	70.0	70.0
7	HT Length	135	175	215	255
8	ST Angle	75.0	74.0	73.0	72.0
9	CS Length	460	460	460	460
10	BB Drop	60	60	60	60
11	BB Height	282	282	282	282
12	Wheelbase	1089	1127	1157	1197
13	Front Center	635	674	704	743
14	Fork Length	410	410	410	410
15	Fork Offset	50	50	50	50
