The El Kahuna is a bike built with multipurpose at heart—capable of riding the local single-track for hours on end, and still have enough battery to get the groceries on the way home.
The Kahuna is one of our best-selling hardtails. People love its simplicity and practicality. We brought that ethos to the El Kahuna and built a bike that was multipurpose—capable of riding the local singletrack for hours on end, and still have enough battery to go get the groceries on the way home. Its Shimano pedal-assist motor is powered by a semi-integrated battery and its 100mm fork provides just the right amount of suspension to absorb smaller hits on the trail. 29” wheels with 2.25” tires make this bike comfortable across all kinds of terrain. The El Kahuna the perfect all-rounder.
| Frame Material | Kona 6061 Aluminum Butted | |
| Sizes | S, M, L, XL | |
| Rear Shock | n/a | |
| Fork | RockShox 35 R Coil or Suntour XCR34 Air 100mm Tapered 110 Spacing | |
| Crankarms | FSA E-Bike | |
| Chainrings | 36t | |
| B/B | n/a | |
| Pedals | Kona JS2 | |
| Chain | Shimano HG54 | |
| Cassette | Shimano Deore 11-46t 10spd | |
| Chainguide | n/a | |
| F/D | n/a | |
| R/D | Shimano Deore | |
| Shifters | Shimano Deore | |
| Brake Calipers | Shimano MT410 | |
| Front Brake Rotor | Shimano RT10 180mm (centerlock) | |
| Rear Brake Rotor | Shimano RT10 160mm (centerlock) | |
| Brake Levers | Shimano MT401 | |
| Headset | FSA No.57BP | |
| Handlebar | Kona XC/BC Riser | |
| Stem | Kona XC | |
| Seatpost | Kona Thumb w/Offset 31.6mm | |
| Seat Clamp | Kona Clamp | |
| Grips | Kona Key Grip | |
| Saddle | WTB Volt | |
| Front Hub | Shimano 110x15mm | |
| Rear Hub | Shimano 135x10mm | |
| Spokes | Stainless 14g | |
| Rims | WTB ST i27 TCS 2.0 | |
| Front Tire | WTB Trail Boss 29x2.25" | |
| Rear Tire | WTB Trail Boss 29x2.25" | |

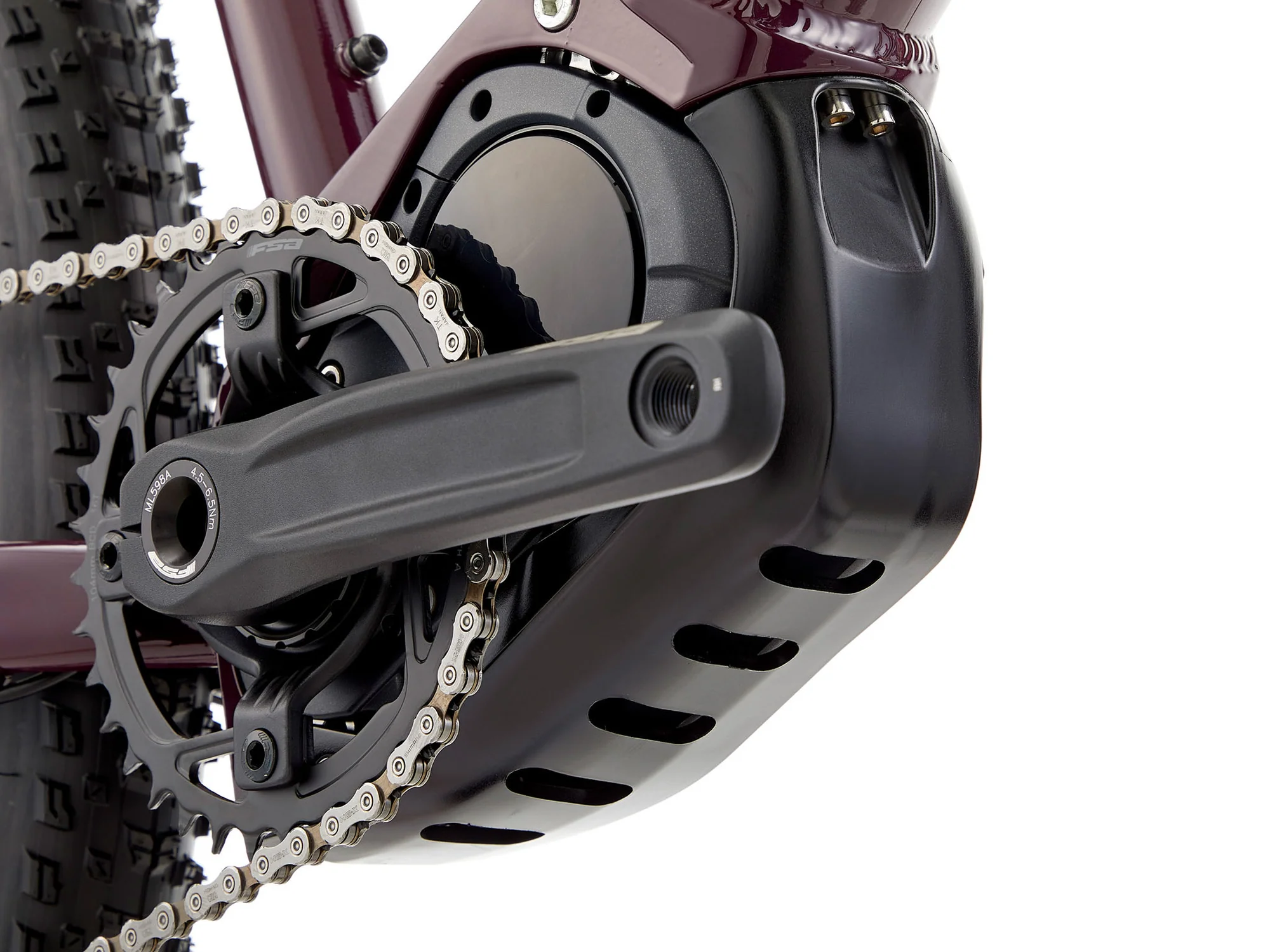

| driveunit | Shimano E6100 20MPH | |
| Battery | Shimano 504Wh | |
| Display | Shimano SC-E7000 Display | |
| Charger | Shimano STEPS 2A | |
| batterylock | Abus | |
| Paint Color | Gloss Metallic Indigo w/ Metallic Brass & Matte Ink Decals |
* All specifications are subject to change without notice
|
Geometry |
|
Size S |
|
Size M |
|
Size L |
|
Size XL |
|
ST Length |
|
370 mm |
|
420 mm |
|
470 mm |
|
530 mm |
|
TT Length |
|
581 mm |
|
607 mm |
|
633 mm |
|
665 mm |
|
Reach |
|
404 mm |
|
428 mm |
|
453 mm |
|
484 mm |
|
Stack |
|
619 mm |
|
623 mm |
|
628 mm |
|
633 mm |
|
Standover |
|
738 mm |
|
742 mm |
|
747 mm |
|
766 mm |
|
HT Angle |
|
69.0° |
|
69.0° |
|
69.0° |
|
69.0° |
|
HT Length |
|
110 mm |
|
115 mm |
|
120 mm |
|
125 mm |
|
ST Angle |
|
74.0° |
|
74.0° |
|
74.0° |
|
74.0° |
|
CS Length |
|
465 mm |
|
465 mm |
|
465 mm |
|
465 mm |
|
BB Drop |
|
60 mm |
|
60 mm |
|
60 mm |
|
60 mm |
|
BB Height |
|
315 mm |
|
315 mm |
|
315 mm |
|
315 mm |
|
Wheelbase |
|
1134 mm |
|
1160 mm |
|
1187 mm |
|
1220 mm |
|
Front Center |
|
676 mm |
|
701 mm |
|
728 mm |
|
761 mm |
|
Fork Length |
|
506 mm |
|
506 mm |
|
506 mm |
|
506 mm |
|
Fork Offset |
|
51 mm |
|
51 mm |
|
51 mm |
|
51 mm |
