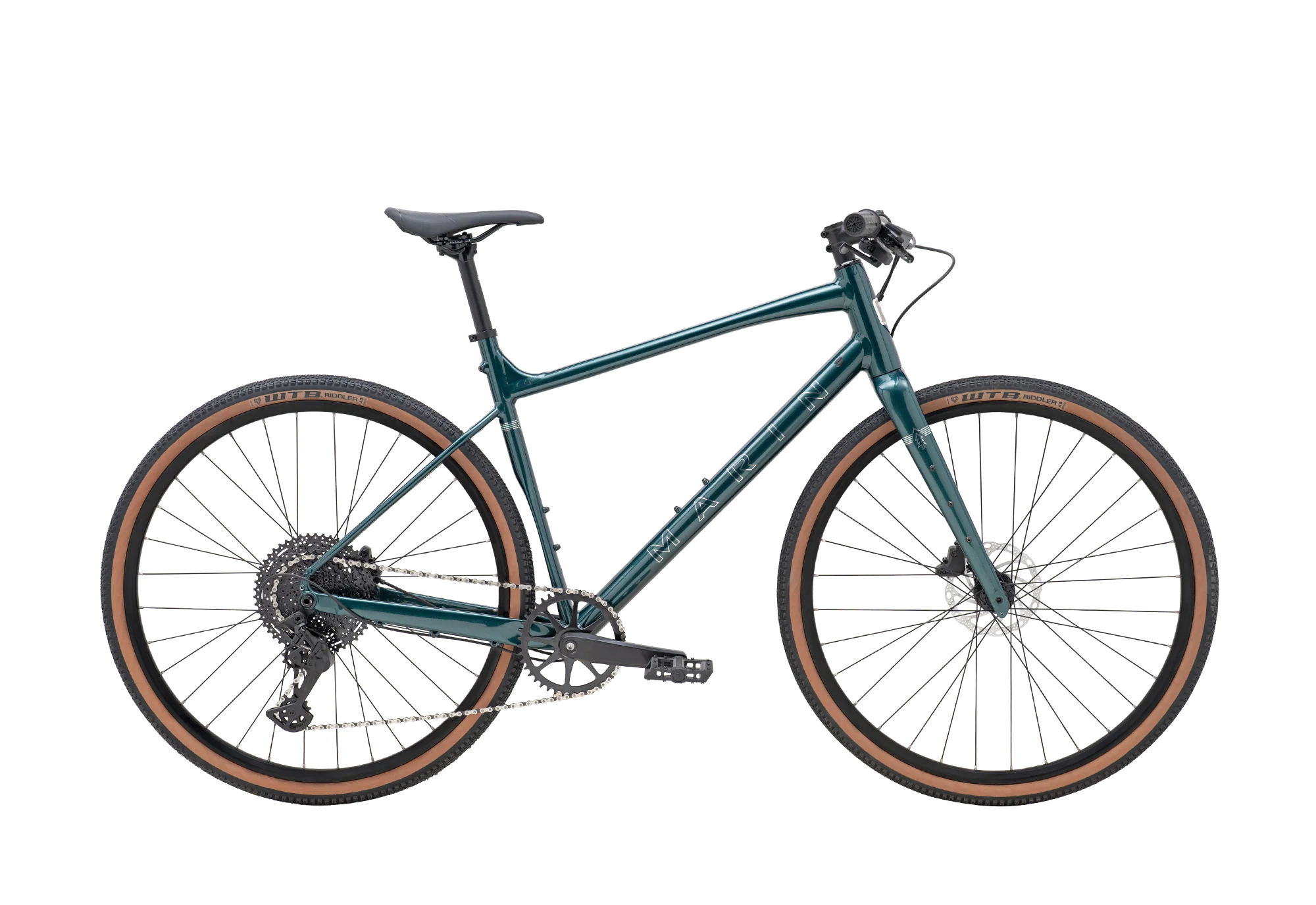

MARIN

DSX 1

$1,399.00

In stock online (1)

In store: Check availability

SKU: 740692001

The mountain bikers gravel bike, The DSX 1 is fast and capable. Venture from Calgary paths to the gravel with ease.

Color:

Size:

Add to compare Add to wishlist

The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.

Frame	Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork	Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Headset	FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Stem	Marin 3D Forged Alloy
Handlebar	Marin MiniRiser
Saddle	Marin DSX
Seatpost	Marin Alloy
Grips	Marin MTB

Rear Derailleur	Tektro Gemini, SL-M5100, 11-speed
Crank	Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 42T Chainring
Bottom Bracket	Sealed Outboard Bearing
Shifters	Tektro Gemini, SL-M5100, 11-speed
Cassette	Tektro Gemini,, CS-M5100, 11-Speed, 11-50T
Chain	KMC X11
Brakes	Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor

Rims	Marin Aluminum Double Wall, 21mm Inner, Disc Specific
Front Hub	Forged Aluminum, 100x12mm, Disc, 32H
Rear Hub	Forged Aluminum Alloy, 142x12mm, Disc, 32H
Tires	WTB Riddler, 700Cx45mm

**All specifications and pricing are subject to change without notice

GEOMETRY

	S	M	L	XL
STACK	544.4	572.5	600.6	628.7
REACH	380	405	420	435
HEAD TUBE ANGLE	69.5°	69.5°	69.5°	69.5°
HEAD TUBE LENGTH	120	150	180	210
SEAT TUBE ANGLE	74°	74°	74°	74°
SEAT TUBE LENGTH	430	480	520	558
TOP TUBE EFFECTIVE	536.1	569.2	592.2	615.3
BB HEIGHT	279.5	279.5	279.5	279.5
BB DROP	80	80	80	80
CHAIN STAY	425	425	425	425
WHEEL BASE	1024.42	1060	1085.4	1110.9
STAND OVER HEIGHT	658.76	700.51	730.39	758.5
FORK OFFSET	50	50	50	50
SEATPOST DIAMETER	27.2	27.2	27.2	27.2
HANDLEBAR WIDTH	640	680	680	680
STEM LENGTH	70	70	70	70
CRANK LENGTH	170	175	175	175
