Ride smoother and faster on rough roads, gravel and dirt
22mm wide UST rims integrated for a smooth ride with a wide range of tubeless tires from 28mm-64mm
UST Road Tubeless lets you run lower tire pressure for comfort and control on rough roads
No tubes means less friction, better efficiency and grip, and pinch-flat protection
Lightweight and durable
Lightweight, flat spokes and ID360 freewheel technology for reliable lightweight performance
Automatic bearing preload (QRM Auto) requires no adjustment and guarantees long-term durability
Fore drilling doesn't require the use of rim tape - 30g saved per wheel
Laterally stiff and vertically compliant for a dynamic ride quality
Fore technology keeps the rim upper bridge solid to make the rim stiffer
17mm axle and new hub design
ID360 freewheel technology is 12mm compatible, convertible to quick release (15mm axle option through axle replacement)
Rims
- Material: Maxtal
- Height: 22 mm
- Disc brake specific profile
- Tire: UST Tubeless and tubetype
- Internal width: 22 mm
- ETRTO size: 622x22TSS
- Hookless profile
- Fore tapeless tubeless technology
- UST tubeless technology
- SUP welding technology
Spokes
- Material: steel
- Shape: straight pull, flat, double butted
- Nipples: Fore integrated aluminum
- Count: 24 front and rear
- Lacing: front and rear crossed 2, contactless

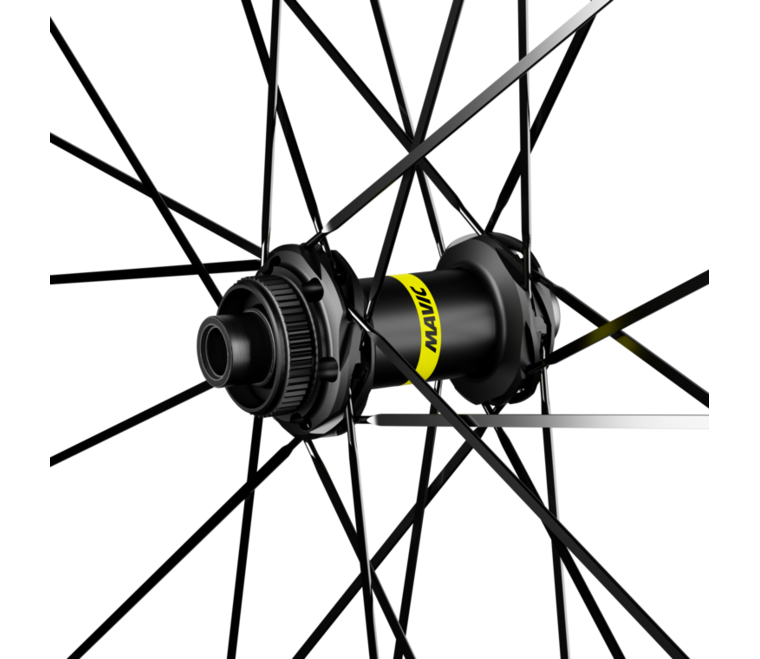

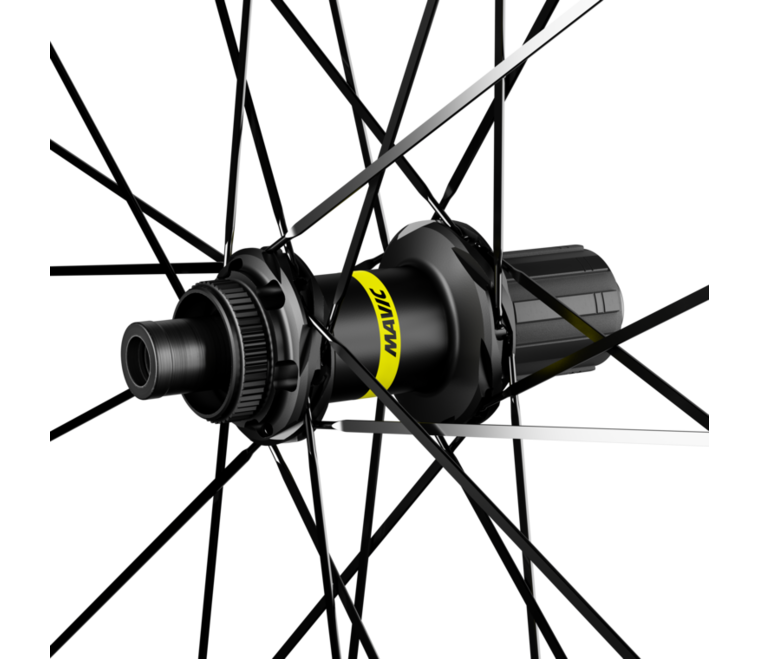

Hubs
- Front and rear bodies: aluminum
- Axle material: aluminum
- Infinity hubs
- Front: Quick release, 12x100 and 15x100 through axle compatible
- Rear: Quick Release, 12x142 and 12x135 compatible
- Instant Drive 360 freewheel technology
- QRM Auto bearing preload technology
Versions
- Disc standard: Center Lock only
- Freewheel: Shimano/Sram or XD-Road
Compatibility
- Freewheel: Shimano/Sram, convertible to Campagnolo ED11, N3W and XD-R with optional driver bodies
- Front axle: 12mm thru axle, easily convertible to quick release with optional adapters. Convertible to 15mm with complete axle replacement
- Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters and axle replacement
Compatible Adapters and freewheel bodies
- 12 to 9mm front adapter for quick release (V2680301)
- 15mm axle (V2373501)
- 15mm axle (LVXXXXXX)
- 12 to 9mm rear adapter for quick release (V2510801] (with axle [V2373401)
- ID360 Shimano / Sram Light freewheel body (V3850101)
- ID360 Campagnolo freewheel body (V3440101)
- ID360 XD-R freewheel body (V2580101)
- ID360 Shimano / Sram freewheel body (V3430101)
- ID360 N3W freewheel body (V4270101)
Delivered with
- UST valve and accessories
- Multifonction adjustment wrench (delivered with rear wheel)
- User guide
Intended use
- ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
- For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
- Minimum and maximum allowed tyre width: see indication on wheel
- Recommended tire sizes: 28 to 64 mm (1.1" to 2.5")
- Max. Pressure: see indication on wheel and tire. If they differ, use the lowest of the 2
- Maximum tyre pressure: 4.6bar/67PSI with a 28mm tyre - 32.7bar/39PSI with a 64mm tyre
