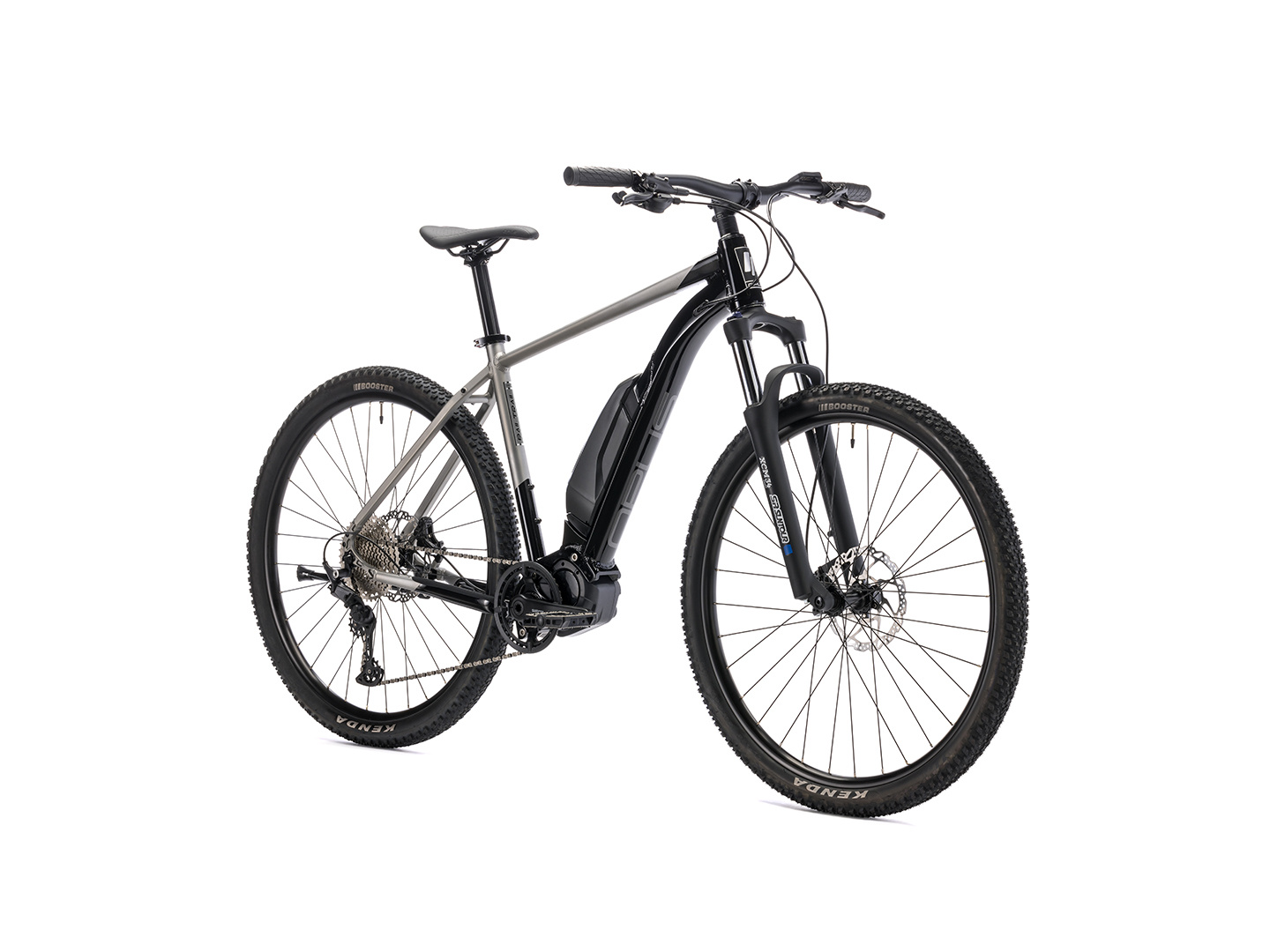

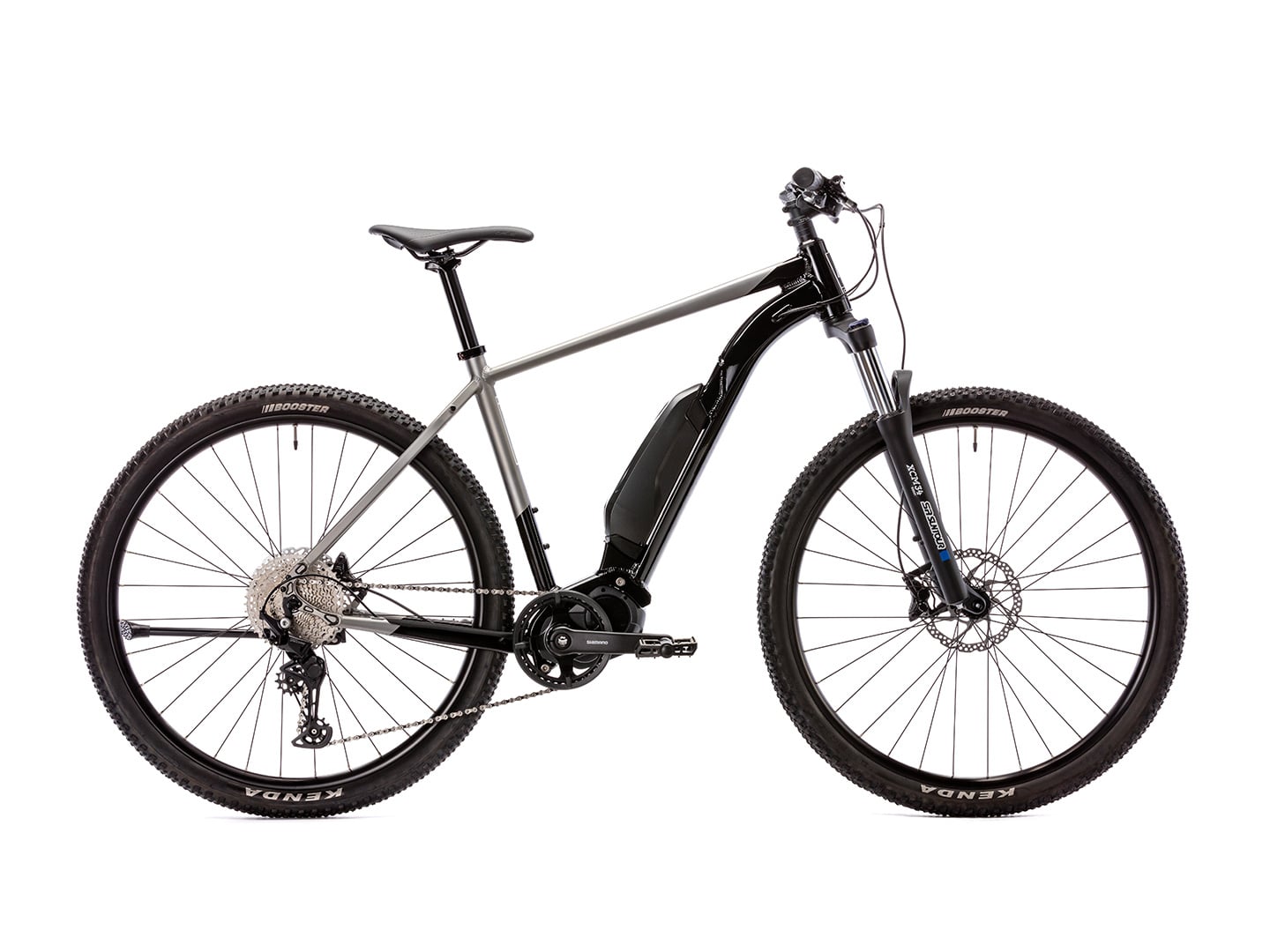

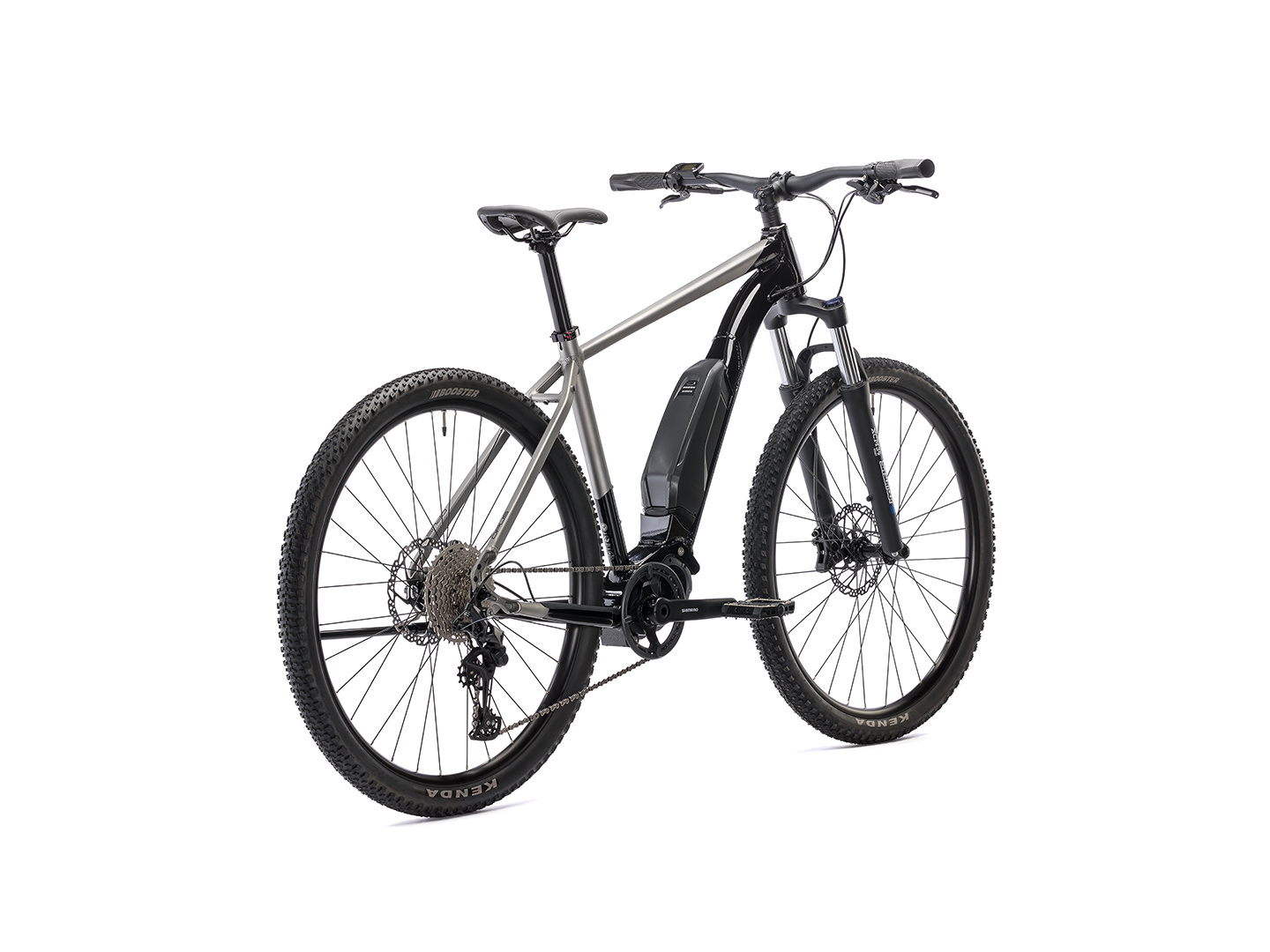

Railtrail E-6100, E-Bike

$3,399.00

In stock online (1)

In store: Check availability

SKU: OP-RT-S

The Railtrail EP600 delivers power and versatility for any route. With a Shimano Steps E-6100 motor, a 418 Wh battery offering up to 125 km of range, a 6‑hour charge time, 32 km/h top speed, and 100 mm suspension, it'll get you there with a smile.

Color:

Size:

Add to compare Add to wishlist

Features

Lightweight trail inspired aluminum frame
Suntour XCM-34 100 mm fork with lockout
Shimano Deore 1x11 drivetrain
Shimano MT420 4-piston hydraulic disc brakes
Shimano E-6100 motor and E-8014 418Wh semi-integrated battery

Specs

Frame: Meta 30 aluminum
Fork: Suntour XCM-34 100mm NLO boost with lockout
Weight: (lb)46.3 lb / 21 kg (with battery)
Sizes: S, M, L
Shifters: Shimano Deore 11
Front Derailleur: N/A
Rear Derailleur: Shimano Deore 5100
Brakes: Shimano BR-MT420 hydraulic disc
Brake Levers: Shimano BL-MT401
Crank: Shimano FC-E6100
Chainring: 38
Bottom bracket: N/A
Cassette: Shimano 11-42
Chain: KMC E11S
Headset: FSA Orbit integrated sealed
Handlebar: Zoom Tequila 780mm 35.0°
Stem: Zoom Tequila 45/55mm
Grips: Velo ERGO dual density
Saddle: Opus Endurance
Seatpost: Promax 31.6 x 350mm
Wheels/Rims: Weinnman U32 TL
Hubs: Shimano
Tires: Kenda Booster 29 x 2.2
Pedals: FPD NW-420
Other: Shimano Motor - E-6100 250W 60Nm
Other: Shimano E-8014 418Wh 36V 11.6Ah battery
Other: SC-E5000 Switch with integrated display

Geometry

Size	S	M	L
Rider’s height (± 5CM)	155	165	178
Rider’s height (± 2″)	5’1″	5’5″	5’10”
S – Seat tube	430	480	510
TT – Top tube	557	585	616
HT – Head tube	100	115	130
HA – Head angle	69	69.5	69.5
SA – Seat angle	74.5	73.5	73.5
CS – Chain stay	445	445	445
D – BB drop	65	65	65
ST – Stack	627	645	657
RE – Reach	383	395	421
SO – Stand over
Handlebar width (mm)	780	780	780
Stem length (mm)	45	45	55
Crank length (mm)	170	170	170
