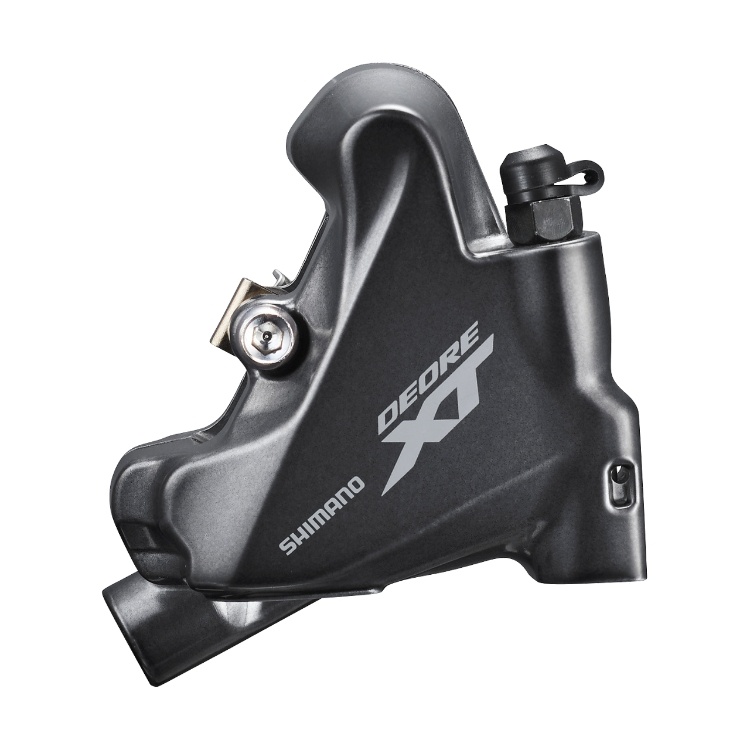

The SHIMANO DEORE XT M8110 flat-mount caliper features lightweight braking performance and reliable stopping power in all conditions.
The 2-piston caliper is compatible with 140/160/180 mm disc brake rotor sizes.
BENEFIT
Clean & compact design
BENEFIT
Same braking power as post-mount 2-piston (BR-M8100)
BENEFIT
Same frame requirement as road flat mount
BENEFIT
Compatible disc brake rotor size: 180/140/160 mm
|
Model No
|
|
BR-M8110
|
|
Series
|
|
DEORE XT
|
|
Brake Type
|
|
Hydraulic disc brake
|
|
Brake Hose (Kit)
|
|
SM-BH90-SS
|
|
Hose Joint
|
|
Straight
|
|
Brake Hose Color (Kit)
|
|
Black
|
|
J-Kit Spec (for OEM)
|
|
✔
|
|
ICE TECHNOLOGIES Pad Compatible
|
|
✔
|
|
Pad - Standard 1
|
|
K05S-RX Resin (w/o fin)
|
|
Pad - Standard 2
|
|
K04S-MX Metal (w/o fin)
|
|
Pad - Option 1
|
|
L05A-RF Resin (w/ fin)
|
|

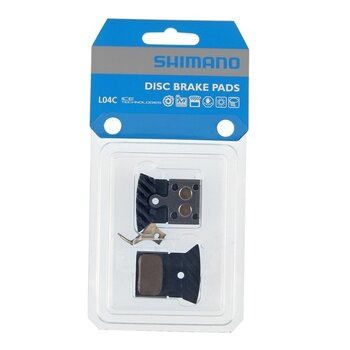

Pad - Option 2
|
|
L04C-MF Metal (w/ fin)
|
|
Fixing Screw Spec for Rear Mount
|
|
20 mm / 25 mm / 30 mm
|
|
Recommended Brake Lever
|
|
BL-M8100
|
|
Recommended Disc Brake Rotor
|
|
RT-MT800
|
|
Compatible Rotor Size
|
|
140 mm (SS), 160 mm (S), 180 mm (M)
|
|
Oil
|
|
SHIMANO Mineral
|
|
ONE WAY BLEEDING
|
|
✔
|
|
Mount Type
|
|
Flat mount
|
|
Piston
|
|
2
|
|
Caliper Fixing Screw Tool Size
|
|
4 mm
|
|
Anti-Loosen Method
|
|
Screw fix pin + Snap ring
|
|
Pad Mount
|
|
Pad axle
|
|
Average Weight
|
|
126 g
|
|
Remarks
|
|
For rear only
|
