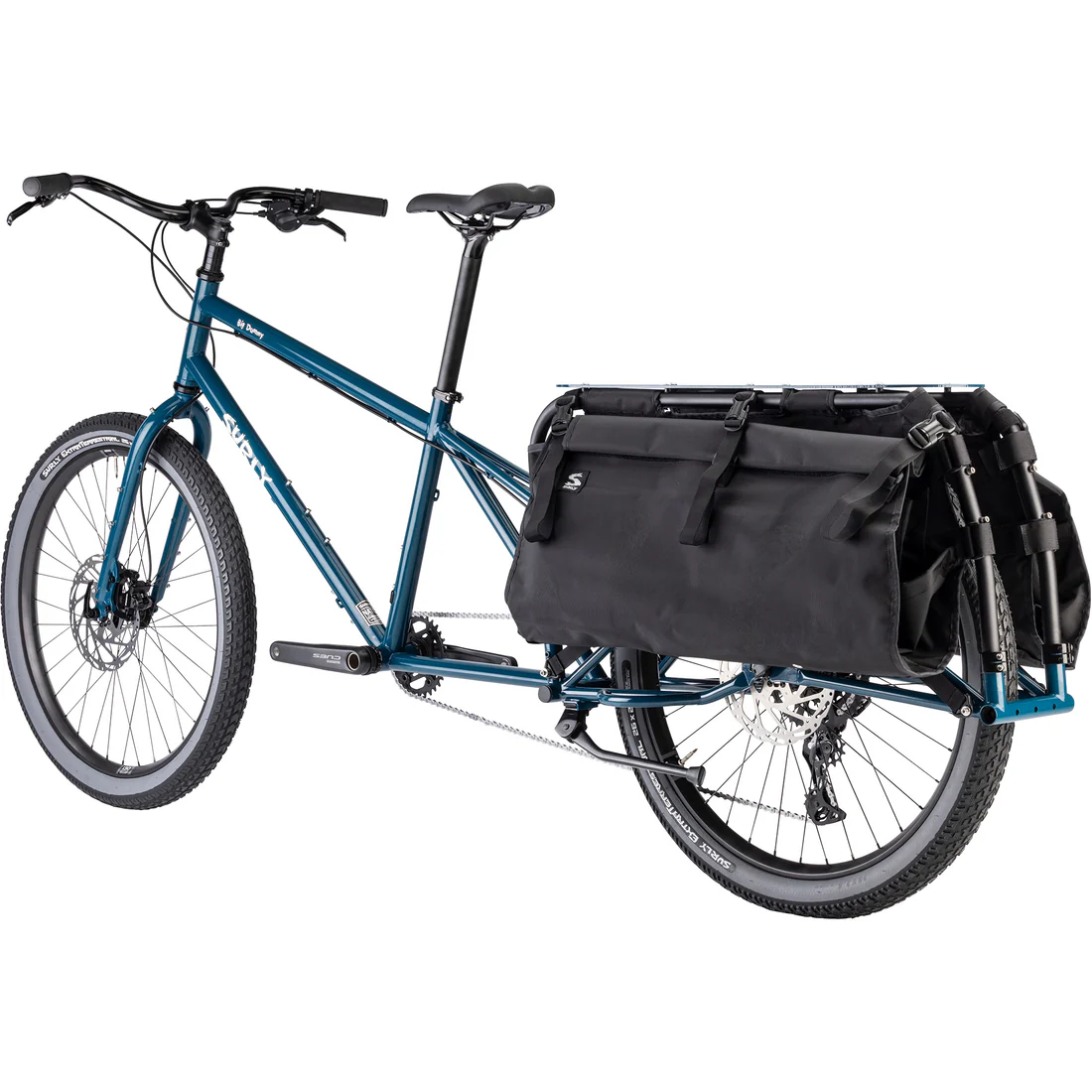

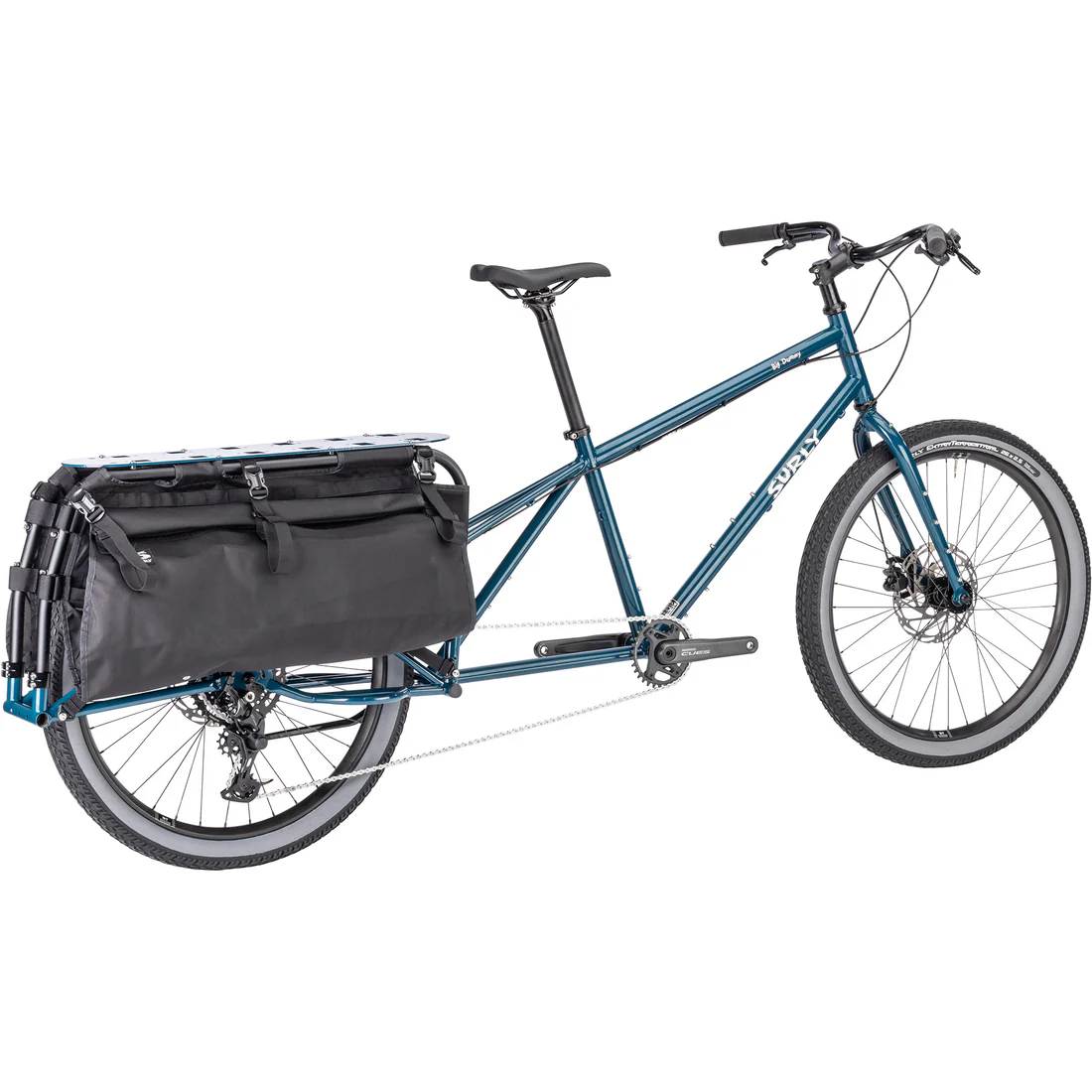

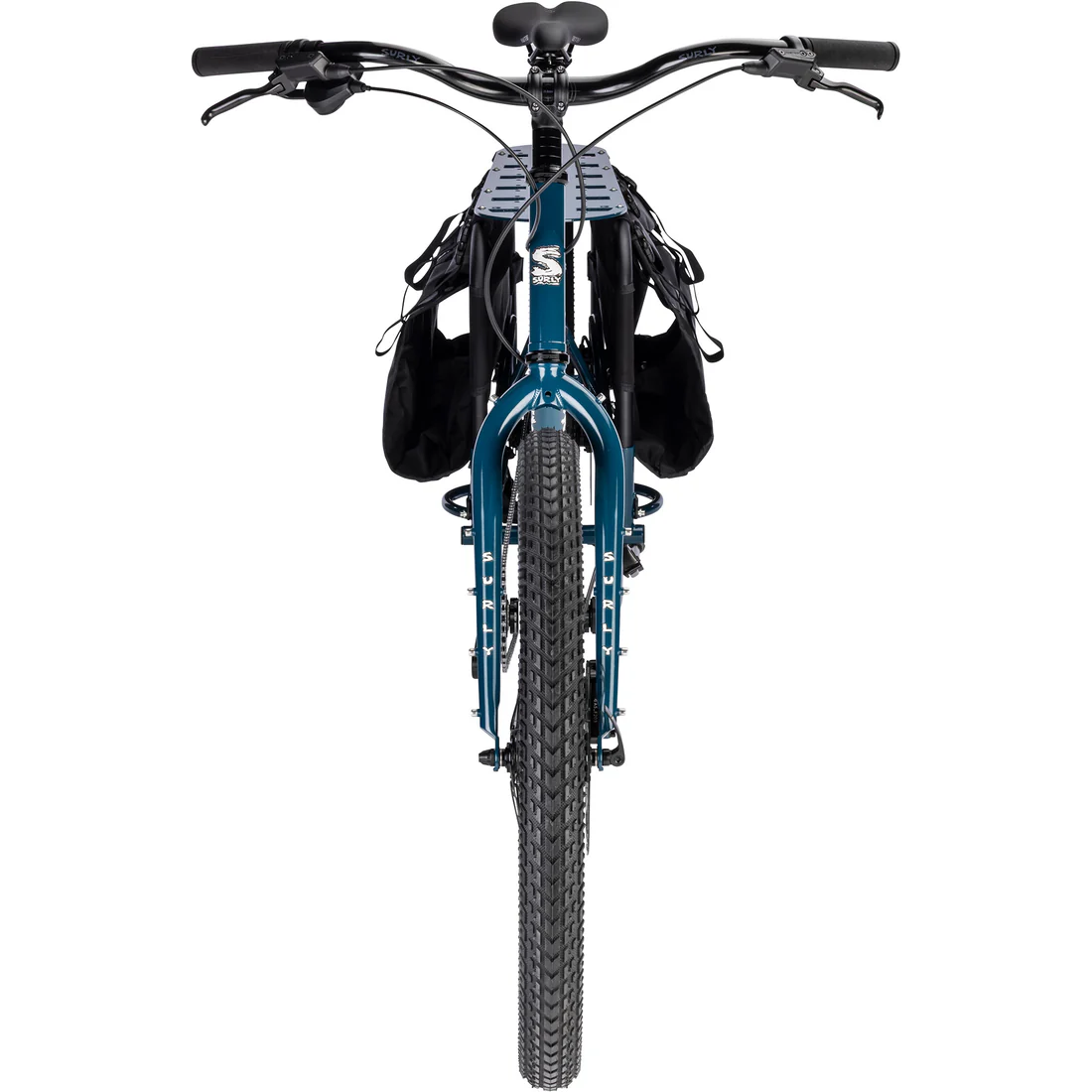

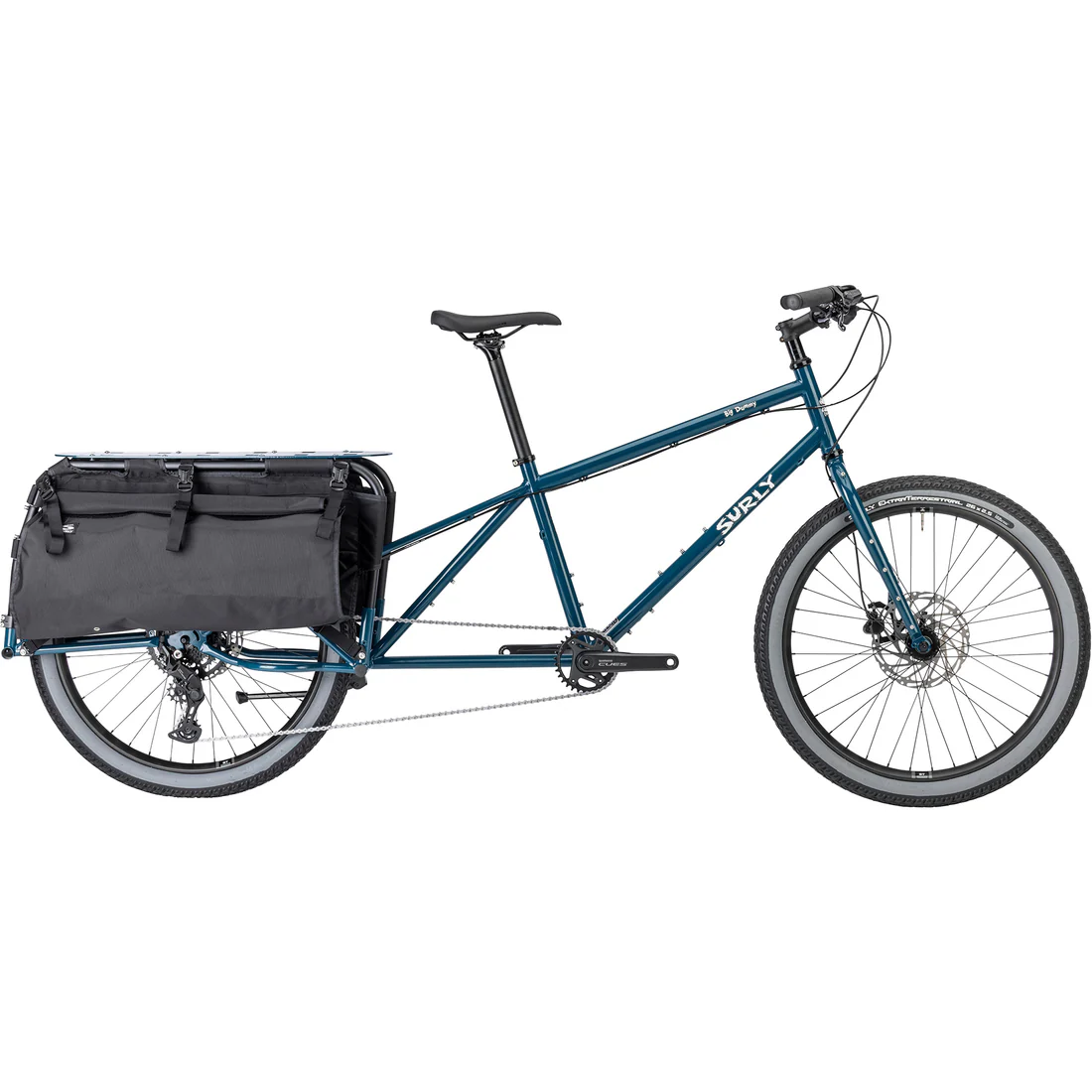

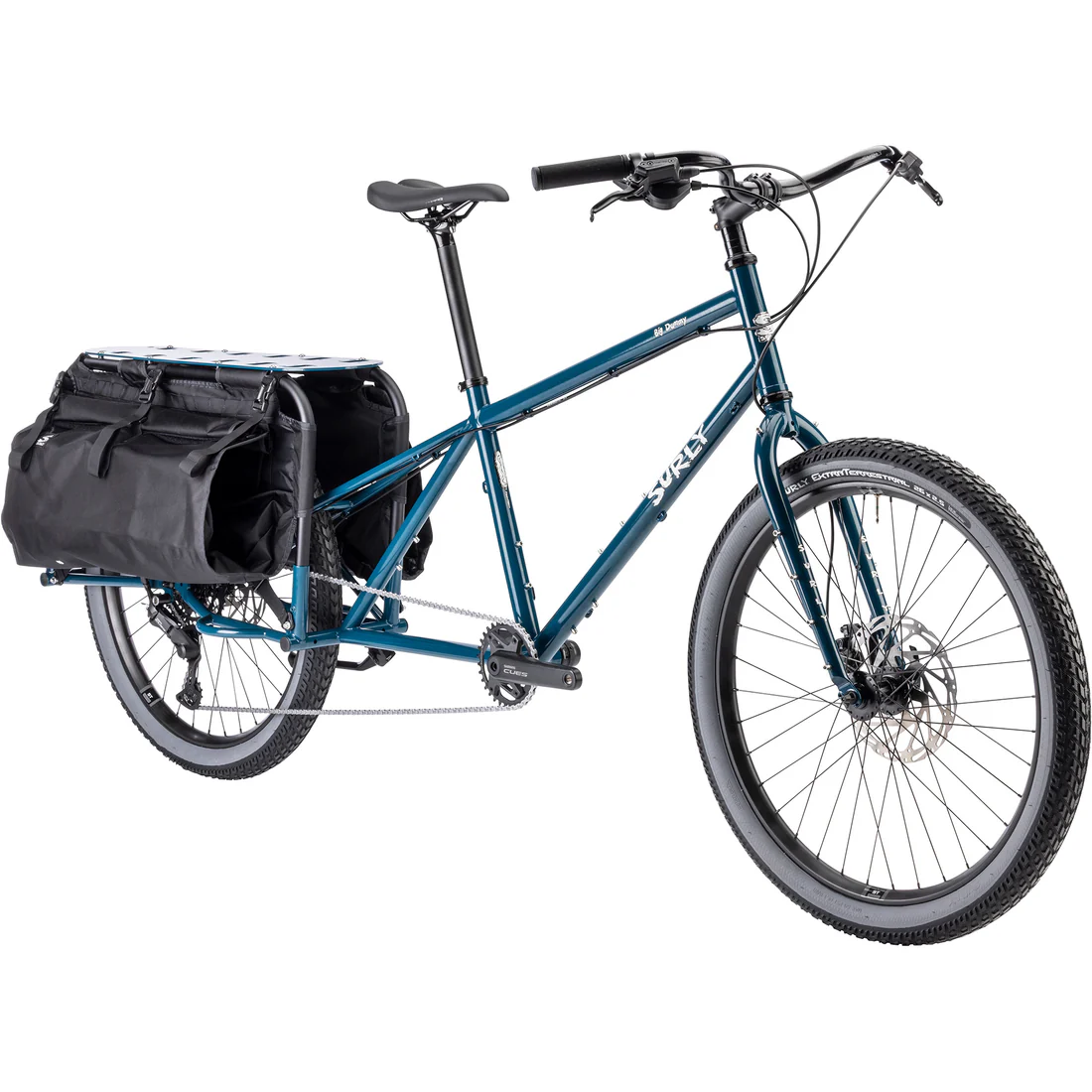

Pizza-powered Longtail Cargo Bike

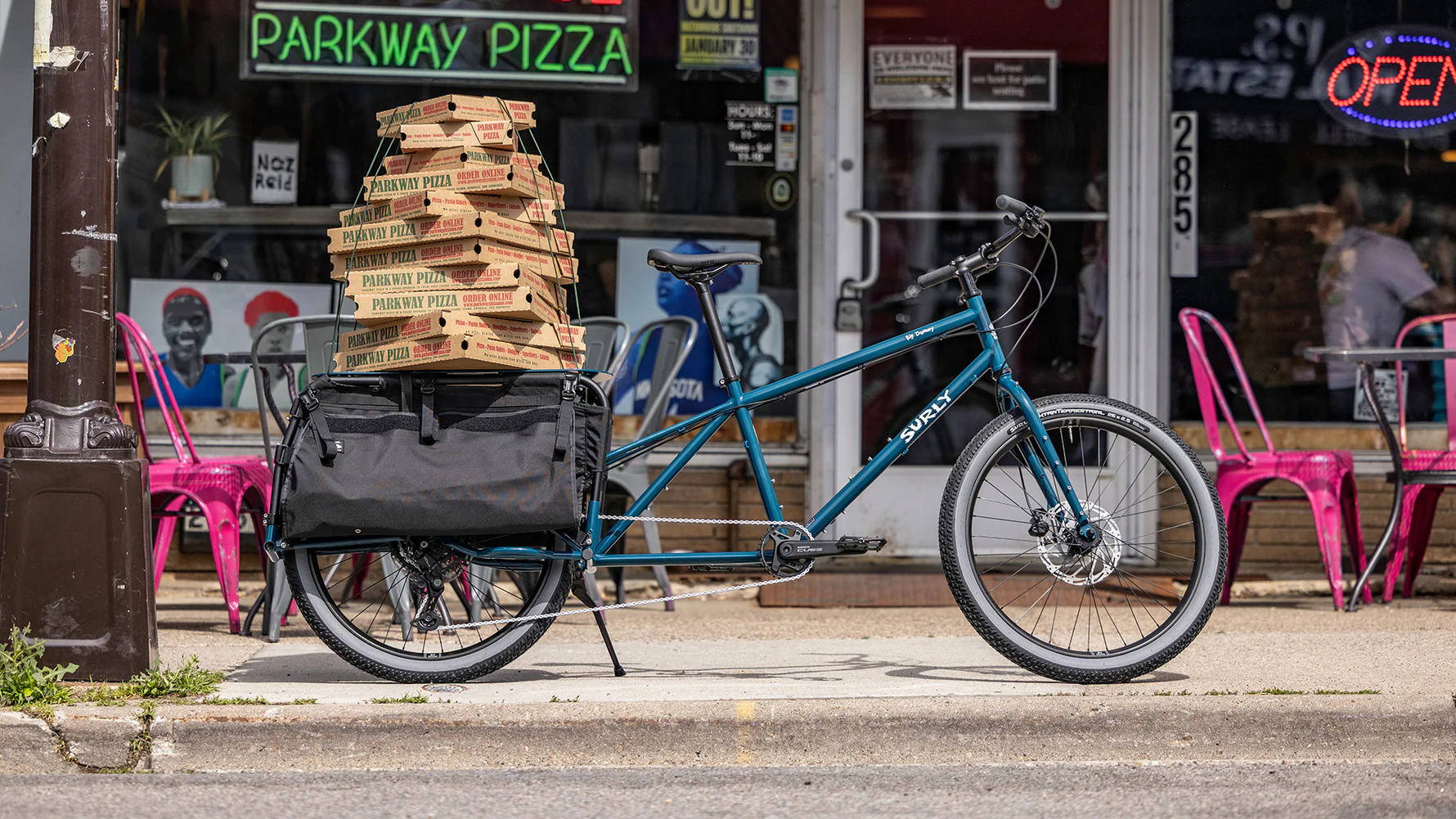

Big Dummy is Surly's analog longtail cargo bike meant to make you rethink how you carry all your crap. Since 2008, Big Dummy has helped families cut their car dependency and business owners cut their carbon footprint; it’s helped friends move and hauled the pizza to the party. Saddle this beast up with a month’s worth of groceries, lumber from the hardware store, your tiny humanoids, or anything else under the 400 lb rider + cargo weight limit. Even if you don’t have a heavy load, there’s freedom in just chucking everything you need for the day into the Dummy Bags and knowing you can pick up any #GroundScore you find along the way — pretty smart if you ask us.

• Single-piece frame increases stiffness and decreases torsional flex

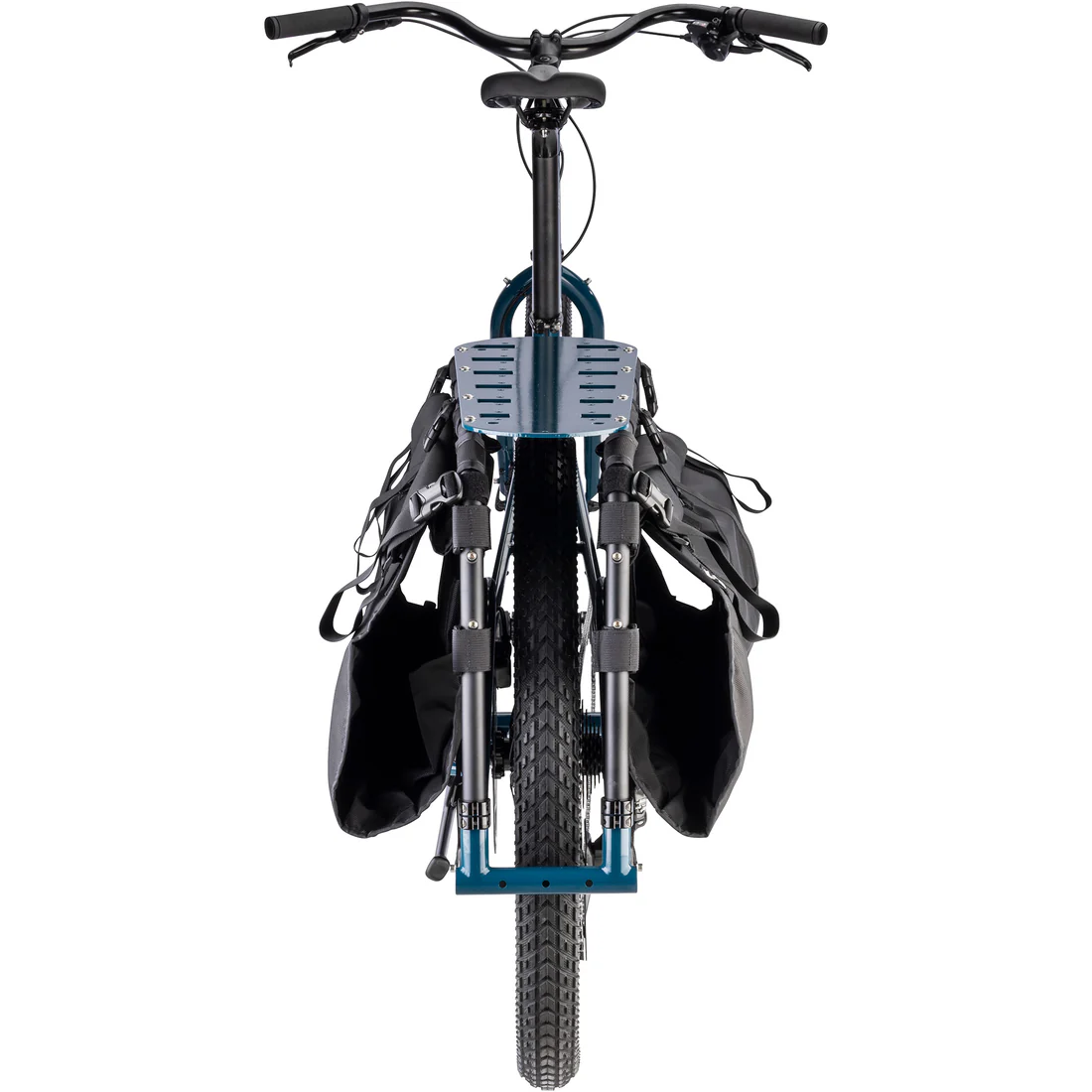

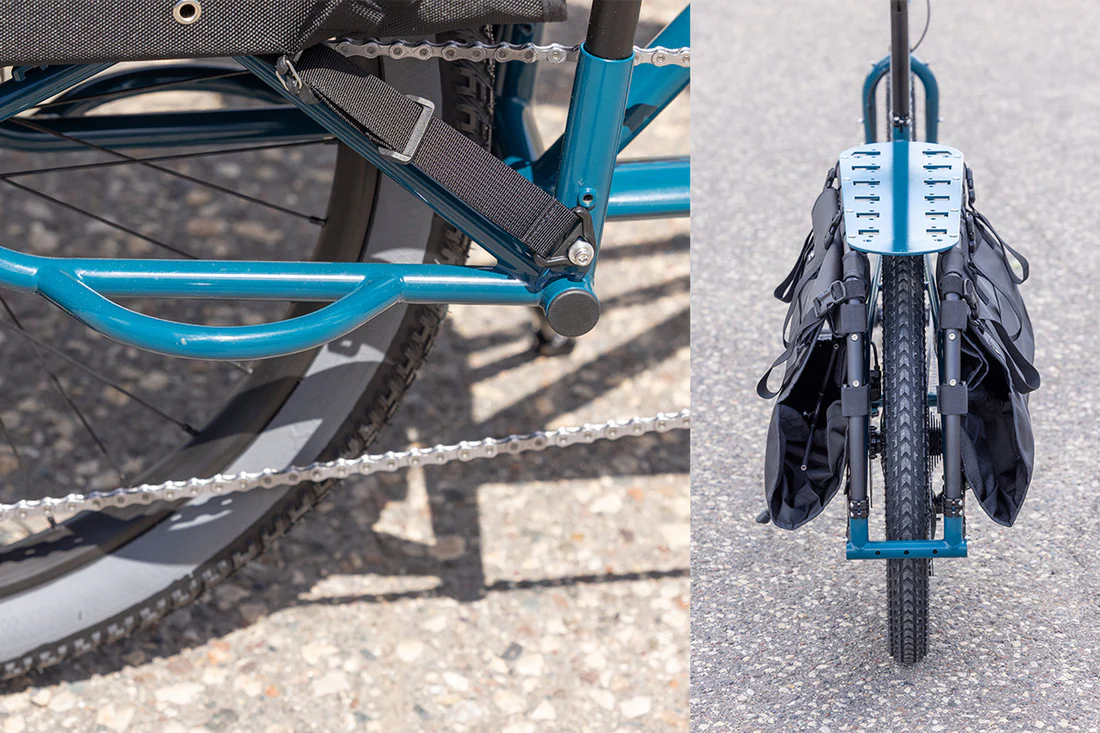

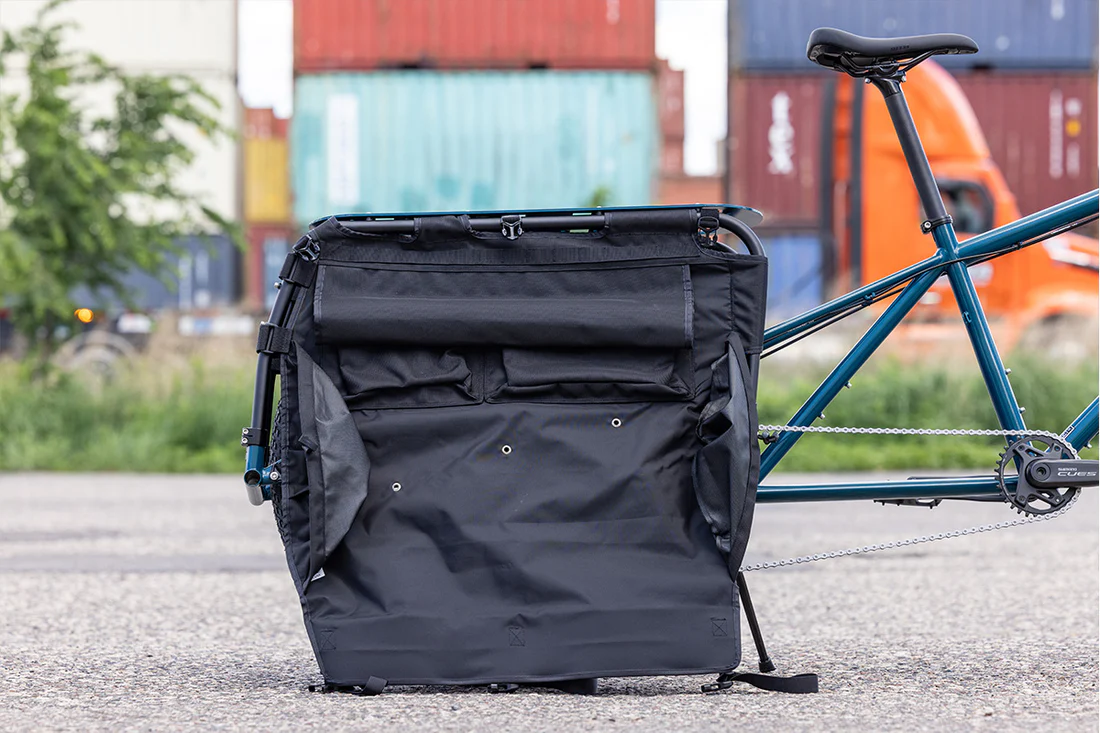

• Includes paint-matched Dummy Deck with Dummy Rails, Dummy Rail Collars, and Big Dummy Bags (version 2.0)
• Compatible with human cargo with the use of Dummy Rail Collars
• Vertical dropouts with fender eyelets
• Clearance for 26 x 2.5" tires with fenders
• 400 lb combined rider and cargo weight limit
• Three standard bottle mounts and one Three-Pack mount in frame (two bottle mounts on SM)
• Equipped with center-mount kickstand made of high-strength alloy
• Rohloff compatible

Specs

• Rear Axle QR x 135mm
• Brake Type Disc
• TT (Effective) 620
• Fork Type Rigid
• Fork Material Steel
• Frame Material Steel
• Frame Type Rigid
• Front Axle QR x 100mm
• Color Twilight Zone
• Mfg Size Medium
• Platform Big Dummy
• Wheel Size 26"
• Defined Color Blue

Build Kit

Frameset

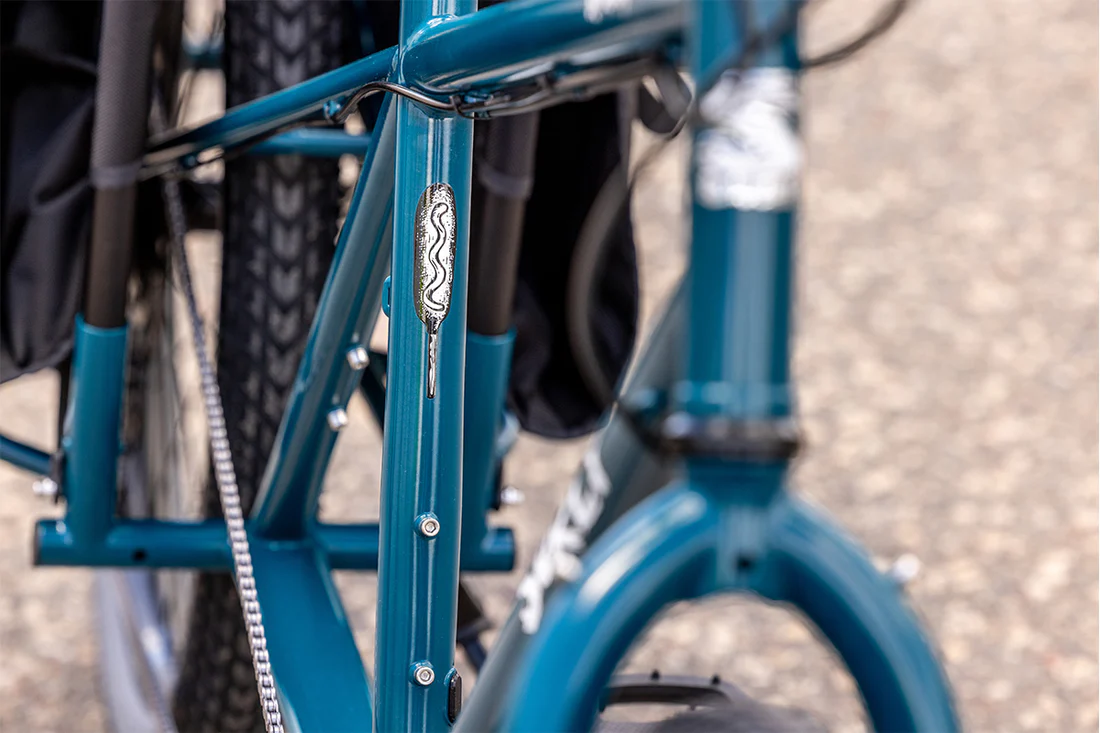

• Frame: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded
• Color: Twilight Zone
• Fork: Surly Cocktail Fork - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Components

• Headset: FSA Orbit MX
• Seatpost Clamp: Surly Stainless 33.1mm
• Seatpost: Kalloy SP-DC2
• Stem: Kalloy AS007N
• Grips/Bar Tape: Velo Black
• Saddle: WTB Rocket Fusion Medium

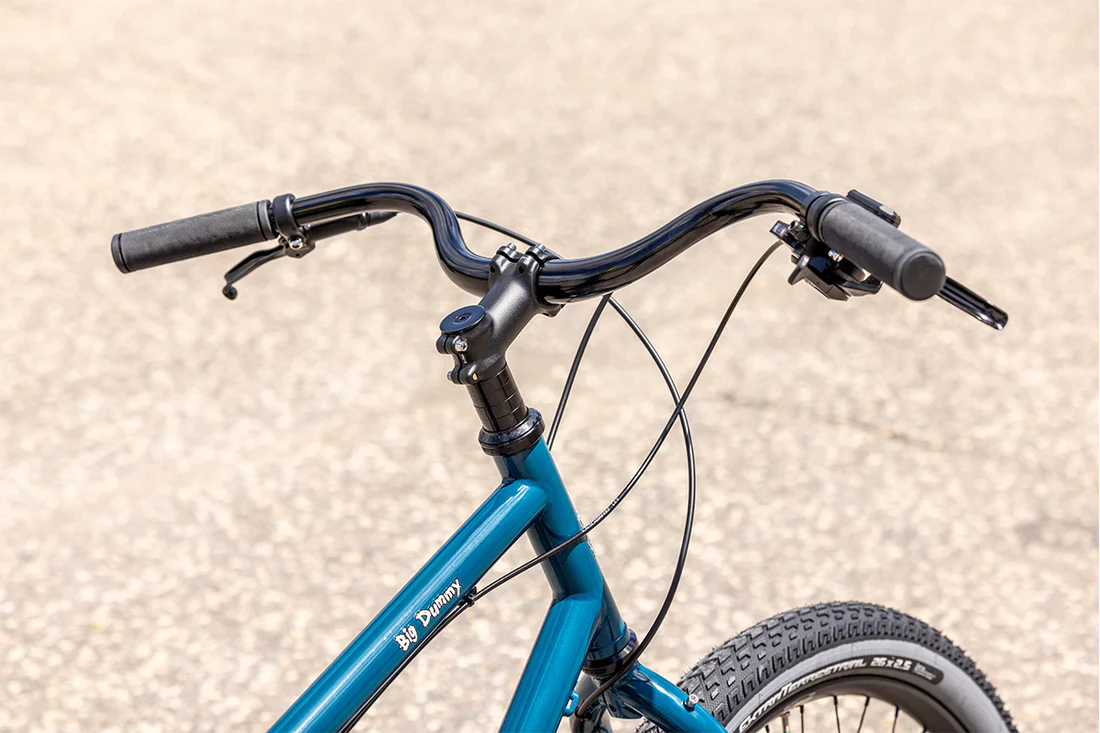

• Handlebar: Surly Terminal Bar

Drivetrain

• Front Derailleur: N/A
• Rear Derailleur: Shimano CUES U4000 GS
• Cassette: Shimano CUES LG300, 11-46t, 9-speed
• Chain: KMC XGlide EPT Anti-Rust
• Crankset: Shimano CUES U6000, 32t
• Shifter: Shimano CUES U4000
• Brake Levers: Tektro HD-M3120
• Brake Calipers: Tektro HD-M3120, 2 piston
• Bottom Bracket: Shimano MT501, BSA
• Rotors: Tektro (6-bolt, 203mm front and rear)
• Gross Payload: 400 lb combined rider and cargo weight limit

Wheels

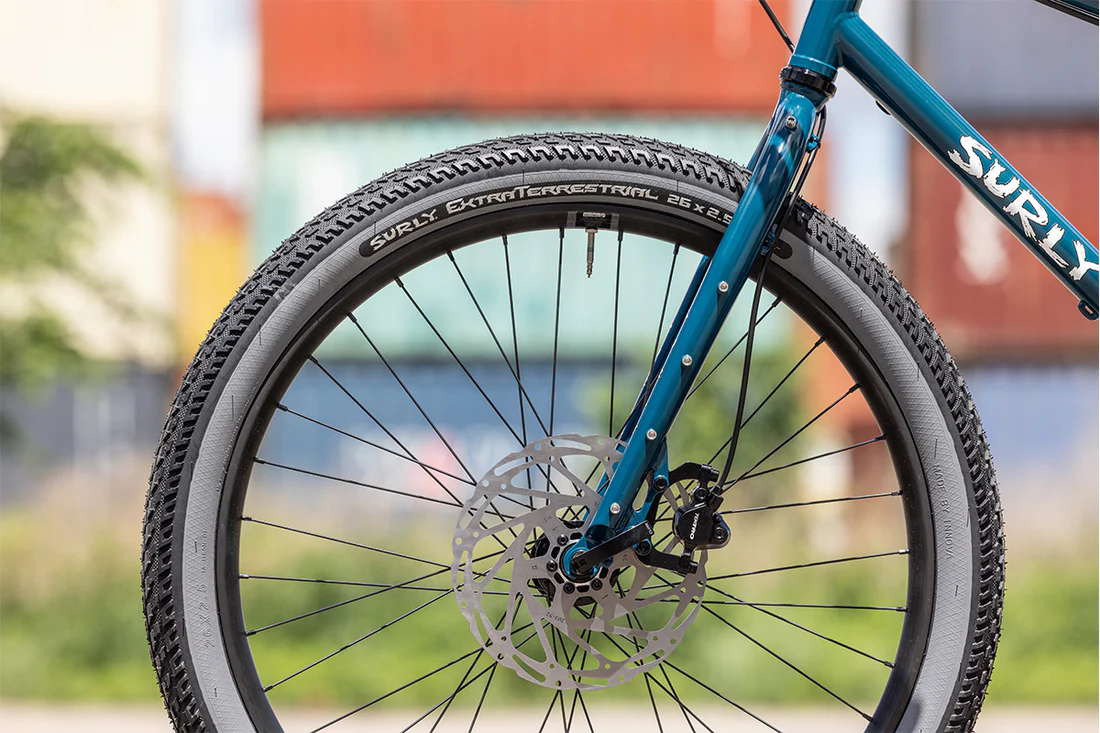

• Front Tire: Surly ExtraTerrestrial 26 x 2.5", 60 TPI, tubeless-ready
• Rear Tire: Surly ExtraTerrestrial 26 x 2.5", 60 TPI, tubeless-ready
• Front Hub: Novatec QR x 100mm
• Rear Hub: Novatec QR x 135mm
• Spoke: DT Swiss Champion
• Rim: WTB ST Tough i30mm TCS 2.0, 26", 36h

Weight

• Complete Bike: 45 lb 14 oz with rack and bags (MD)

*Specifications are subject to change without notice
