White Industries

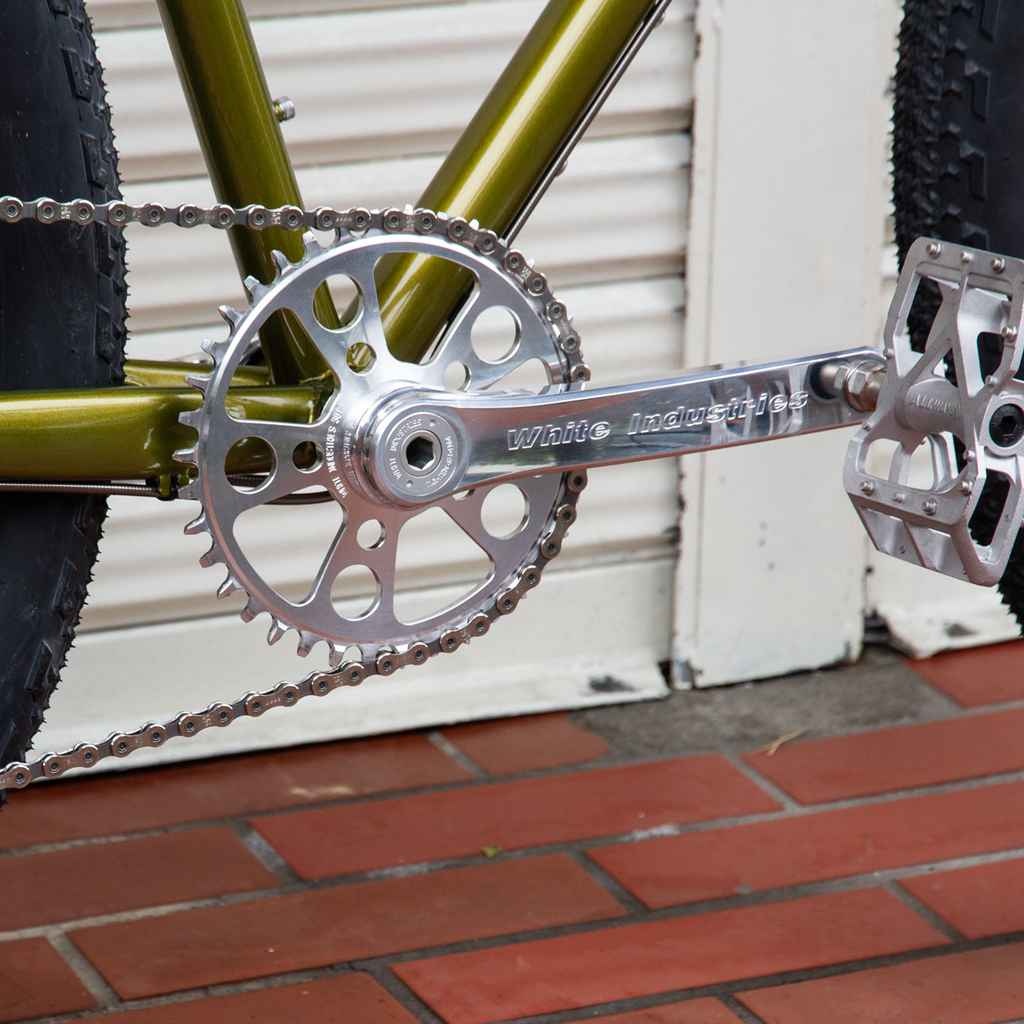

White Industries M30 Crankset 170mm - Silver (Chainring not included)

$569.95
In stock (1)

The best crankset from White Industries, upgrade your bike with the Bike and Brew, because you deserve the best. Treat yo self.

Description

The M30 is part of our 30mm spindle line of cranks which also includes the A30, R30 and G30 models. The “M” stands for mountain and the “30” is for the 30mm spindle.  The best way to describe this model is, “It’s a mountain bike crank”.  Simple.  Check out the table below and compare the specs of all four crank combinations to help decide which model would best suit your needs.

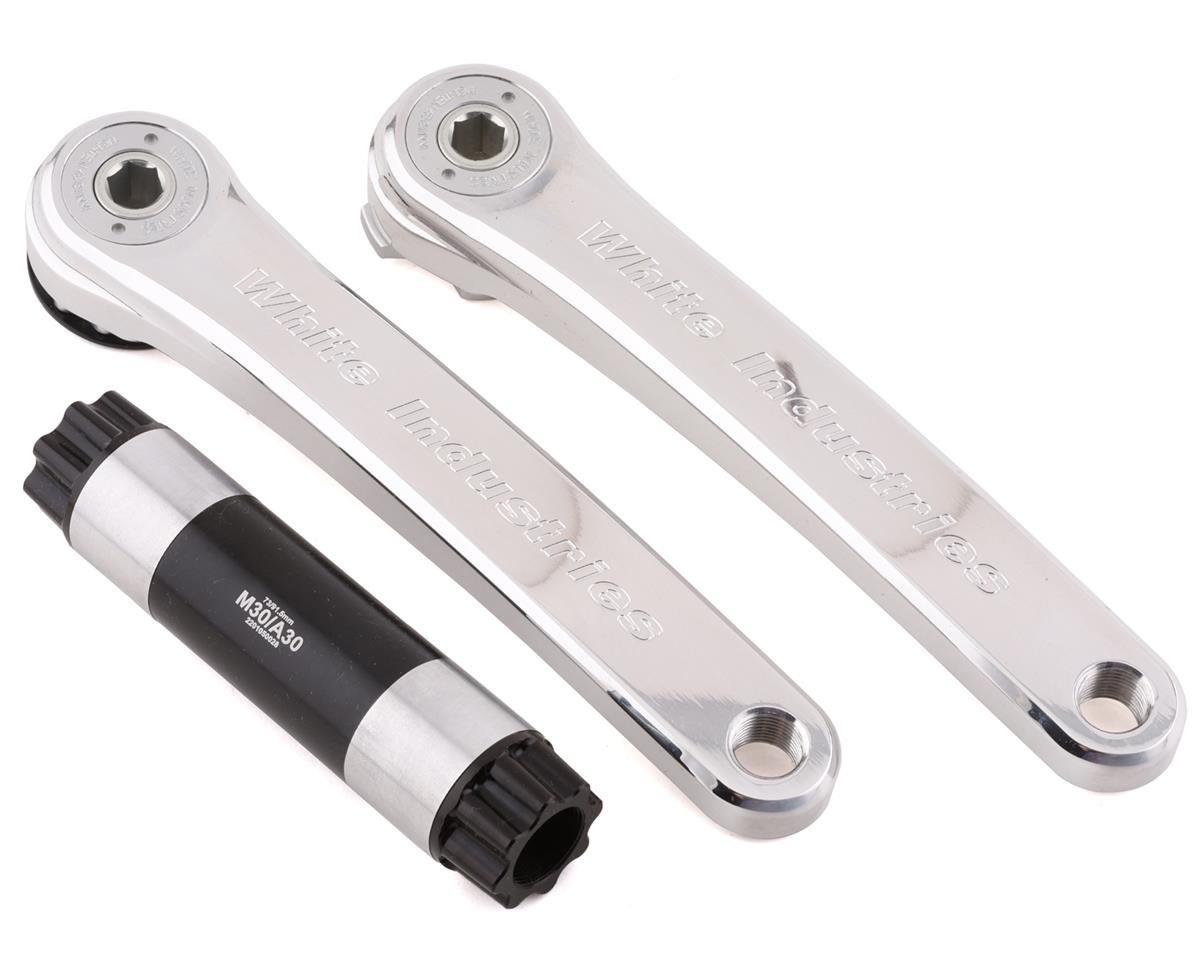

Note: Spindle, crank bolts, extractors, adjusting collar, and chairing lockring included.  Chainrings and bottom bracket sold separately.

Features

  • Available in black anodize or polished silver
  • Extractor caps available in:
    • Anodized aluminum (black, blue, gold, pink, purple, red, and silver/clear)
    • Polished bronze
  • Lengths available:
    • 165mm, 170mm, 172.5mm, 175mm, and 180mm
  • Compatible White Industries chainrings:
    • TSR 1X/singlespeed
      • Compatible with 8/9/10/11/12 and 12 flat-top chains
        • Shimano 12 speed chains must use a SRAM Eagle 12-speed PowerLock connector
    • TSR Boost 1X/singlespeed
      • Compatible with 8/9/10/11/12 and 12 flat-top chains
        • Shimano 12 speed chains must use a SRAM Eagle 12-speed PowerLock connector
    • VBC 2X
      • Compatible with 9/10/11 speed chains and derailleurs (12 speed are too narrow)
        • Campy and SRAM derailleurs not recommended
        • Shimano mountain 9/10/11 speed derailleurs are best with these rings on this crank
  • Also compatible with Wolf Tooth “CAMO Direct Mount Spider For White Industries”
  • 5 different White Industries 30mm bottom bracket options
  • All 30mm cranks and spindles are made from U.S. sourced 2024-T365 aluminum

Specs

  • Designed around a 96mm OBW (Outer Bearing Width)
    • This is the allowable outside-to-outside measurement of your BB bearings (with seals) when they are mounted to your frame.  The bearing preload collar on the crank is adjustable and can accommodate slightly wider or narrower widths (+/- 1mm) than the target number.
  • Designed to fit 68mm/73mm or 86mm/92mm bottom bracket shells
    • 2x 2.5mm cup or spindle spacers needed on 68mm or 86mm shells
      • Part #BB30KIT includes both types of spacers
  • See “MARG30 Crank and Bottom Bracket Compatibility Chart” document below for BB/spacer info
  • Weight: 575g (175mm length w/spindle)
  • Q factor: 176mm
  • Chainlines:

1x standard TSR ring

 (3mm offset, facing inward)

1x Boost TSR ring



 (0mm offset/flat)

1x standard TSR ring



 (flipped outward for Rohloff or Super Boost)

2x VBC rings

 (measured between the 2 rings)

49mm

52mm 55mm 47.5mm

Tools

  • Crank arm mounting bolts
    • Torque wrench (min 40 ft lbs or 54 Nm)
    • 10mm hex bit socket
  • Chainring lockring
    • Park BBT-22 or Shimano BBT-32
  • Bearing preload collar
    • 1.5mm hex key
  • Extractor cap
    • Park SPA-2 pin spanner with .090”/2.3mm pins (this is the red one)

Torque

  • Chainring lockring: 30 ft lbs (40 Nm)
  • Crank arms: 35-40 ft lbs (48-54 Nm)
    • We recommend retorquing arms after the first ride
  • Bearing preload collar bolt: ¼ turn past snug (more may crack the collar)
  • Extractor caps: As tight as feels comfortable without the pin spanner slipping out of the holes



M30/A30/R30/G30 Crank Comparison Chart

  Mountain



M30

Adventure



A30

Road



R30

Gravel

G30

Crank arm

M30



 Mountain arms

R30



Road arms

R30



Road arms

M30

Mountain arms

Spindle

M30



Mountain spindle

M30



Mountain spindle

R30



Road spindle

R30

Road spindle

1x chainline

(3mm offset ring, facing inward)

49mm 49mm 46.5mm

46.5mm

1x Boost chainline

 (omm offset/flat ring)

52mm 52mm 49.5mm

49.5mm

1x chainline

 (3mm offset flipped outward)

*55mm *55mm 52.5mm

52.5mm

2x chainline

(measured between the 2 rings)

47.5mm 47.5mm 45mm

45mm

Q factor

176mm 163.5mm 158.5mm

171mm

Width between inside of arms

(for chainstay clearance)

149.6mm 137mm 132mm

144.6mm

Weight

575g



(175mm w/spindle)

565g



(170mm w/spindle)

560g



(170mm w/spindle)

570g

(175mm w/spindle)

BB shell widths

68mm/73mm



 or

86mm/92mm

68mm/73mm



 or

86mm/92mm

68mm or 86mm

68mm or 86mm

**OBW

 (outer bearing width)

96mm



(+/- 1mm)

96mm



(+/- 1mm)

91mm



(+/- 1mm)

91mm

(+/- 1mm)

*55mm chainline for Rohloff and Super Boost hubs

**This is the allowable outside-to-outside measurement of your BB bearings (with seals) when they are mounted to your frame.  The bearing preload collar on the crank is adjustable and can accommodate slightly wider or narrower widths (+/- 1mm) than the target number.
